Lowrance Elite FS 12 Without Transducer for SALE
$ 1,599.00
Brand: LowranceBuy the Lowrance Elite FS 12 Without Transducer, featuring a 12-inch touchscreen, C-MAP charts and ActiveTarget 2 and Active Imaging support.

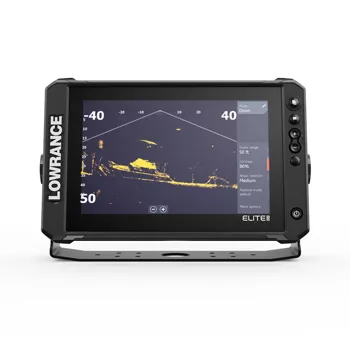

Lowrance Elite FS 12 Without Transducer
The Lowrance Elite FS 12 is a 12-inch fishfinder and chartplotter with a bright IPS multitouch display, preloaded C-MAP DISCOVER OnBoard charts and support for ActiveTarget 2 Live Sonar, Active Imaging 3-in-1 and Active Imaging HD. This model does not include a transducer, allowing you to select the sonar system that best suits your boat and fishing style.
Key Features
- Large 12-inch IPS multitouch display
- 1280 × 800 screen resolution
- More than 1,200 nits of brightness
- ActiveTarget 2 Live Sonar ready
- Active Imaging 3-in-1 transducer ready
- Integrated CHIRP and Broadband sonar
- Active Imaging HD ready with optional S3100 module
- FishReveal support with compatible transducer
- Preloaded C-MAP DISCOVER OnBoard charts
- C-MAP Genesis Live custom mapping
- Integrated 10 Hz GPS receiver
- Ethernet and NMEA 2000 networking
- Built-in Wi-Fi and Bluetooth
- One programmable quick-access key
- IPX7 waterproof construction
- Gimbal or flush-mount installation
- Transducer sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lowrance |
| Model | Elite FS 12 |
| Manufacturer Part Number | 000-16431-001 |
| GTIN/UPC | 9420064137466 |
| Display Size | 12 inches |
| Display Type | IPS multitouch |
| Display Resolution | 1280 × 800 pixels |
| Screen Brightness | More than 1,200 nits |
| Viewing Angles | 85° top/bottom and 85° left/right |
| Transducer Included | No |
| Integrated Sonar | CHIRP, Broadband, Active Imaging SideScan and DownScan |
| Live Sonar Compatibility | ActiveTarget and ActiveTarget 2, sold separately |
| Active Imaging HD | Requires optional S3100 sonar module |
| Included Cartography | C-MAP DISCOVER OnBoard |
| Custom Mapping | C-MAP Genesis Live |
| GPS | Internal 10 Hz GPS |
| Waypoints | Up to 3,000 |
| Routes | Up to 100 |
| Trails | Up to 100, with 10,000 points per trail |
| Card Reader | 1 × microSD, up to 32GB |
| Ethernet | 1 × 100Mbit port |
| NMEA 2000 | 1 × Micro-C connection |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with Classic support |
| Supply Voltage | 12V DC, 10.8–17V DC |
| Maximum Power Draw | 2.5A at 13.8V DC |
| Recommended Fuse | 3A |
| Waterproof Rating | IPX7 with card door closed |
| Operating Temperature | 5°F–131°F / -15°C–55°C |
| Display Weight | 5.1 lb / 2.3kg |
| Mounting | Gimbal bracket or flush mount |
| Warranty | Two years, with additional upgrade options |
Package Includes
- Lowrance Elite FS 12 display
- Protective sun cover
- Gimbal bracket and knobs
- Power cable
- Fuse and fuse holder
- Corner trim clips
