Lowrance Elite FS 10 with 3-1 Active Imaging Transducer for SALE
$ 1,365.00
Brand: LowranceShop the Lowrance Elite FS 10 with 3-1 Active Imaging Transducer, featuring CHIRP, SideScan, DownScan, C-MAP charts and ActiveTarget 2 compatibility.

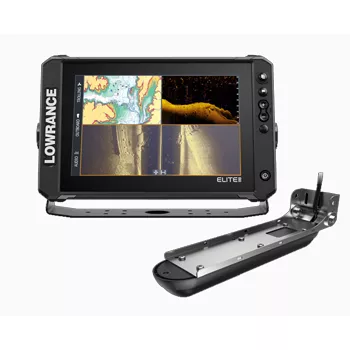

Lowrance Elite FS 10 with 3-1 Active Imaging Transducer
The Lowrance Elite FS 10 combines a bright 10-inch multitouch display with an included Active Imaging 3-in-1 transducer. Get CHIRP sonar, SideScan, DownScan Imaging and FishReveal, plus C-MAP DISCOVER OnBoard charts, Genesis Live mapping and compatibility with optional ActiveTarget 2 Live Sonar.
Key Features
- Bright 10-inch IPS multitouch display
- 1280 × 800-pixel screen resolution
- More than 1,200 nits of brightness
- Active Imaging 3-in-1 transducer included
- CHIRP sonar, SideScan and DownScan Imaging
- FishReveal target-view technology
- Compatible with optional ActiveTarget 2 Live Sonar
- Preloaded C-MAP DISCOVER OnBoard charts
- Genesis Live real-time mapping
- Integrated 10 Hz GPS receiver
- Ethernet and NMEA 2000 connectivity
- Built-in Wi-Fi and Bluetooth
- Touchscreen control of compatible trolling motors and anchors
- One programmable quick-access key
- IPX7 waterproof rating
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lowrance |
| Model | Elite FS 10 |
| Manufacturer Part Number | 000-16430-001 |
| GTIN/UPC | 9420064137459 |
| Display Size | 10 inches |
| Display Type | SolarMAX IPS multitouch |
| Resolution | 1280 × 800 pixels |
| Brightness | More than 1,200 nits |
| Included Transducer | Active Imaging 3-in-1 |
| Sonar | CHIRP, SideScan and DownScan Imaging |
| Sonar Feature | FishReveal |
| Live Sonar Compatibility | ActiveTarget and ActiveTarget 2 systems, sold separately |
| Preloaded Mapping | C-MAP DISCOVER OnBoard, US/Canada configuration |
| Custom Mapping | Genesis Live |
| GPS | Integrated 10 Hz receiver |
| Waypoints | Up to 3,000 |
| Routes | Up to 100 |
| Trails | Up to 100 |
| Card Slot | 1 × microSD, up to 32GB |
| Ethernet | 1 × 100Mbit port |
| NMEA 2000 | 1 × Micro-C connection |
| Wireless | Wi-Fi 802.11 b/g/n and Bluetooth 4.0 |
| Power Supply | 12V DC, 10.8–17V operating range |
| Maximum Current Draw | 2.5A at 13.8V |
| Recommended Fuse | 3A |
| Waterproof Rating | IPX7 with card door closed |
| Display Weight | 3.66 lb / 1.66 kg |
| Mounting Options | Gimbal bracket or flush mounting |
| Warranty | Two-year Lowrance limited warranty |
Package Includes
- Lowrance Elite FS 10 display
- Active Imaging 3-in-1 transducer
- Transducer mounting hardware
- Gimbal mounting bracket
- Power cable and fuse
- Protective sun cover
- Display mounting hardware
- Documentation
