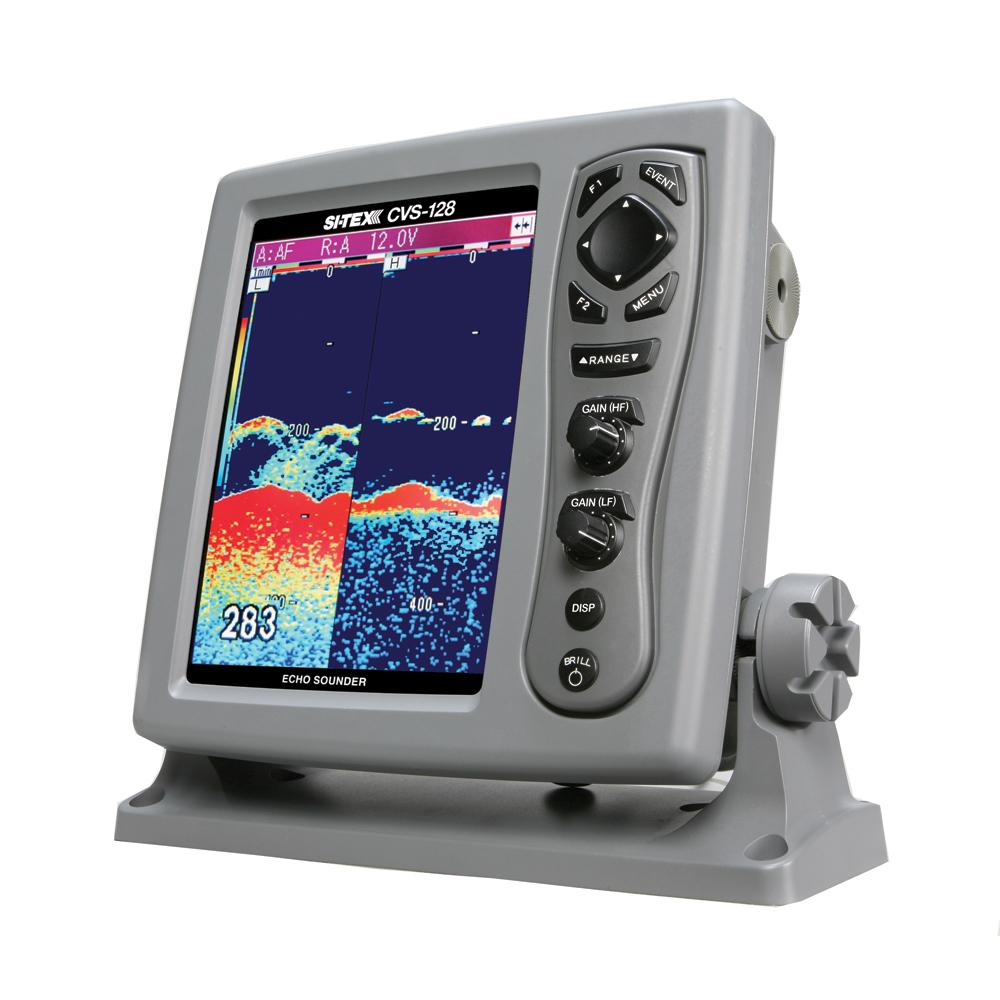

Si-Tex CVS-128 Digital Echo Sounder

The Si-Tex CVS-128 Digital Echo Sounder delivers professional-grade fish detection and bottom imaging for commercial fishing boats, sportfishing vessels, and serious offshore anglers. Its 8.4-inch daylight-viewable color LCD combines a 640 × 480-pixel resolution with an anti-reflective coating for clear viewing in bright marine conditions.

Dual-frequency 50/200kHz operation provides versatile performance across shallow and deep water. The 200kHz frequency offers detailed target separation in shallower water, while 50kHz provides wider coverage and better deep-water penetration. Depending on the installed transducer, the sounder can operate at 600W or 1kW, with selectable depth ranges extending to 3,600 feet.

Built-in digital signal processing filters unwanted noise and clutter, creating a cleaner presentation of fish, bait schools, bottom structure, and the seafloor. Automatic Fishing and Cruising modes adjust gain, range, and shift settings to produce a reliable image with less manual adjustment.

The exclusive Sona-Tone™ function uses different sounds to identify individual fish and schools of fish, allowing the operator to monitor activity without constantly watching the screen. A high-speed transmission rate of up to 5,000 pulses per minute improves shallow-water detection and target definition.

Multiple viewing options include high frequency, low frequency, dual-frequency split screen, bottom lock, bottom discrimination, bottom zoom, partial zoom, and a real-time multicolor A-Scope. The CVS-128 can also save up to ten sonar screen images in its internal memory for later review.

When connected to a compatible GPS source, the Fishing Hot Spot function helps guide the vessel back to a location associated with a stored sonar image. Standard NMEA 0183 connectivity enables compatible navigation, speed, temperature, and position data to be exchanged with other onboard equipment.

The rugged IPX5-rated display can be bracket-mounted overhead or flush-mounted at the helm. An RGB output also allows the sonar image to be shown on an optional external VGA monitor. Specifications are based on the official Si-Tex CVS-128 product page and manufacturer’s detailed CVS-128 specifications.

Key Features

• 8.4-inch daylight-viewable TFT color LCD
• 640 × 480-pixel display resolution
• Anti-reflective screen coating
• Selectable 8, 16, or 64 color levels
• Dual-frequency 50/200kHz operation
• Selectable 600W or 1kW output
• Maximum depth range of 3,600 feet
• Digital signal processing for reduced noise and clutter
• High-speed transmission up to 5,000 pulses per minute
• Automatic Fishing and Cruising modes
• Automatic gain, range, and shift adjustment
• Sona-Tone audible fish identification
• High- and low-frequency gain controls
• Dual-frequency split-screen viewing
• Bottom lock and bottom discrimination
• Bottom, partial, and standard zoom modes
• Real-time multicolor A-Scope
• Stores up to ten sonar screen images
• Fishing Hot Spot navigation with compatible GPS input
• Audio and visual alarms
• NMEA 0183 data connectivity
• RGB output for an optional external monitor
• Built-in simulator
• IPX5-rated display enclosure
• Bracket or flush-mount installation

Technical Specifications

Display and Zoom Modes

• High-frequency view
• Low-frequency view
• Dual-frequency view
• Split-screen view
• Bottom Lock
• Bottom Discrimination
• Bottom Zoom
• Partial Zoom
• Navigation display
• Real-time A-Scope

Available Alarms

• Fish-school alarm
• Bottom alarm
• Depth alarm
• Water-temperature alarm*
• Vessel-speed alarm*
• Arrival alarm*
• Cross-track error alarm*
• Power alarm

*Requires compatible external sensor or navigation data.

What’s Included

• Si-Tex CVS-128 display unit
• Protective hard cover
• Mounting bracket
• DC power cable
• Fuses
• Operation manual

Important: The CVS-128 is normally sold without a transducer. A compatible 50/200kHz transducer must be selected separately according to the required power, mounting style, hull material, and vessel application.
