Simrad GO7 XSR with CMAP Discover Charts and Active Imaging Transducer for SALE
$ 580.00
Brand: SimradBuy the Simrad GO7 XSR with CMAP Discover Charts and Active Imaging Transducer for CHIRP, SideScan, DownScan and GPS navigation.

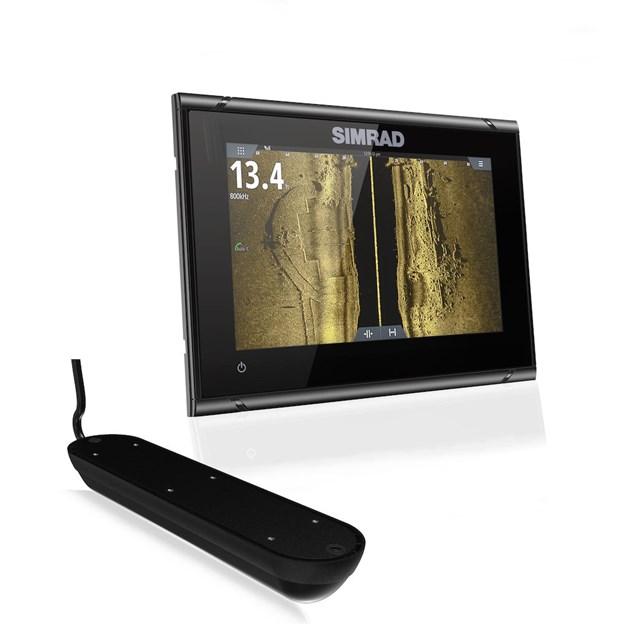

Simrad GO7 XSR with CMAP Discover Charts and Active Imaging Transducer
The Simrad GO7 XSR combines a bright 7-inch touchscreen chartplotter with C-MAP DISCOVER charts and an Active Imaging 3-in-1 transducer. CHIRP sonar, SideScan, DownScan Imaging, FishReveal, built-in 10Hz GPS and NMEA 2000 connectivity make it an excellent navigation and fish-finding solution for sportboats, dayboats and center consoles.
Key Features
- Bright 7-inch widescreen touchscreen
- 800 × 480 display resolution
- 1,200-nit sunlight-readable brightness
- C-MAP DISCOVER chart card included
- Active Imaging 3-in-1 transducer included
- CHIRP sonar, SideScan and DownScan Imaging
- FishReveal Smart Target View
- Built-in Broadband and CHIRP echosounder
- Integrated 32-channel, 10Hz GPS receiver
- Compatible with optional Simrad HALO radar
- NMEA 2000 vessel integration
- Built-in Wi-Fi and Bluetooth
- Wireless display mirroring
- Single microSD card slot
- Bracket or panel-mount installation
- IPX6 and IPX7 waterproof ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 7 inches |
| Display type | Optically bonded color touchscreen |
| Resolution | 800 × 480 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 80° top, bottom, left and right |
| User interface | Multi-touch touchscreen |
| Included charts | C-MAP DISCOVER |
| Included transducer | Active Imaging 3-in-1 |
| Transducer mounting | Transom mount |
| Sonar functions | CHIRP, SideScan and DownScan Imaging |
| Sonar frequencies | 83/200kHz and 455/800kHz |
| FishReveal | Yes |
| ForwardScan support | Yes; optional transducer required |
| Sonar connection | 1 × nine-pin xSonic |
| GPS receiver | Internal 32-channel GNSS |
| GPS update rate | 10Hz |
| Position accuracy | Approximately 3m / 9.8ft |
| Waypoints | Up to 6,000 |
| Routes | Up to 500; 100 points per route |
| Tracks | 50; up to 12,000 points each |
| Radar connection | 1 × five-pin Ethernet connection |
| NMEA 2000 | 1 × Micro-C port |
| NMEA 0183 | Export through Wi-Fi |
| Wireless | Integrated Wi-Fi and Bluetooth |
| Memory-card slot | 1 × microSD |
| Video input | None |
| Supply voltage | 10–17V DC |
| Typical power consumption | 12W |
| Maximum power consumption | 20W |
| Recommended fuse | 3A |
| Dimensions without bracket | 197 × 141 × 82.7mm |
| Dimensions without bracket | Approximately 7.76 × 5.55 × 3.26in |
| Display weight | 1.32kg / 2.91lb |
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -15°C to 55°C / 5°F to 131°F |
| Mounting options | Bracket or panel mount |
| Warranty | Two-year limited warranty |
What’s in the Box?
- Simrad GO7 XSR 7-inch chartplotter fishfinder
- Active Imaging 3-in-1 transom-mount transducer
- C-MAP DISCOVER chart card
- GO7 gimbal mounting bracket
- GO7 XSR dash-mounting kit
- GO7 XSR edge bezel
- Protective sun cover
- Four-pin power cable
- Transducer mounting hardware
- Installation documentation
Not included: Radar, NMEA 2000 backbone components, autopilot equipment and other optional network accessories.
