Simrad GO7 XSR with Discover Charts and HDI Transducer for SALE
$ 600.00
Brand: SimradBuy the Simrad GO7 XSR with Discover Charts and HDI Transducer for GPS navigation, CHIRP sonar, DownScan Imaging and FishReveal.

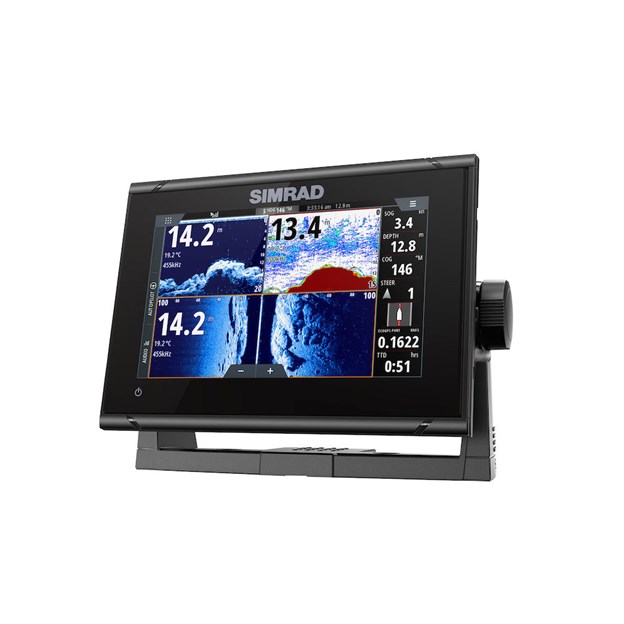

Simrad GO7 XSR with Discover Charts and HDI Transducer
The Simrad GO7 XSR combines a bright 7-inch touchscreen, C-MAP DISCOVER charts and an included HDI Skimmer transducer. Enjoy accurate GPS navigation, CHIRP sonar, DownScan Imaging and FishReveal technology, plus support for compatible Simrad radar, autopilot and NMEA 2000 equipment.
Key Features
- Seven-inch widescreen touchscreen display
- Bright 1,200-nit LED backlight
- 800 × 480-pixel screen resolution
- C-MAP DISCOVER US and Canada chart card
- HDI Skimmer transom-mount transducer
- Medium/High CHIRP sonar at 83/200kHz
- DownScan Imaging at 455/800kHz
- FishReveal target display
- Built-in 10Hz GPS receiver
- Customizable home screen and split-screen layouts
- Compatible with optional Active Imaging transducers
- Compatible with Simrad HALO and Broadband radar
- Simrad autopilot control
- SteadySteer support with compatible equipment
- NMEA 2000 connectivity
- Internal Wi-Fi and Bluetooth
- One microSD memory-card slot
- Bracket or panel-mount installation
- IPX6 and IPX7 waterproof ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 7 inches |
| Display type | Widescreen multi-touch LCD |
| Resolution | 800 × 480 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 80° top/bottom and left/right |
| Included charts | C-MAP DISCOVER US and Canada |
| GPS | Internal 10Hz GPS/GLONASS |
| Included transducer | HDI Skimmer, transom mount |
| CHIRP frequencies | 83/200kHz |
| DownScan frequencies | 455/800kHz |
| Temperature sensor | Included in transducer |
| SideScan | Requires an optional compatible transducer |
| Ethernet | One five-pin Ethernet port |
| NMEA 2000 | One Micro-C connection |
| Wireless | Internal Wi-Fi and Bluetooth |
| Memory-card slot | One microSD |
| Waypoints | Up to 6,000 |
| Routes | Up to 500 |
| Tracks | Up to 50 |
| Track points | Up to 12,000 per track |
| Power supply | 10–17V DC |
| Typical consumption | 12W |
| Maximum consumption | 20W |
| Recommended fuse | 3A |
| Waterproof rating | IPX6/IPX7 |
| Dimensions | 7.56 × 5.55 × 3.26 inches |
| Weight | 2.91 lb |
| Mounting | Bracket or panel mount |
| Warranty | Two years |
What’s Included
- Simrad GO7 XSR chartplotter fishfinder
- Medium/High HDI Skimmer transducer
- C-MAP DISCOVER chart card
- GO7 U-bracket
- Bracket-mount sun cover
- GO7 XSR dash-mount kit
- GO7 XSR bezel
- Four-pin power cable
- Installation documentation
Not included: Radar, autopilot components, NMEA 2000 starter kit or Active Imaging transducer.
