Simrad NSS 4 10 inch Chartplotter Fishfinder with US C-MAP Charts for SALE
$ 1,890.00
Brand: SimradBuy the Simrad NSS 4 10 inch Chartplotter Fishfinder with US C-MAP Charts with dual-channel 1kW CHIRP sonar, SolarMAX IPS display and US C-MAP DISCOVER X charts.

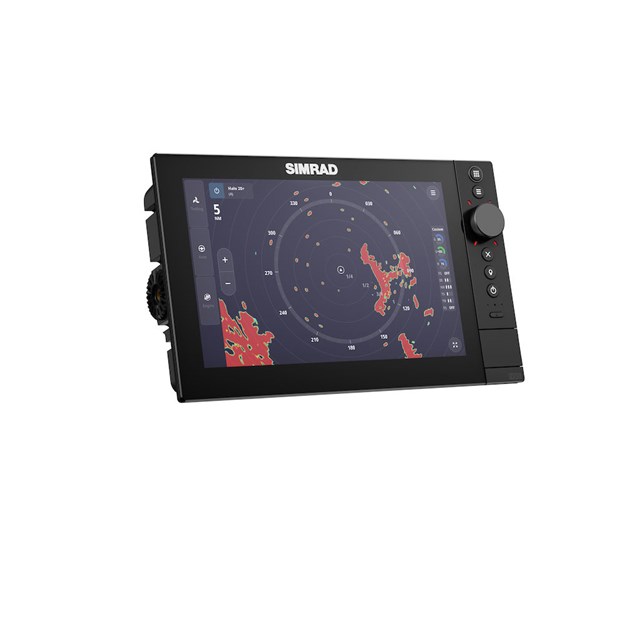

Simrad NSS 4 10 inch Chartplotter Fishfinder with US C-MAP Charts
The Simrad NSS 4 10-inch Chartplotter Fishfinder combines a sunlight-viewable SolarMAX IPS touchscreen, hybrid controls and a powerful Qualcomm 8-core processor. It features built-in dual-channel 1kW CHIRP sonar, Active Imaging HD support, an internal 10Hz GPS and included C-MAP DISCOVER X charts for North America.
Key Features
- 10-inch SolarMAX IPS touchscreen
- 1280 × 800 display resolution
- Bright 1,200-nit sunlight-viewable screen
- Hybrid touchscreen, rotary dial and keypad controls
- Premium glass-to-edge design
- Qualcomm 8-core processor
- NEON operating system
- Built-in dual-channel 1kW CHIRP echosounder
- Two 9-pin xSonic transducer ports
- Supports Low, Medium and High CHIRP
- Supports Active Imaging and Active Imaging HD
- Compatible with S3100 and S5100 sonar modules
- C-MAP DISCOVER X North America chart card included
- Built-in 10Hz GNSS receiver
- Compatible with Simrad HALO radar and autopilot systems
- Simrad RECON, Rhodan and MotorGuide trolling-motor compatibility
- NMEA 2000 and dual Ethernet connectivity
- Two front-accessible microSD card slots
- IP camera and compatible FLIR thermal-camera support
- IPX6 and IPX7 waterproof ratings
- Bracket or rear-mount installation
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 10 inches |
| Display type | SolarMAX IPS touchscreen |
| Display resolution | 1280 × 800 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 80° horizontal and vertical |
| Processor | Qualcomm 8-core |
| User interface | Touchscreen, rotary dial and keypad |
| Built-in sonar | Dual-channel 1kW CHIRP |
| Sonar connections | Two 9-pin xSonic ports |
| Sonar compatibility | CHIRP, DownScan, SideScan and Active Imaging HD |
| Maximum sonar output | Up to 1kW RMS per compatible configuration |
| Included charts | C-MAP DISCOVER X North America |
| GPS | Internal 10Hz, 32-channel GNSS receiver |
| Position accuracy | Approximately 3 meters |
| Ethernet | One M12 Gigabit and one 5-pin Ethernet port |
| NMEA 2000 | One Micro-C port |
| Memory-card slots | Two microSD/SDHC slots |
| Waypoints | Up to 10,000 |
| Routes | Up to 125 |
| Saved tracks | Up to 75 |
| Track points | Up to 75,000 |
| Supply voltage | 12/24V DC |
| Operating voltage | 10–31.2V DC |
| Maximum power consumption | 28W |
| Recommended fuse | 5A |
| Waterproof rating | IPX6/IPX7 |
| Display dimensions | 11.33 × 6.93 × 3.13 inches |
| Dimensions with bracket | 12.43 × 7.73 × 3.13 inches |
| Weight | 3.97 lb |
| Warranty | Two years |
What’s Included
- Simrad NSS 4 10-inch multifunction display
- C-MAP DISCOVER X North America chart card
- Mounting bracket and hardware
- Rear-mount brackets
- Power cable
- Protective sun cover
- Installation documentation
Not included: Sonar transducer, NMEA 2000 network kit, radar, autopilot components and other optional accessories.
