Simrad NSS 4 12 inch Chartplotter Fishfinder with US C-MAP Charts for SALE
$ 2,700.00
Brand: SimradBuy the Simrad NSS 4 12 inch Chartplotter Fishfinder with US C-MAP Charts with C-MAP DISCOVER X charts, dual-channel 1kW CHIRP sonar and fast 8-core processing.

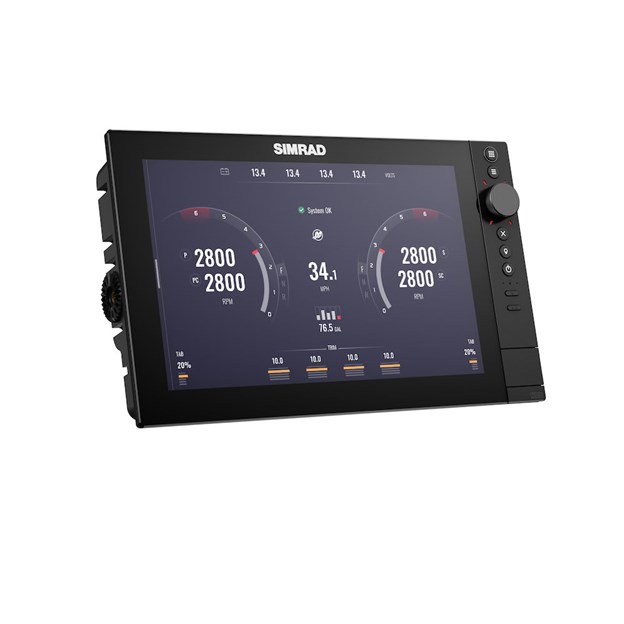

Simrad NSS 4 12 inch Chartplotter Fishfinder with US C-MAP Charts
The Simrad NSS 4 12-inch chartplotter fishfinder combines a bright SolarMAX IPS touchscreen, keypad and rotary control with a powerful Qualcomm 8-core processor. It includes C-MAP DISCOVER X North America charts and features built-in dual-channel 1kW CHIRP sonar, Active Imaging HD support, 10Hz GNSS and extensive vessel networking.
Key Features
- Bright 12-inch SolarMAX IPS touchscreen
- 1280 × 800 display resolution
- 1,200-nit sunlight-readable brightness
- Hybrid touchscreen, keypad and rotary-dial controls
- Premium glass-to-edge helm design
- Qualcomm 8-core processor
- Fast and customizable NEON operating system
- C-MAP DISCOVER X North America charts included
- Built-in dual-channel 1kW CHIRP echosounder
- Two nine-pin xSonic sonar ports
- Active Imaging and Active Imaging HD support
- Low, Medium and High CHIRP compatibility
- SideScan and DownScan support
- Built-in 32-channel, 10Hz GNSS receiver
- HALO radar and Simrad autopilot compatibility
- NMEA 2000 and dual Ethernet connectivity
- Wi-Fi 5 connectivity
- Two front-accessible microSD card slots
- USB data and video output
- IPX6 and IPX7 waterproof ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 12 inches |
| Display type | SolarMAX IPS multi-touch display |
| Display resolution | 1280 × 800 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 80° top, bottom, left and right |
| Controls | Touchscreen, keypad and rotary dial |
| Processor | Qualcomm 8-core |
| Operating system | Simrad NEON |
| Included cartography | C-MAP DISCOVER X North America |
| Supported charts | C-MAP DISCOVER X, REVEAL X, CMOR and StrikeLines |
| Sonar | Built-in dual-channel CHIRP |
| Sonar output | Up to 1kW RMS per supported connection |
| Sonar ports | 2 × nine-pin xSonic |
| Imaging support | Active Imaging, Active Imaging HD, SideScan and DownScan |
| Transducer included | No |
| GPS/GNSS | Built-in 32-channel receiver |
| Position update rate | 10Hz |
| Position accuracy | Approximately 3m / 9.8ft |
| Waypoints | Up to 10,000 |
| Saved tracks | Up to 75 |
| Track points | Up to 75,000 |
| Routes | Up to 125 |
| Ethernet | 1 × M12 Gigabit Ethernet and 1 × five-pin Ethernet |
| NMEA 2000 | 1 × Micro-C port |
| NMEA 0183 | No dedicated connection |
| Wireless | Wi-Fi 5 |
| Bluetooth | Bluetooth 4.0 hardware; currently unused |
| Memory-card slots | 2 × microSD/SDHC |
| USB | 1 × data/video-output port |
| Video | HDMI input, USB video output and compatible IP-camera support |
| Supply voltage | 10–31.2V DC; 12/24V systems |
| Maximum power consumption | 40W |
| Recommended fuse | 5A |
| Display dimensions | 338.9 × 208.4 × 84.8mm |
| Display dimensions | 13.34 × 8.20 × 3.34in |
| Dimensions with bracket | 367.8 × 232.8 × 84.8mm |
| Weight | 2.8kg / 6.17lb |
| Compass-safe distance | 65cm / 2.1ft |
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -15°C to 55°C / 5°F to 131°F |
| Mounting options | Supplied gimbal bracket or rear mount |
| Warranty | Two-year limited warranty |
What’s in the Box?
- Simrad NSS 4 12-inch multifunction display with built-in sonar
- C-MAP DISCOVER X North America chart card
- Gimbal mounting bracket and knobs
- Rear-mount dash kit
- Dash gasket
- Four-pin power cable
- Fuse holder
- Protective sun cover
- Installation documentation
- Warranty information
Not included: Sonar transducer, NMEA 2000 network components, radar, autopilot, sonar modules and trolling motor.
