Simrad NSX 3009 with Active Imaging 3-in-1 Transducer and Halo 20+ Radar

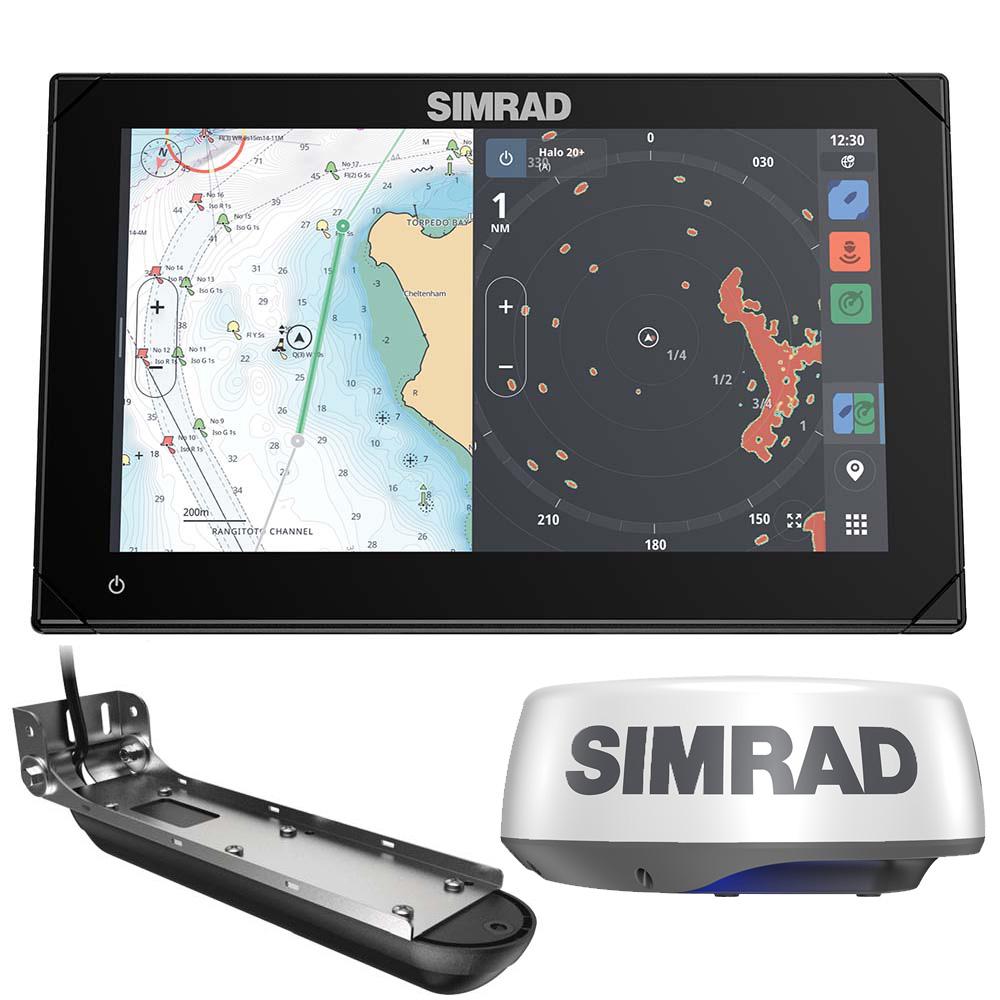

The Simrad NSX 3009 radar bundle combines a 9-inch SolarMAX IPS chartplotter, C-MAP DISCOVER X North America charts, Active Imaging 3-in-1 sonar and a HALO20+ radar. Navigate, locate fish and monitor surrounding traffic from one integrated display with CHIRP, SideScan, DownScan Imaging, FishReveal, 36-nautical-mile radar range, Dual Range and VelocityTrack Doppler technology.
Key Features
- Complete chartplotter, fishfinder and radar package
- 9-inch SolarMAX IPS multi-touchscreen
- 1280 × 720-pixel resolution
- More than 1,200-nit screen brightness
- C-MAP DISCOVER X North America charts included
- Internal 10 Hz GPS receiver
- Active Imaging 3-in-1 transducer included
- Medium and High CHIRP sonar
- SideScan and DownScan Imaging
- FishReveal smart target display
- HALO20+ pulse-compression radar included
- Maximum radar range of 36 nautical miles
- Up to 60 RPM radar operation
- Simultaneous Dual Range
- VelocityTrack Doppler target highlighting
- Beam sharpening and automatic sea-clutter processing
- Harbour, Offshore, Weather and Bird radar modes
- MARPA target tracking support
- Ethernet and NMEA 2000 networking
- Wi-Fi and Bluetooth connectivity
- MicroSD and USB-A storage connections
- Compatible with Simrad NAC-series autopilots
- IP camera and CZone digital-switching support
Technical Specifications
NSX 3009 Display
| Specification |
Details |
| Display size |
9 inches |
| Display technology |
SolarMAX IPS multi-touchscreen |
| Resolution |
1280 × 720 pixels |
| Brightness |
More than 1,200 nits |
| Viewing angles |
85° top, bottom, left and right |
| Dimensions without bracket |
239 × 148.5 × 80.6 mm / 9.4 × 5.85 × 3.17 in |
| Dimensions with bracket |
263 × 172.6 × 80.6 mm / 10.35 × 6.8 × 3.17 in |
| Weight |
1.2 kg / 2.6 lb |
| Waterproof rating |
IPX6 and IPX7 |
| Operating temperature |
-15°C to 55°C / 5°F to 131°F |
| Maximum power consumption |
18.8 W |
| Supply voltage |
12 V DC, 10–17 V operating range |
| Recommended fuse |
3 A |
Navigation
| Specification |
Details |
| Included cartography |
C-MAP DISCOVER X North America |
| Supported C-MAP charts |
DISCOVER X and REVEAL X |
| GPS receiver |
Internal, 10 Hz |
| GPS channels |
32 |
| Position accuracy |
Approximately 3 m / 9.8 ft |
| Corrections |
WAAS, MSAS, EGNOS and GLONASS |
| Waypoints |
6,000 |
| Routes |
500, with up to 100 points per route |
| Tracks |
50, with up to 12,000 points per track |
Active Imaging Sonar
| Specification |
Details |
| Included transducer |
Active Imaging 3-in-1 |
| Mounting style |
Transom mount |
| Traditional sonar |
83/200 kHz |
| Structure frequencies |
455/800 kHz |
| CHIRP |
Medium and High CHIRP |
| Imaging |
SideScan and DownScan Imaging |
| Fish-target display |
FishReveal |
| Temperature |
Integrated water-temperature sensor |
| Connection |
Nine-pin xSonic |
| Display sonar port |
One nine-pin xSonic port |
HALO20+ Radar
| Specification |
Details |
| Radar type |
Pulse-compression dome radar |
| Radar MPN |
000-14536-001 |
| Dome diameter |
510 mm / 20 in |
| Dome height |
223 mm / 8.8 in |
| Weight |
5.9 kg / 13 lb without cable |
| Maximum range |
36 nautical miles |
| Minimum range |
50 m / 200 ft |
| Rotation speed |
Up to 60 RPM, range dependent |
| High-speed operation |
Up to 1.5 nautical miles |
| Radar technologies |
Dual Range, VelocityTrack and beam sharpening |
| MARPA tracking |
Up to 10 targets; 20 in Dual Range |
| Radar modes |
Harbour, Offshore, Weather, Bird and Dual Range |
| Horizontal beam width |
4.9° nominal |
| Vertical beam width |
25° |
| Typical power consumption |
20 W |
| Maximum power consumption |
29 W |
| Supply voltage |
10.5–31.2 V DC |
| Recommended fuse |
5 A |
| Waterproof rating |
IPX6 |
| Operating temperature |
-25°C to 55°C / -13°F to 130°F |
Connectivity
| Specification |
Details |
| Ethernet |
One five-pin port |
| NMEA 2000 |
One Micro-C port, 1 LEN |
| Wi-Fi |
IEEE 802.11b/g/n |
| Bluetooth |
Bluetooth 4.0 |
| External storage |
One microSD slot and one USB-A port |
| Video |
IP camera support |
| AIS |
Receives compatible AIS data through NMEA 2000 |
| Digital switching |
CZone/Simrad DDS compatible |
| Autopilot compatibility |
NAC-1, NAC-2, NAC-3 and NAC-D |
