B&G Zeus S 9 Chartplotter for SALE
$ 975.00
Brand: B&GBuy the B&G Zeus S 9 Chartplotter with a SolarMAX touchscreen, sailing modes, GPS, SailSteer, C-MAP support, sonar and marine networking.

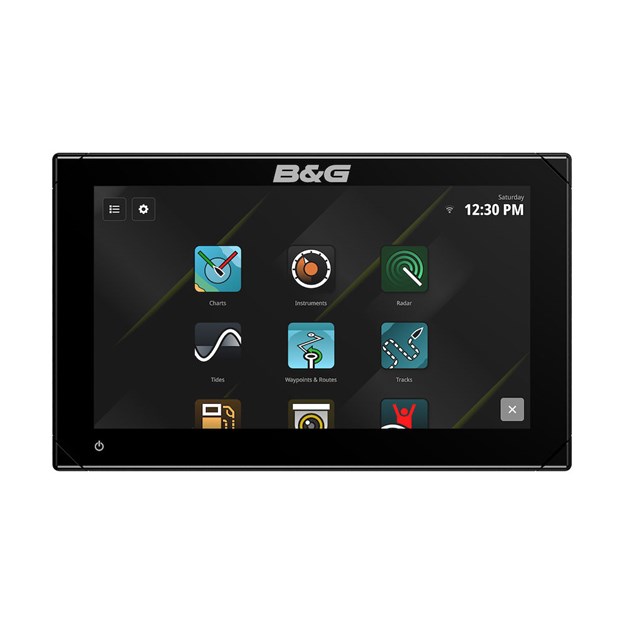

B&G Zeus S 9 Chartplotter
Make sailing navigation clearer and simpler with the B&G Zeus S 9 Chartplotter. Designed specifically for sailors, this multifunction display offers an intuitive interface, specialized sailing modes, accurate C-MAP cartography and seamless integration with compatible onboard electronics.
The 9-inch SolarMAX IPS touchscreen features a sharp 1280 × 800 resolution, 1,200-nit brightness and wide viewing angles. Charts and sailing data remain visible in direct sunlight and through polarized sunglasses. Customizable layouts and a guided Setup Wizard provide quick access to navigation, instruments, radar, sonar and autopilot controls.
Dedicated Sailing Modes
Zeus S presents information according to the current sailing activity:
- Cruise Mode: Prioritizes charts, routes and essential cruising information.
- Race Mode: Provides quick access to StartLine, timers, race routes and performance data.
- Anchor Mode: Displays relevant information for monitoring the boat at anchor.
- Night Mode: Reduces glare and improves visibility during nighttime navigation.
Enhanced B&G Sailing Features
The Zeus S 9 incorporates B&G’s specialized cruising and racing technology:
- SailSteer: Combines wind, heading, tide, layline and waypoint data in one visual display.
- Laylines: Displays predicted tacking and gybing routes directly on the chart.
- StartLine: Shows time, distance and position relative to the starting line.
- SailingTime: Calculates realistic arrival times when the route requires tacking.
- C-MAP Safety Alerts: Warns of shallow water and potentially dangerous charted objects.
- Autopilot control: Operates compatible B&G autopilots from the touchscreen.
Compatible wind, speed, depth and heading sensors may be required to access every advanced sailing function.
C-MAP DISCOVER X Charts
The US version includes a C-MAP DISCOVER X North America chart card. DISCOVER X provides clear vector cartography and useful planning features, including:
- Detailed coastal and inland-water charts
- High-resolution bathymetric contours
- Custom Depth Shading
- Tides and currents
- Points of interest and harbor information
- Fast autorouting
- C-MAP Safety Alerts
- Easy chart updates through X-Chart Manager
Zeus S also supports optional C-MAP REVEAL X cartography for additional premium chart features.
Marine-System Integration
Built-in NMEA 2000, Ethernet, Wi-Fi and Bluetooth allow the Zeus S 9 to serve as the center of an integrated sailing system. Connect compatible HALO radar, B&G autopilots, Triton² and Nemesis instruments, AIS equipment, wind sensors and vessel-monitoring devices.
A 9-pin XSONIC sonar port supports compatible single-channel CHIRP, 50/200 kHz, HDI and Active Imaging transducers. The display also supports compatible IP cameras for additional onboard visibility.
Key Features
- 9-inch SolarMAX IPS multi-touch display
- 1280 × 800-pixel screen resolution
- 1,200-nit sunlight-viewable screen
- Wide 85-degree viewing angles
- Readable through polarized sunglasses
- C-MAP DISCOVER X North America charts included
- Cruise, Race, Anchor and Night modes
- SailSteer and Laylines
- StartLine and racing functions
- C-MAP-powered Safety Alerts
- Integrated 10 Hz GPS receiver
- 9-pin XSONIC 1 kW sonar port
- CHIRP, HDI and Active Imaging compatibility
- Compatible with B&G HALO radar
- Integrated B&G autopilot control
- NMEA 2000 and Ethernet networking
- Built-in Wi-Fi and Bluetooth
- B&G App integration
- Triton², Nemesis and Triton Edge integration
- AIS-data display through compatible equipment
- IP-camera support
- Guided Setup Wizard
- Bracket, panel or flush mounting
- IPX6 and IPX7 water resistance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | B&G |
| Model | Zeus S 9 |
| US manufacturer part number | 000-15220-001 |
| Global-basemap part number | 000-15221-001 |
| Product type | Sailing chartplotter and MFD |
| Display size | 9 inches |
| Display type | SolarMAX IPS multi-touch |
| Display resolution | 1280 × 800 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 85° top, bottom, left and right |
| Included cartography | C-MAP DISCOVER X North America—US model |
| Supported charts | C-MAP DISCOVER X and REVEAL X |
| GPS | Integrated 10 Hz, 32-channel receiver |
| Position accuracy | Approximately 3 meters under suitable conditions |
| Sailing modes | Cruise, Race, Anchor and Night |
| Sailing features | SailSteer, Laylines, StartLine and SailingTime |
| Sonar port | One 9-pin XSONIC port, up to 1 kW |
| Sonar compatibility | Single-channel CHIRP, 50/200 kHz, HDI and Active Imaging |
| Radar compatibility | Compatible B&G HALO radar systems |
| AIS | Receives AIS information over NMEA 2000 |
| Autopilot compatibility | NAC-1, NAC-2, NAC-3, NAC-D and H5000 |
| Networking | NMEA 2000 and Ethernet |
| Wireless connectivity | Wi-Fi and Bluetooth 4.0 |
| External storage | One microSD card slot |
| Video | IP-camera support |
| Waypoint capacity | Up to 6,000 |
| Route capacity | Up to 500 |
| Track capacity | Up to 50 |
| Supply voltage | 12 V DC; 10–17 V operating range |
| Maximum power consumption | 29.7 W |
| Recommended fuse | 3 A |
| Water resistance | IPX6/IPX7 |
| Dimensions | Approximately 9.4 × 5.9 × 2.9 inches |
| Weight | Approximately 2.6 lb |
| Mounting | Bracket, panel or flush mount |
| Warranty | Two years |
Package Contents
The US package typically includes:
- B&G Zeus S 9 chartplotter
- C-MAP DISCOVER X North America chart card
- Four-pin power cable
- Fuse and fuse holder
- U-shaped mounting bracket
- Panel-mounting kit
- Corner clips
- Sun cover
- Installation documentation
Radar, sonar transducer, NMEA 2000 starter kit and sailing sensors are sold separately unless stated otherwise.
