Briggs & Stratton 10V352-0029-F1 Horizontal Vanguard Engine for SALE
$ 430,10
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 10V352-0029-F1 Horizontal Vanguard Engine with 169cc displacement, 6:1 gear reduction, cyclonic filter, and horizontal shaft.

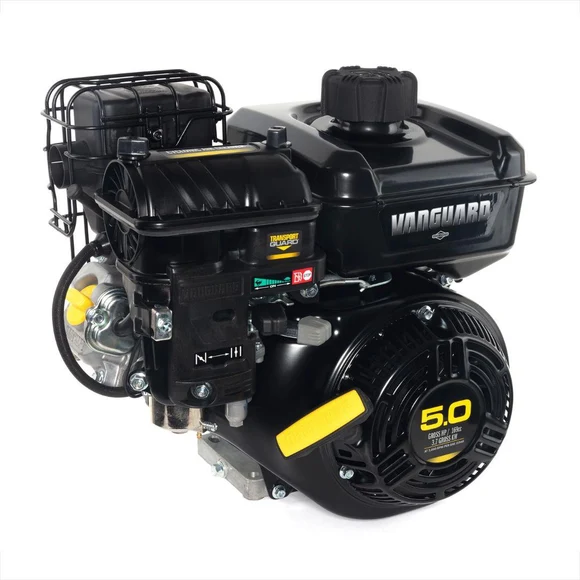

Briggs & Stratton 10V352-0029-F1 Horizontal Vanguard Engine
The Briggs & Stratton 10V352-0029-F1 Vanguard Horizontal Engine delivers dependable commercial-grade power for demanding equipment and replacement-engine applications. Its 169cc engine produces 5.0 gross horsepower with a maximum operating speed of 3,600 RPM.
Key Features
- Commercial-grade Vanguard engine
- 5.0 gross horsepower
- 169cc displacement
- Horizontal keyed output shaft
- 6:1 gear reduction
- Counterclockwise output rotation
- Cyclonic air filtration system
- TransportGuard® fuel and ignition shutoff
- Nickel-plated commercial carburetor
- Variable-timing CDI ignition
- EPA compliant
Specifications
| Specification | Detail |
|---|---|
| Brand | Briggs & Stratton |
| Series | Vanguard |
| Model | 10V352-0029-F1 |
| Engine orientation | Horizontal shaft |
| Gross power | 5.0 HP |
| Displacement | 169cc |
| Maximum speed | 3,600 RPM |
| Gear reduction | 6:1 |
| Output rotation | Counterclockwise |
| Shaft diameter | 3/4 in. |
| Shaft length | 1-13/16 in. |
| Keyway | 3/16 in. |
| Oil capacity | 20 oz. |
| Air cleaner | Cyclonic |
| Ignition | Variable-timing CDI |
| Emissions compliance | EPA compliant |
