Briggs & Stratton 130G37-0183-F1 Horizontal Engine for SALE
$ 434,50
Brand: Briggs & Stratton EnginesThe Briggs & Stratton 130G37-0183-F1 Horizontal Engine, Replaces 12S437-0050-F8 offers 6.5 gross HP, 208cc displacement, electric and recoil starting, a 3-amp charging system, and a 3/4-inch keyed shaft. It replaces Briggs & Stratton model 12S437-0050-F8.

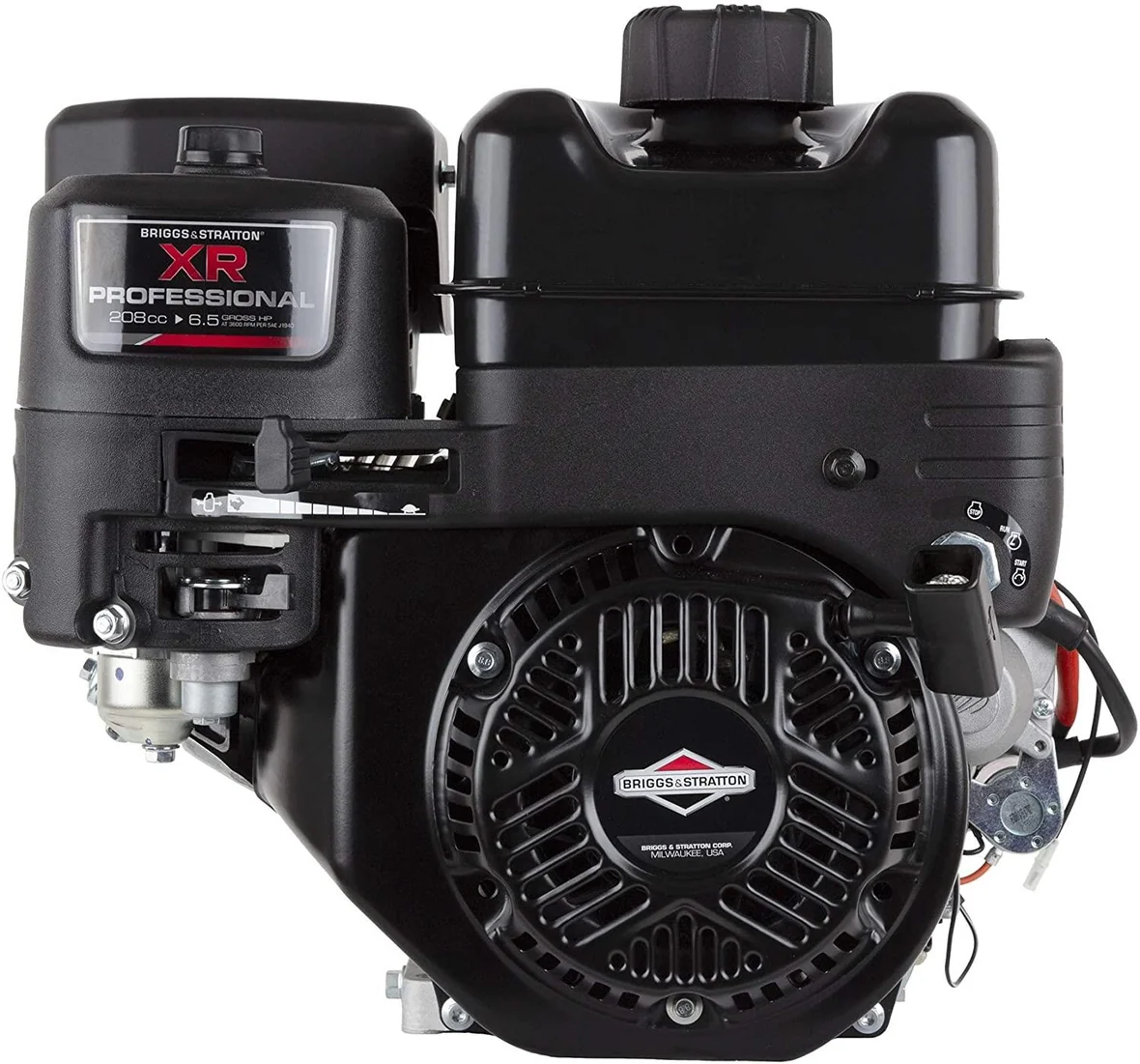

Briggs & Stratton 130G37-0183-F1 Horizontal Engine
The Briggs & Stratton 130G37-0183-F1 Horizontal Engine delivers dependable power for commercial equipment and demanding outdoor applications. This XR Series engine produces 6.5 gross horsepower and 9.0 ft-lb of gross torque from its 208cc single-cylinder OHV design.
Key Features
- 208cc XR Series OHV engine
- 6.5 gross horsepower
- 9.0 ft-lb gross torque
- Horizontal keyed crankshaft
- Electric start with recoil backup
- Three-amp charging system
- Dura-Bore™ cast-iron cylinder sleeve
- Magnetron® electronic ignition
- Float-feed carburetor
- Mechanical governor
- EPA compliant
- Replaces 12S437-0050-F8
Specifications
| Specification | Detail |
|---|---|
| Brand | Briggs & Stratton |
| Model | 130G37-0183-F1 |
| Series | XR Series |
| Engine type | Single-cylinder, four-stroke OHV |
| Crankshaft orientation | Horizontal |
| Displacement | 208cc |
| Gross horsepower | 6.5 HP |
| Gross torque | 9.0 ft-lb |
| Maximum speed | 3,600 RPM |
| Starting system | 12V electric and recoil |
| Charging system | 3 amp |
| Shaft diameter | 3/4 in. |
| Shaft length | 2-27/64 in. |
| Keyway | 3/16 in. |
| Drilled and tapped | 5/16-24 |
| Oil capacity | 20 oz. |
| Replacement for | 12S437-0050-F8 |
