Briggs & Stratton 12V352-0015-F1 Horizontal Vanguard Engine with 6:1 Gear Reduction
$ 479,60
Brand: Briggs & Stratton EnginesThe Briggs & Stratton 12V352-0015-F1 Horizontal Vanguard Engine with 6:1 Gear Reduction featuring 6.5 gross HP, 203cc displacement, recoil start, cyclonic air filtration, and an integrated 6:1 gear reduction with counterclockwise output.
Briggs & Stratton 12V352-0015-F1 Horizontal Vanguard Engine with 6:1 Gear Reduction

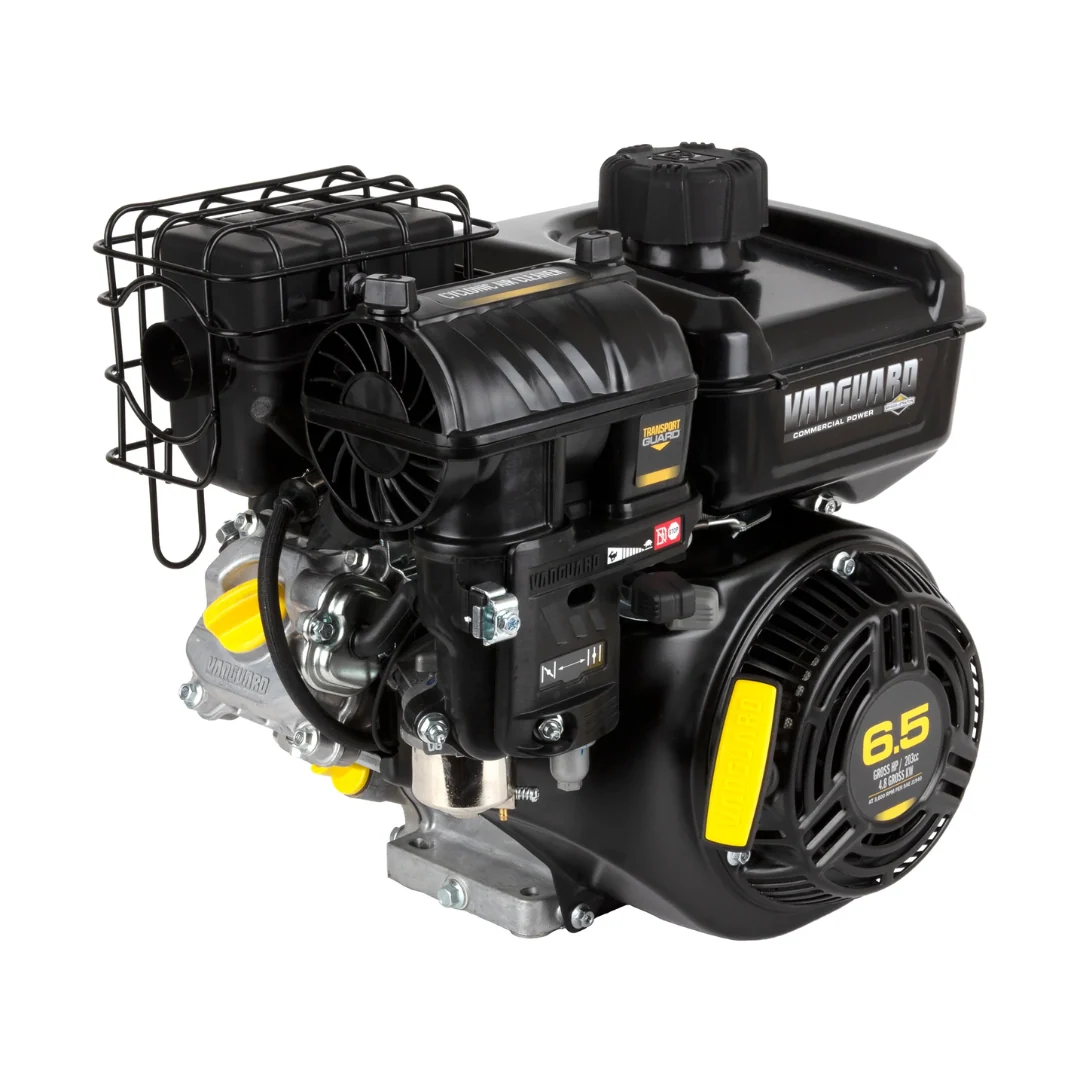

The Briggs & Stratton 12V352-0015-F1 Vanguard Horizontal Engine delivers commercial-grade performance for equipment requiring controlled output speed and dependable torque. Its 203cc four-stroke OHV engine produces 6.5 gross horsepower and operates at up to 3,600 RPM.
Key Features
- Commercial-grade Vanguard engine
- 6.5 gross horsepower
- 203cc displacement
- Integrated 6:1 gear reduction
- Counterclockwise output rotation
- Recoil starting system
- Cyclonic air filtration
- TransportGuard® fuel and ignition shutoff
- Commercial-style carburetor
- Variable-timing CDI ignition
- Mechanical governor
- EPA compliant
Specifications
| Specification | Detail |
|---|---|
| Brand | Briggs & Stratton |
| Series | Vanguard |
| Model | 12V352-0015-F1 |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Horizontal |
| Gross power | 6.5 HP |
| Displacement | 203cc |
| Maximum engine speed | 3,600 RPM |
| Gear reduction | 6:1 |
| Output rotation | Counterclockwise |
| Starting system | Recoil |
| Shaft diameter | 3/4 in. |
| Shaft length | 1-13/16 in. |
| Keyway | 3/16 in. |
| Oil capacity | 20 oz. |
| UPC/GTIN-12 | 047282758137 |
