Briggs & Stratton 386777-0144-G1 Vertical Vanguard Engine for SALE
$ 1.201,20
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 386777-0144-G1 Vertical Vanguard Engine with electric start, 16-amp charging, oil filter, and oil cooler.

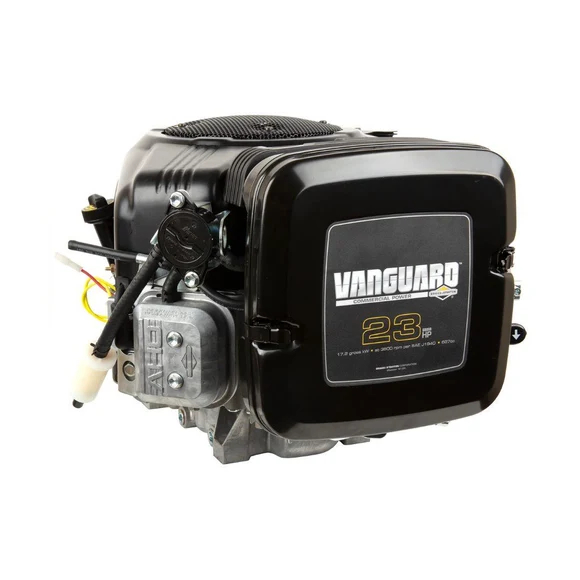

Briggs & Stratton 386777-0144-G1 Vertical Vanguard Engine
The Briggs & Stratton 386777-0144-G1 Vertical Vanguard Engine provides commercial-grade power for professional mowing equipment and other demanding vertical-shaft applications. Its compact, air-cooled V-Twin configuration produces 23 gross HP from a 627cc displacement, delivering reliable performance at speeds up to 3,600 RPM.
Key Features
- Commercial-grade Vanguard V-Twin engine
- 23 gross HP
- 627cc displacement
- Vertical shaft configuration
- 12-volt electric starter
- Magnetron electronic ignition
- 16-amp charging system
- Full-pressure lubrication
- Spin-on oil filter and oil cooler
- Dura-Bore cast-iron cylinder sleeves
- Advanced debris management
- Integrated fuel pump
- Remote throttle and choke controls
- Fuel tank and muffler not included
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Series | Vanguard |
| Model | 386777-0144-G1 |
| Engine type | Four-stroke, air-cooled V-Twin OHV |
| Shaft orientation | Vertical |
| Gross power | 23 HP |
| Displacement | 627cc |
| Bore | 2.97 inches |
| Stroke | 2.76 inches |
| Maximum speed | 3,600 RPM |
| Starting system | 12V electric start |
| Charging system | 16 amp |
| Ignition system | Magnetron electronic ignition |
| Crankshaft diameter | 1-1/8 inches |
| Crankshaft length | 4 inches |
| Keyway | 1/4 inch |
| Drilled and tapped end | 7/16-20 |
| Shaft rotation | Counterclockwise from PTO side |
| Lubrication | Full-pressure |
| Oil filter | Included |
| Oil cooler | Included |
| Oil capacity | 48 fl oz / approximately 1.4 L |
| Fuel pump | Included |
| Fuel tank | Not included |
| Muffler | Not included |
| Throttle and choke | Remote |
| UPC/GTIN-12 | 047282812693 |
