Honda GX340 QAE2 Horizontal Engine with Electric Start for SALE
$ 643,50
Brand: Honda EnginesBuy the Honda GX340 QAE2 Horizontal Engine with Electric Start with 389cc, 10.7 net HP, electric start, 3-amp charging and a 1-inch keyed crankshaft.

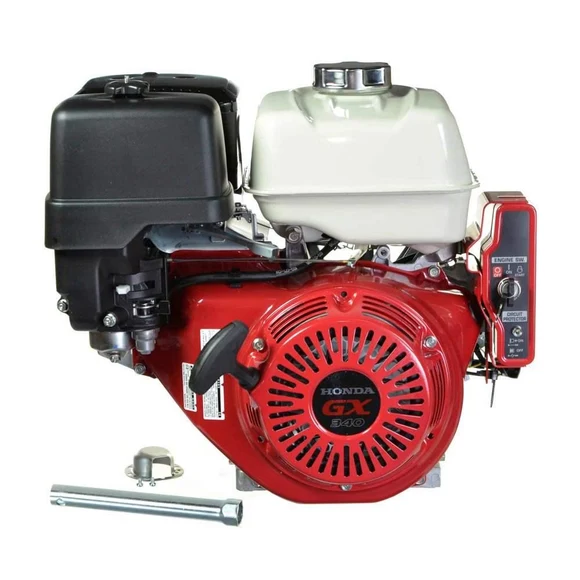

Honda GX340 QAE2 Horizontal Engine with Electric Start
The Honda GX340 QAE2 Horizontal Engine with Electric Start delivers reliable commercial-grade power for pressure washers, air compressors, generators, pumps, log splitters, construction equipment, and agricultural machinery. Its 389cc air-cooled, four-stroke OHV design produces 10.7 net horsepower at 3,600 RPM and 19.5 lb-ft of torque at 2,500 RPM.
Key Features
- Commercial-grade 389cc OHV engine
- 10.7 net HP at 3,600 RPM
- 19.5 lb-ft of torque at 2,500 RPM
- 12-volt electric starting
- Heavy-duty recoil backup
- 3-amp charging system with rectifier
- 1-inch keyed horizontal crankshaft
- Variable-timing digital CDI ignition
- Honda Oil Alert protection
- Cast-iron cylinder sleeve
- Dual-element air cleaner
- Fuel tank and muffler included
Specifications
| Specification | Details |
|---|---|
| Manufacturer model | GX340UT2QAE2 / GX340UT2XQAE2 |
| Engine type | Air-cooled, four-stroke OHV |
| Cylinders | One |
| Displacement | 389cc |
| Net power | 10.7 HP at 3,600 RPM |
| Net torque | 19.5 lb-ft at 2,500 RPM |
| Bore × stroke | 88 × 64 mm |
| Compression ratio | 8.2:1 |
| Shaft orientation | Horizontal |
| Crankshaft type | Q-type straight keyed shaft |
| Crankshaft size | 1″ diameter × 3-31/64″ long |
| Keyway width | 1/4″ |
| Shaft end tapping | 3/8″-24 UNF |
| Starting system | 12V electric and recoil |
| Charging system | 3 amp with rectifier |
| Ignition | Digital CDI with variable timing |
| Carburetor | Butterfly float type |
| Air cleaner | Dual element |
| Lubrication | Splash |
| Oil capacity | 1.16 US qt |
| Fuel-tank capacity | 6.4 US qt |
| Fuel | Unleaded gasoline, 86 octane or higher |
| PTO rotation | Counterclockwise from shaft side |
| Gear reduction | None |
| Emissions configuration | 49-state; not for California |
