Honda GXV630 QAF Vertical V-Twin Engine for SALE
$ 1.782,00
Brand: Honda EnginesBuy the Honda GXV630 QAF Vertical V-Twin Engine with 20.8 HP, electric start, 17A alternator and a 1-inch crankshaft.

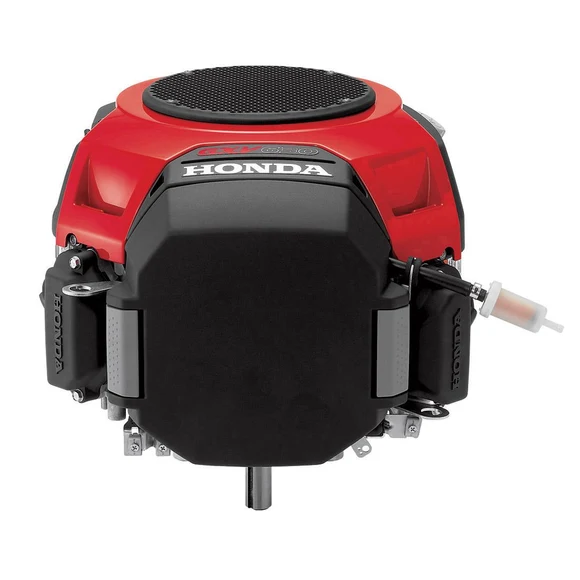

Honda GXV630 QAF Vertical V-Twin Engine
The Honda GXV630 QAF Vertical V-Twin Engine delivers commercial-grade performance for professional lawn, garden, agricultural, and industrial equipment. Its 688cc, air-cooled 90-degree V-Twin OHV design produces 20.8 HP at 3,600 rpm and 35.6 lb-ft of torque at 2,500 rpm.
Key Features
- Commercial-grade 688cc V-Twin engine
- Vertical crankshaft configuration
- 20.8 HP net power output
- Electric starting system
- 17-amp alternator
- Digital CDI ignition with variable timing
- Two-barrel carburetor with fuel-cut solenoid
- Full-pressure lubrication
- Automotive-style spin-on oil filter
- Dual-element air cleaner
- Forged-steel crankshaft
- Cast-iron cylinder sleeves
- Oil Alert engine protection
- Over-rev limiter
Specifications
| Specification | Details |
|---|---|
| Model | GXV630 QAF |
| Manufacturer model code | GXV630RHQAF |
| Engine type | Air-cooled, 4-stroke, OHV 90° V-Twin |
| Crankshaft orientation | Vertical |
| Displacement | 688cc |
| Bore × stroke | 78 × 72 mm |
| Compression ratio | 9.3:1 |
| Net power | 20.8 HP at 3,600 rpm |
| Maximum torque | 35.6 lb-ft at 2,500 rpm |
| Fuel system | Two-barrel carburetor |
| Ignition | Digital CDI with variable timing |
| Starting system | Electric |
| Charging system | 17 amp |
| Governor | Mechanical |
| Shaft diameter | 1 in. |
| Shaft length | 3-5/32 in. |
| PTO rotation | Counterclockwise from PTO side |
| Lubrication | Full pressure |
| Oil capacity | Approximately 2.3 US qt / 2.2 L |
| Air cleaner | Dual element |
| Fuel | Unleaded gasoline, 86 octane or higher |
