Kohler CH640-3126 Horizontal Engine, Replaces CH640-3110 for SALE
$ 1.423,40
Brand: Kohler EnginesBuy the Kohler CH640-3126 Horizontal Engine, Replaces CH640-3110 with electric start, 15-amp charging and a 1-1/8 x 2.79-inch shaft. Replaces CH640-3110.

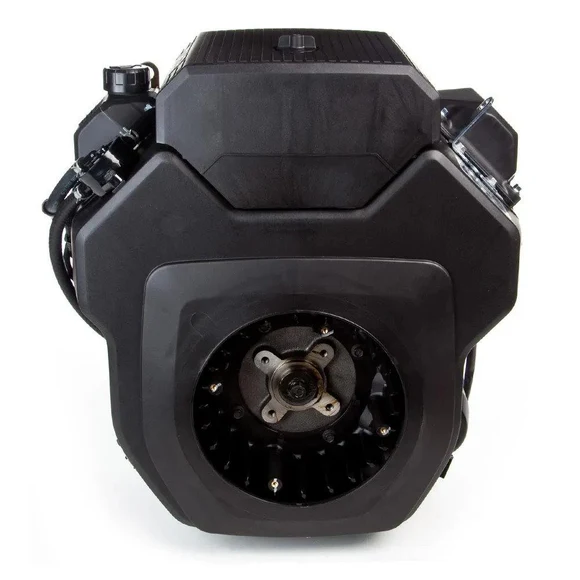

Kohler CH640-3126 Horizontal Engine, Replaces CH640-3110
The Kohler CH640-3126 Command PRO Horizontal Engine is a commercial-grade replacement engine designed for select Simplicity and SunStar equipment. It directly supersedes Kohler CH640-3110 and may also replace CH20S-64512, subject to complete specification verification.
Key Features
- Commercial-duty Kohler Command PRO engine
- 674cc four-cycle V-twin OHV design
- Rated at 20.5 horsepower
- Maximum torque of approximately 35.7 ft-lb
- Replaces Kohler CH640-3110
- Simplicity and SunStar equipment specification
- Electric start with solenoid-shift starter
- 15-amp regulated charging system
- Full-pressure lubrication
- Spin-on full-flow oil filter
- Electronic ignition
- Mechanical fuel pump
- Dual-element air cleaner with foam pre-cleaner
- Cast-iron cylinder liners
- Remote throttle and choke controls
- Fuel tank and muffler not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH640 |
| Specification number | CH640-3126 |
| Manufacturer part number | PA-CH640-3126 |
| Replaces | CH640-3110 |
| Additional cross-reference | CH20S-64512 |
| Original equipment application | Simplicity/SunStar |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Rated power | 20.5 HP |
| Maximum torque | Approximately 35.7 ft-lb |
| Bore | Approximately 3.0 in. |
| Stroke | Approximately 2.6 in. |
| Compression ratio | 8.5:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel system | Carbureted with mechanical fuel pump |
| Starting system | Electric start |
| Ignition | Electronic |
| Charging system | 15 amp |
| Governor | Mechanical, variable speed |
| Lubrication system | Full pressure |
| Oil filter | Spin-on, full flow |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Dual element with foam pre-cleaner |
| Control type | Remote throttle and choke |
| PTO shaft diameter | 1-1/8 in. |
| PTO shaft length | Approximately 2.79 in. |
| Keyway | 1/4 in. |
| Crankshaft end | 7/16-20 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| PTO shaft height | Approximately 6.125 in. |
| Fuel tank | Not included |
| Muffler | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate dry weight | 107 lb |
| UPC | 885612243034 |
| Warranty | Three-year limited manufacturer warranty |
