Kohler CH730-3004 Horizontal Engine, Replaces CH730-3208 for SALE
$ 1.423,40
Brand: Kohler EnginesBuy the Kohler CH730-3004 Horizontal Engine, Replaces CH730-3208 with electric start, 20-amp charging and a 1-7/16 x 4.46-inch shaft. Replaces CH730-3208.

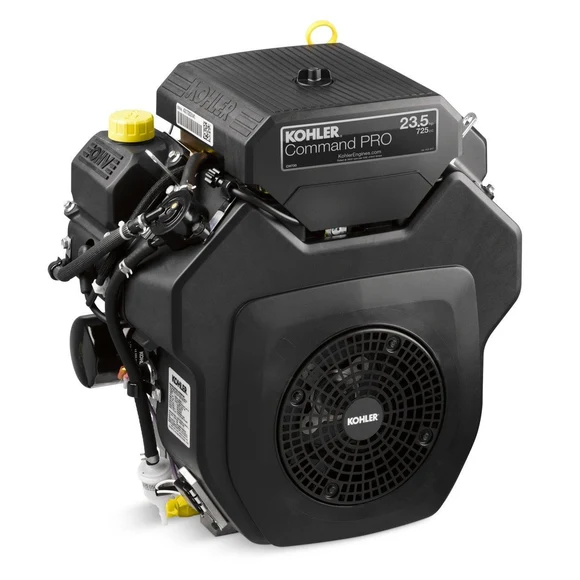

Kohler CH730-3004 Horizontal Engine, Replaces CH730-3208
The Kohler CH730-3004 Command PRO Horizontal Engine is a commercial-grade replacement engine delivering dependable power for demanding industrial and outdoor power equipment. This specification replaces Kohler CH730-3208 and may also cross-reference CH25-68500, subject to complete configuration verification.
Key Features
- Commercial-duty Kohler Command PRO construction
- 725cc four-cycle V-twin OHV engine
- Rated at 23.5 horsepower
- Maximum torque of approximately 38.4 ft-lb
- Replaces Kohler CH730-3208
- Electric start
- 20-amp charging system
- Full-pressure lubrication
- Integrated oil cooler
- Full-flow spin-on oil filter
- Mechanical fuel pump
- Heavy-duty air cleaner
- Cast-iron cylinder liners
- Hydraulic valve lifters
- Electronic ignition
- Large 1-7/16-inch keyed PTO shaft
- Fuel tank and muffler not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH730 |
| Specification number | CH730-3004 |
| Manufacturer part number | PA-CH730-3004 |
| Replaces | CH730-3208 |
| Additional cross-reference | CH25-68500 |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 725cc / 44.2 cu. in. |
| Rated power | 23.5 HP at 3,600 RPM |
| Power output | Approximately 17.5 kW |
| Maximum torque | 38.4 ft-lb at approximately 2,800 RPM |
| Bore | 3.27 in. / 83 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | Approximately 9.0:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V electric start |
| Charging system | 20 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Lubrication system | Full pressure |
| Oil cooler | Included |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Heavy-duty dual-element air cleaner |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1-7/16 in. |
| PTO shaft length | 4.46 in. / 4-29/64 in. |
| Keyway width | 3/8 in. |
| Crankshaft end | 5/8-18 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Fuel tank | Not included |
| Muffler | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate dry weight | 90 lb |
| UPC/GTIN | 885612767776 |
| Warranty | Three-year limited manufacturer warranty |
| California availability | Not approved for shipment to California |
