Kohler ZT740-3054 Vertical Confidant Engine, Replaces ZT740-3026 for SALE
$ 1.423,40
Brand: Kohler EnginesShop the Kohler ZT740-3054 Vertical Confidant Engine, Replaces ZT740-3026 with electric start, 15-amp charging and a 1 x 3.16-inch shaft. Replaces ZT740-3026.

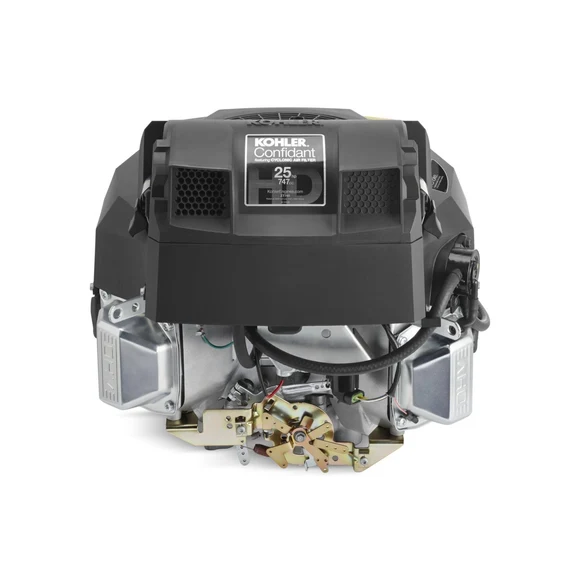

Kohler ZT740-3054 Vertical Confidant Engine, Replaces ZT740-3026
The Kohler ZT740-3054 Confidant Vertical Engine delivers commercial-grade performance for select zero-turn mowers, stand-on mowers, garden tractors, and other professional turf equipment. Built to the E10 Moridge specification, this engine replaces Kohler ZT740-3026, subject to verification of the complete installation configuration.
Key Features
- Commercial-duty Kohler Confidant series
- E10 Moridge engine specification
- Replaces Kohler ZT740-3026
- 747cc four-cycle V-twin OHV design
- Maximum output of 25 horsepower
- Peak torque of approximately 42.4 ft-lb
- Solenoid-shift electric starter
- 15-amp charging system
- Pressure lubrication
- Full-flow oil filter
- Mechanical fuel pump
- Heavy-duty air cleaner
- Cast-iron cylinder liners
- Electronic ignition
- Remote throttle and choke controls
- One-inch keyed vertical PTO shaft
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Confidant |
| Engine model | ZT740 |
| Specification number | ZT740-3054 |
| Manufacturer part number | PA-ZT740-3054 |
| Replaces | ZT740-3026 |
| OEM specification | E10 Moridge |
| Engine orientation | Vertical shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 747cc / 45.6 cu. in. |
| Maximum power | 25 HP / 18.6 kW |
| Rated speed | 3,600 RPM |
| Certified power | Approximately 24.21 HP |
| Peak torque | 42.4 ft-lb / 57.5 Nm |
| Peak torque speed | Approximately 2,400 RPM |
| Bore | 3.27 in. / 83 mm |
| Stroke | 2.72 in. / 69 mm |
| Compression ratio | 9.1:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel system | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| included Starting system | Solenoid-shift electric start |
| Charging system | 15 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Lubrication system | Pressure lubrication |
| Oil filter | Full-flow filter included |
| Oil capacity | 2 US qt. / 1.9 L |
| Air cleaner | Heavy-duty air cleaner |
| Throttle control | Remote |
| Choke control | Remote |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1 in. |
| PTO shaft length | 3.16 in. / approximately 3-5/32 in. |
| Keyway width | 1/4 in. |
| Crankshaft end | 7/16-20 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Fuel tank | Not included |
| Muffler | Not included |
| Approximate dimensions | 18.6 × 17.8 × 13.9 in. |
| Approximate dry weight | 91 lb |
| UPC/GTIN | 885612805744 |
| Warranty | Three-year limited manufacturer warranty |
