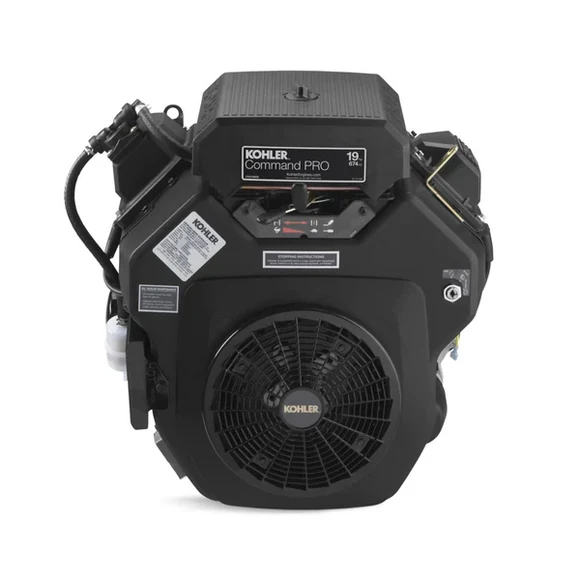

Kohler CH620-3155 Horizontal Engine, Replaces CH620-3101 and CH620-3004 for SALE
$ 1.434,40
Brand: Kohler EnginesShop the Kohler CH620-3155 Horizontal Engine, Replaces CH620-3101 and CH620-3004 with electric start, control panel and 1 x 3-inch shaft. Replaces CH620-3101 and CH620-3004.
Kohler CH620-3155 Horizontal Engine, Replaces CH620-3101 and CH620-3004
The Kohler CH620-3155 Command PRO Horizontal Engine is a commercial-grade replacement engine supplied with an engine-mounted control panel, key switch, throttle, and choke controls. It directly supersedes Kohler CH620-3101 and CH620-3004 and may also replace CH18S-62503, provided the complete installation specifications match.
Key Features
- Commercial-duty Kohler Command PRO engine
- Basic E13 configuration with control panel
- Replaces CH620-3101 and CH620-3004
- Additional cross-reference: CH18S-62503
- 674cc four-cycle V-twin OHV design
- Rated at 19 gross horsepower
- Maximum torque of approximately 35 ft-lb
- 12-volt electric start
- Engine-mounted key switch
- Manual throttle and choke controls
- 15-amp charging system
- Heavy flywheel
- Full-pressure lubrication
- Full-flow spin-on oil filter
- Dual-element air cleaner
- Cast-iron cylinder liners
- Mechanical fuel pump
- Fuel tank and muffler not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH620 |
| Specification number | CH620-3155 |
| Manufacturer part number | PA-CH620-3155 |
| Replaces | CH620-3101 and CH620-3004 |
| Additional cross-reference | CH18S-62503 |
| Configuration | E13 Basic with panel |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Gross power | 19 HP / 14.2 kW |
| Rated speed | 3,600 RPM |
| Maximum torque | Approximately 35 ft-lb / 47.5 Nm |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | 8.5:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V electric start |
| Starter type | Solenoid-shift starter |
| Charging system | 15 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Flywheel | Heavy flywheel |
| Lubrication system | Full pressure |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Dual-element air cleaner |
| Control panel | Included |
| Key switch | Included |
| Throttle control | Engine-mounted manual control |
| Choke control | Engine-mounted manual control |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1 in. |
| PTO shaft length | 3 in. |
| Keyway width | 1/4 in. |
| Crankshaft end | 3/8-24 tapped, approximately 1 in. deep |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Gear reduction | None |
| Fuel tank | Not included |
| Muffler | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate configured weight | 106–107 lb |
| UPC/GTIN | 885612768230 |
| Warranty | Manufacturer’s limited engine warranty |
