Kohler CH620-3149 Horizontal Command PRO Engine, Replaces CH620-3130 for SALE
$ 1.435,50
Brand: Kohler EnginesShop the Kohler CH620-3149 Horizontal Command PRO Engine, Replaces CH620-3130 with electric start, 15-amp charging and a 1-1/8 x 3.35-inch shaft. Replaces CH620-3130.

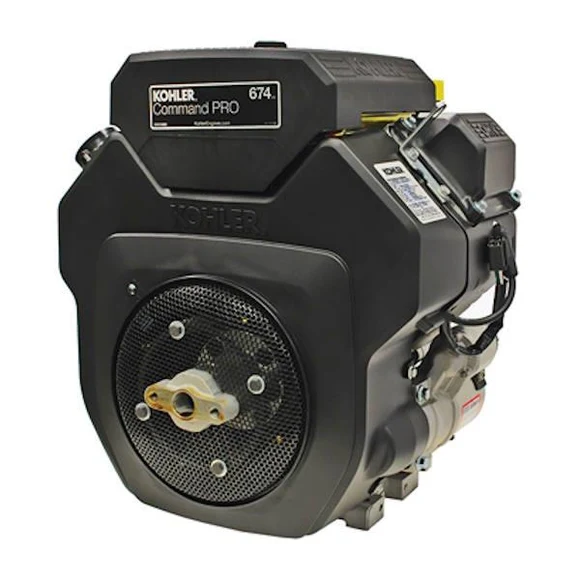

Kohler CH620-3149 Horizontal Command PRO Engine, Replaces CH620-3130
The Kohler CH620-3149 Command PRO Horizontal Engine is a commercial replacement engine designed for select Moridge zero-turn mower applications. This E3 specification replaces Kohler CH620-3130 and may also supersede CH620-3080 and CH18S-62621, subject to complete configuration verification.
Key Features
- Commercial-duty Kohler Command PRO engine
- E3 Moridge zero-turn mower specification
- Replaces Kohler CH620-3130
- Additional cross-references: CH620-3080 and CH18S-62621
- 674cc four-cycle V-twin OHV design
- 19 gross horsepower
- Approximately 35 ft-lb of peak torque
- 12-volt electric starter
- 15-amp charging system
- Full-pressure lubrication
- Full-flow spin-on oil filter
- Cast-iron cylinder liners
- Flat-profile air cleaner
- Mechanical fuel pump
- Center-exit muffler included
- Large 1-1/8-inch keyed PTO shaft
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH620 |
| Specification number | CH620-3149 |
| Manufacturer part number | PA-CH620-3149 |
| Replaces | CH620-3130 |
| Additional cross-references | CH620-3080, CH18S-62621, PA-62621 |
| OEM specification | E3 Moridge ZTR |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Gross power | 19 HP / 14.2 kW |
| Rated speed | 3,600 RPM |
| Peak torque | Approximately 35 ft-lb / 47.5 Nm |
| Peak torque speed | Approximately 2,200 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | 8.5:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel system | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V electric start |
| Charging system | 15 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Lubrication system | Full pressure |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Flat-profile air cleaner |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1-1/8 in. |
| PTO shaft length | Approximately 3.35 in. / 3-11/32 in. |
| Keyway | 1/4 in. wide × approximately 0.13 in. deep |
| Crankshaft end | 7/16-20 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Muffler | Center-exit muffler included |
| Muffler part reference | 24 786 23-S |
| Fuel tank | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate configured weight | 117 lb |
| UPC/GTIN | 885612768780 |
| Warranty | Manufacturer’s limited engine warranty |
