Kohler CH640-3149 Horizontal Engine, Replaces CH640-3075 for SALE
$ 1.664,30
Brand: Kohler EnginesBuy Kohler CH640-3149 Horizontal Engine, Replaces CH640-3075. 674cc V-Twin, electric start, 15-amp charging, 1-1/8″ crankshaft. Replaces CH640-3075.

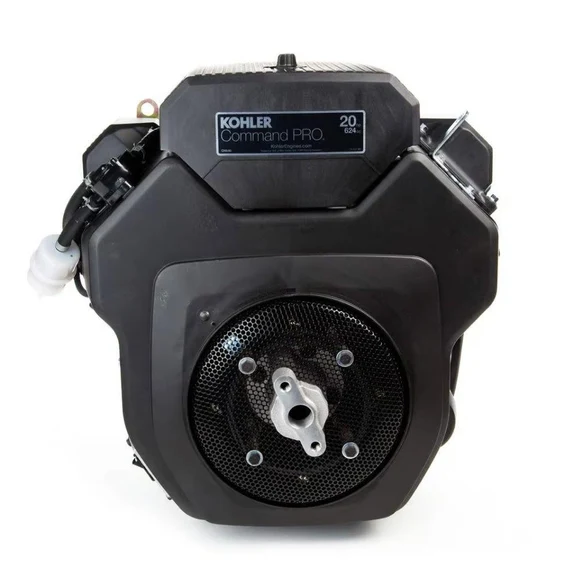

Kohler CH640-3149 Horizontal Engine, Replaces CH640-3075
The Kohler CH640-3149 Horizontal Engine is a 20.5 HP Command PRO V-Twin gasoline engine designed as a replacement for the Kohler CH640-3075. This horizontal-shaft engine is configured for compatible Moridge/Grasshopper and Woods mower applications, making it a suitable replacement for equipment requiring the specific CH640 configuration.
Key Features
- Kohler Command PRO V-Twin engine
- 20.5 HP power rating
- 674cc displacement
- Horizontal crankshaft configuration
- Overhead Valve (OHV) design
- Electric start
- 15-amp charging system
- 1-1/8-inch diameter crankshaft
- Approximately 3-11/32-inch crankshaft length
- Cast-iron sleeved cylinder bore
- Dual-element air cleaner
- Fuel pump included
- Muffler included
- Designed for Moridge/Grasshopper applications
- Suitable for compatible Woods mower applications
- Replaces Kohler CH640-3075
- New engine with manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH640-3149 |
| Part Number | PA-CH640-3149 |
| Engine Series | Command PRO |
| Engine Type | V-Twin OHV |
| Orientation | Horizontal |
| Fuel Type | Gasoline |
| Displacement | 674 cc |
| Power Rating | 20.5 HP |
| Cylinders | 2 |
| Bore | 3.03 in / 77 mm |
| Stroke | 2.64 in / 67 mm |
| Bore Material | Cast-iron sleeved |
| Compression Ratio | 8.5:1 |
| Starting System | Electric Start |
| Charging System | 15 Amp |
| Crankshaft Diameter | 1-1/8 in |
| Crankshaft Length | Approx. 3-11/32 in |
| Crankshaft Orientation | Horizontal |
| Crankshaft End | Keyed |
| Fuel Pump | Yes |
| Air Cleaner | Dual-element |
| Lubrication | Full-pressure lubrication |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Cooling System | Air cooled |
| Fuel Tank | Not included |
| Muffler | Included |
| Dimensions (L × W × H) | Approx. 14 × 17.7 × 19 in |
| Dry Weight | Approx. 117 lb |
| Application | Moridge/Grasshopper, compatible Woods equipment |
| Replacement For | CH640-3075 |
| Additional Replacements | PA-62510, PA-64510 |
| Condition | New |
| Warranty | 3-Year Engine Manufacturer Warranty |
