Kohler CH730-3301 Horizontal Command PRO Engine for SALE
$ 1.514,70
Brand: Kohler EnginesShop the Kohler CH730-3301 Horizontal Command PRO Engine with electric start, 15A charging and a 2.93-inch tapered crankshaft.

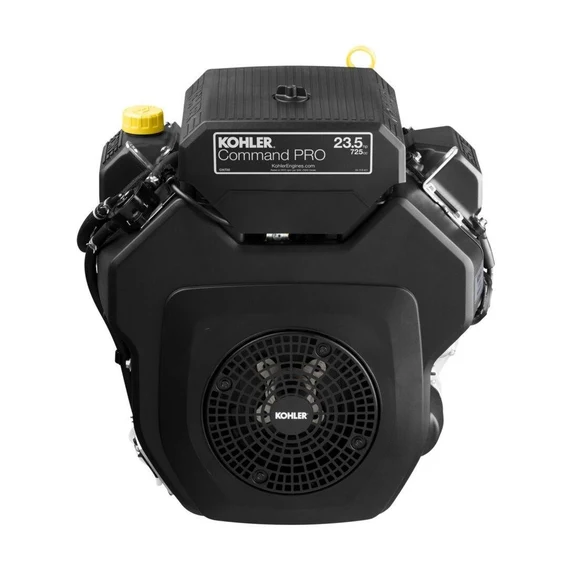

Kohler CH730-3301 Horizontal Command PRO Engine
The Kohler CH730-3301 is a commercial-grade horizontal-shaft engine engineered specifically for select Lincoln Electric Ranger 305 welder/generator applications. This E16 configuration features a specialized 2.93-inch tapered crankshaft, so it should only be used where the original equipment requires the same shaft and installation specifications.
Key Features
- Commercial Kohler Command PRO construction
- 23.5 HP maximum power
- 725cc V-twin OHV engine
- Horizontal-shaft configuration
- Lincoln Ranger 305 welder specification
- E16 application specification
- Specialized tapered crankshaft
- 2.93-inch crankshaft length
- Electric starting system
- 15-amp alternator
- Full-pressure lubrication
- Replaceable automotive-style oil filter
- Fuel pump included
- Sleeved cylinder bores
- Three-year manufacturer engine warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH730 |
| Specification number | CH730-3301 |
| Manufacturer part number | PA-CH730-3301 |
| OEM specification | E16 Lincoln Ranger 305 W |
| Primary application | Select Lincoln Ranger 305 welder/generators |
| Engine type | Four-cycle, V-twin OHV |
| Shaft orientation | Horizontal |
| Maximum power | 23.5 HP / 17.5 kW |
| Displacement | 725cc |
| Maximum torque | 38.4 ft-lb |
| Cooling system | Forced-air cooling |
| Fuel type | Gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Included |
| Fuel tank | Not included |
| Starting system | Electric start |
| Charging system | 15-amp alternator |
| Lubrication | Full-pressure lubrication |
| Oil filter | Included |
| Oil capacity | 2 quarts / 1.9 liters |
| Cylinder bore | Sleeved |
| Crankshaft type | Tapered, non-thrust style |
| Crankshaft length | 2.93 inches |
| Muffler | Not included |
| Approximate length | 14 inches |
| Approximate width | 17.7 inches |
| Approximate height | 19 inches |
| Approximate dry weight | 108 lb |
| Listed shipping weight | 151 lb |
| UPC/GTIN | 885612192882 |
| Warranty | Three-year manufacturer engine warranty |
