Kohler KT735-3077 Vertical 7000 Series Engine, Replaces KT735-3071 for SALE
$ 1.496,00
Brand: Kohler EnginesShop the Kohler KT735-3077 Vertical 7000 Series Engine, Replaces KT735-3071 with electric start, automatic choke and 1-inch shaft. Replaces KT735-3071.

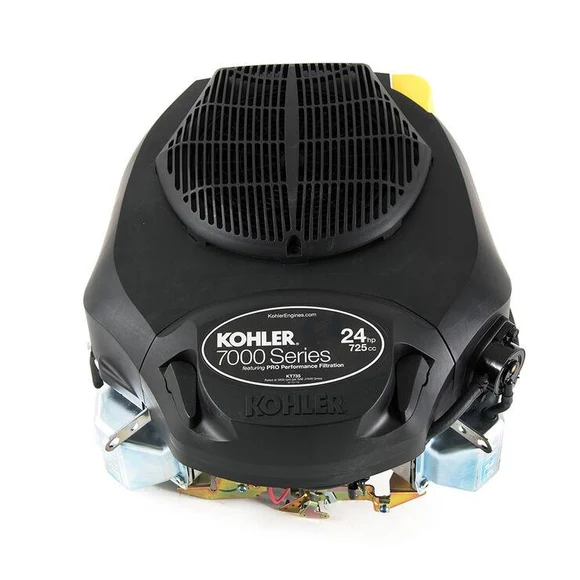

Kohler KT735-3077 Vertical 7000 Series Engine, Replaces KT735-3071
The Kohler KT735-3077 is a 24 HP vertical-shaft V-twin engine built for select MTD-manufactured riding mowers and zero-turn equipment. Manufactured to the E16 MTD specification, it replaces Kohler KT735-3071 when the crankshaft, mounting, wiring, controls and exhaust configuration match the original engine.
Key Features
- Genuine Kohler 7000 Series engine
- 24 HP maximum power rating
- 725cc V-twin, four-cycle OHV design
- Vertical PTO-shaft configuration
- E16 specification for select MTD equipment
- Replaces Kohler KT735-3071
- 40.5 ft-lb maximum torque
- Bendix-drive electric starter
- 15-amp alternator
- Automatic choke
- Remote throttle control
- Heavy-duty air cleaner
- Sleeved cylinder bores
- Fuel pump included
- Three-year manufacturer engine warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Engine series | 7000 Series |
| Engine model | KT735 |
| Specification number | KT735-3077 |
| Manufacturer part number | PA-KT735-3077 |
| Replaces | KT735-3071 |
| OEM specification | E16 MTD |
| Equipment application | Select MTD-manufactured equipment |
| Engine type | Four-cycle, V-twin OHV |
| Shaft orientation | Vertical |
| Maximum power | 24 HP / 17.9 kW |
| Displacement | 725cc |
| Maximum torque | 40.5 ft-lb |
| Cooling system | Air cooled |
| Fuel type | Gasoline |
| Starting system | Bendix-drive electric start |
| Charging system | 15-amp alternator |
| Choke | Automatic |
| Throttle control | Remote |
| Fuel pump | Included |
| Fuel tank | Not included |
| Air cleaner | Heavy-duty air cleaner |
| Cylinder bore | Sleeved |
| Lubrication | Full-pressure lubrication |
| Oil capacity | 2 quarts / 1.9 liters |
| Crankshaft diameter | 1 inch |
| Crankshaft length | 3.16 inches / approximately 3-5/32 inches |
| Muffler | Not included |
| Approximate length | 18.6 inches |
| Approximate width | 17.8 inches |
| Approximate height | 13.9 inches |
| Approximate dry weight | 85 lb |
| Listed shipping weight | 101 lb |
| UPC/GTIN | 885612589705 |
| Warranty | Three-year manufacturer engine warranty |
