Kohler CV224-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start for SALE
$ 459,80
Brand: Kohler EnginesBuy the Kohler CV224-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start with 224cc power, side-pull start, 1.4L fuel tank, and a 25 mm keyed crankshaft.

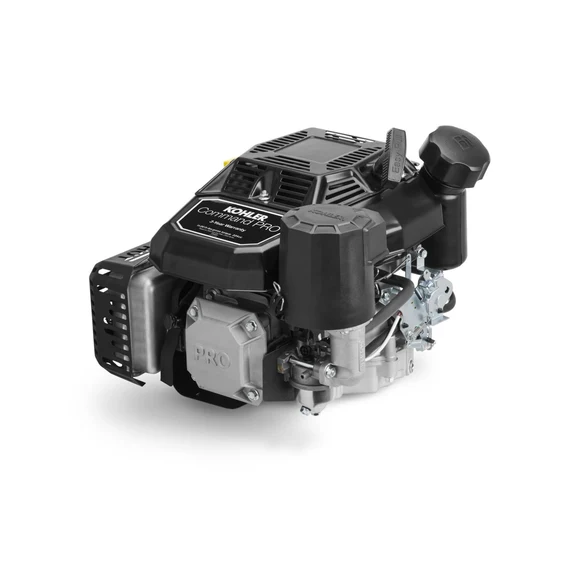

Kohler CV224-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start
The Kohler CV224-3002 Vertical Command PRO Engine delivers commercial-grade power for compatible walk-behind mowers and other vertical-shaft equipment. Its 224cc, single-cylinder OHV design produces 6 gross horsepower and 11.0 ft-lb of peak torque at 2,600 RPM, providing consistent performance in demanding mowing conditions.
Key Features
- Commercial-grade Command PRO engine
- 224cc four-stroke OHV design
- 6 gross horsepower
- 11.0 ft-lb of peak torque
- Easy-Pull side recoil starter
- Accu-Fill 1.4-liter fuel tank
- Consistent-Cut technology
- Quad-Clean cyclonic air cleaner
- Cast-iron cylinder liner
- Full-flow oil filter
- Electronic ignition
- Variable-speed operation
- Heavy flywheel without brake
- 25 mm keyed vertical crankshaft
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Model | CV224-3002 |
| Manufacturer Part Number | PA-CV224-3002 |
| Engine Type | Four-cycle, OHV, single-cylinder |
| Shaft Orientation | Vertical |
| Displacement | 224cc (13.7 cu. in.) |
| Gross Power | 6 HP |
| Peak Torque | 11.0 ft-lb (14.9 Nm) at 2,600 RPM |
| Bore × Stroke | 2.87 × 2.11 in. (73 × 53.5 mm) |
| Compression Ratio | 9.2:1 |
| Starting System | Easy-Pull side recoil |
| Crankshaft Diameter | 25 mm |
| Crankshaft Length | 3.11 in. |
| Keyway | 0.1875 in. |
| Crankshaft End | 7/16-20 drilled and tapped |
| Fuel Type | Unleaded gasoline |
| Fuel Tank | Included |
| Fuel Tank Capacity | 1.4 L (approximately 1.48 US qt.) |
| Muffler | Included |
| Oil Capacity | Approximately 0.625 US qt. (0.59 L) |
| Lubrication | Dual full-pressure and splash |
| Oil Filter | Full-flow filter |
| Cooling System | Forced air |
| Ignition System | Electronic |
| Air Cleaner | Quad-Clean four-stage cyclonic |
| Flywheel | Heavy flywheel without brake |
| Engine Speed | Variable |
| PTO Rotation | Counterclockwise when viewed from PTO end |
| Dry Weight | Approximately 37 lb. (16.8 kg) |
| Dimensions | Approximately 15.7 × 13.9 × 11.1 in. |
| Emissions Compliance | EPA Phase III, CARB Phase III and EU Stage V |
| Primary Application | Commercial walk-behind mowers |
