Raymarine Axiom 2 9” Chartplotter Fishfinder Combo for SALE
$ 1.155,00
Brand: RaymarineBuy the Raymarine Axiom 2 9” Chartplotter Fishfinder Combo with a bright HD touchscreen, six-core processor, GPS and built-in RealVision 3D sonar capability.

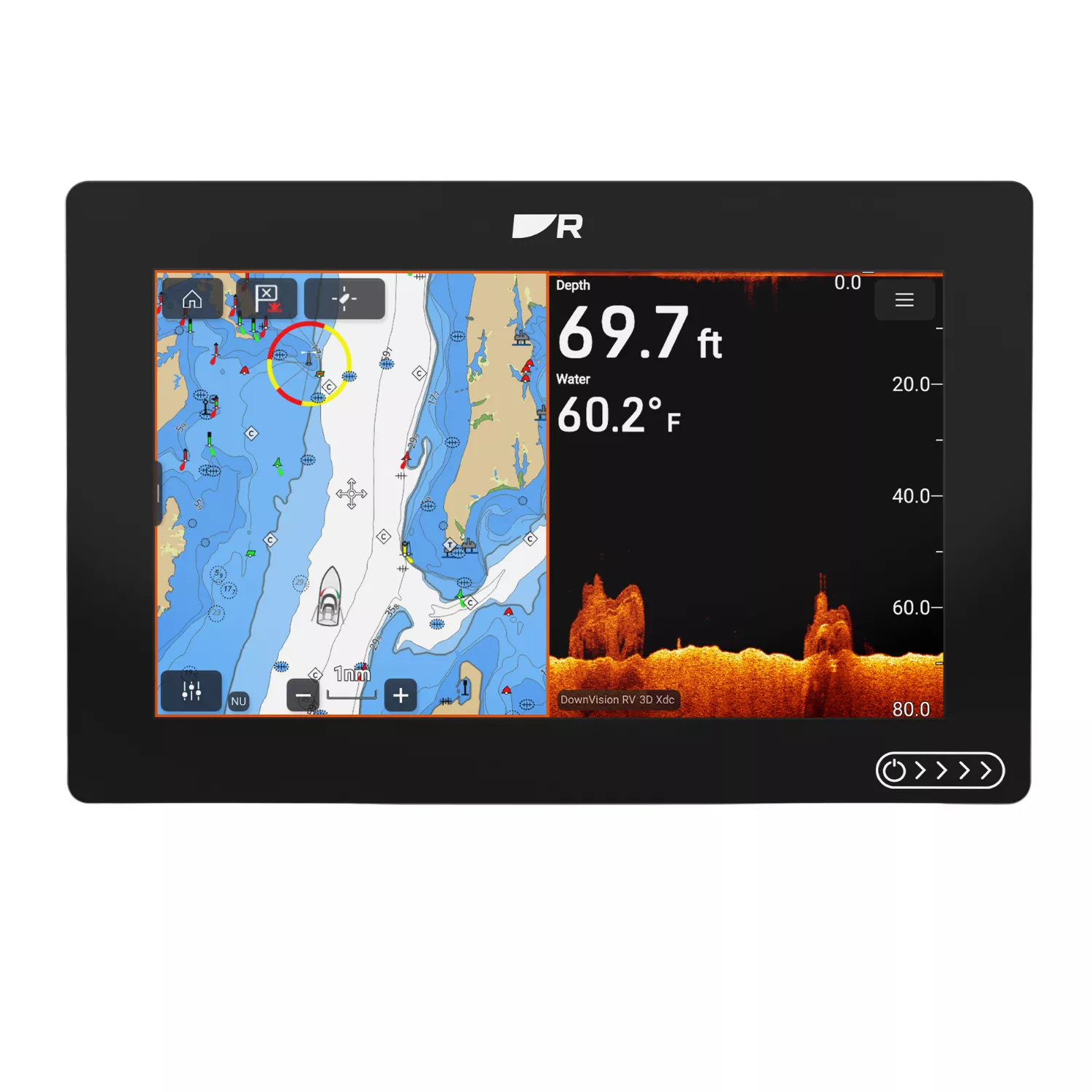

Raymarine Axiom 2 9” Chartplotter Fishfinder Combo
The Raymarine Axiom 2 RV 9” Chartplotter Fishfinder Combo delivers fast navigation, expandable sonar performance, and extensive marine connectivity in a compact multifunction display. Its sunlight-readable 9-inch IPS touchscreen features 1280 × 720 HD resolution and 1,500-nit brightness, providing clear presentation of charts, sonar, radar, video, and vessel information.
Key Features
- 9-inch sunlight-readable IPS touchscreen
- 1280 × 720 HD resolution
- Bright 1,500-nit display
- Fast six-core processor
- Raymarine LightHouse operating system
- HydroTough oleophobic screen coating
- Built-in RealVision 3D sonar
- High CHIRP fish-finding support
- DownVision and SideVision imaging
- Supports 600W conventional sonar
- Built-in 10Hz GPS/GNSS
- 64GB internal storage
- One microSDXC card slot
- Gigabit RayNet Ethernet
- NMEA 2000 connectivity
- Wi-Fi and Bluetooth
- Broad chart compatibility
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 RV 9 |
| Manufacturer SKU | E70723 |
| Display size | 9 inches |
| Display type | IPS touchscreen |
| Resolution | 1280 × 720 HD |
| Brightness | 1,500 nits |
| Processor | Six-core |
| Internal storage | 64GB |
| External storage | 1 × microSDXC slot |
| Sonar | High CHIRP, DownVision, SideVision and RealVision 3D |
| Conventional sonar | 50/200kHz, up to 600W |
| Transducer connection | 25-pin RealVision |
| GPS | 10Hz GPS, GLONASS and BeiDou |
| Ethernet | Gigabit RayNet |
| Marine networking | NMEA 2000 |
| Wireless | Wi-Fi and Bluetooth 4.0 |
| Operating voltage | 8–16V DC |
| Power consumption | 11.98W |
| Waterproof rating | IPX6/IPX7 |
| Bracket-mount dimensions | 265.03 × 187.81 × 178 mm |
| Flush-mount dimensions | 244.08 × 157.78 × 178 mm |
Compatible Charts
- Raymarine LightHouse Charts GEN 2
- Navionics
- C-MAP
- CMOR Mapping
- Florida Marine Tracks
- Standard Mapping
- StrikeLines
- Imray Digital Charts
- S-63 encrypted charts
Package Contents
- Raymarine Axiom 2 RV 9 display
- Trunnion bracket and knobs
- Suncover
- Panel-mount gasket
- Surface/flush-mount hardware
- Power/NMEA 2000 cable
- Documentation
Reviews
There are no reviews yet.
