Raymarine Axiom 2 7” Chartplotter Fishfinder Combo for SALE
$ 850.00
Brand: RaymarineBuy the Raymarine Axiom 2 7” Chartplotter Fishfinder Combo with a bright touchscreen, six-core processor, built-in GPS and RealVision 3D sonar capability.

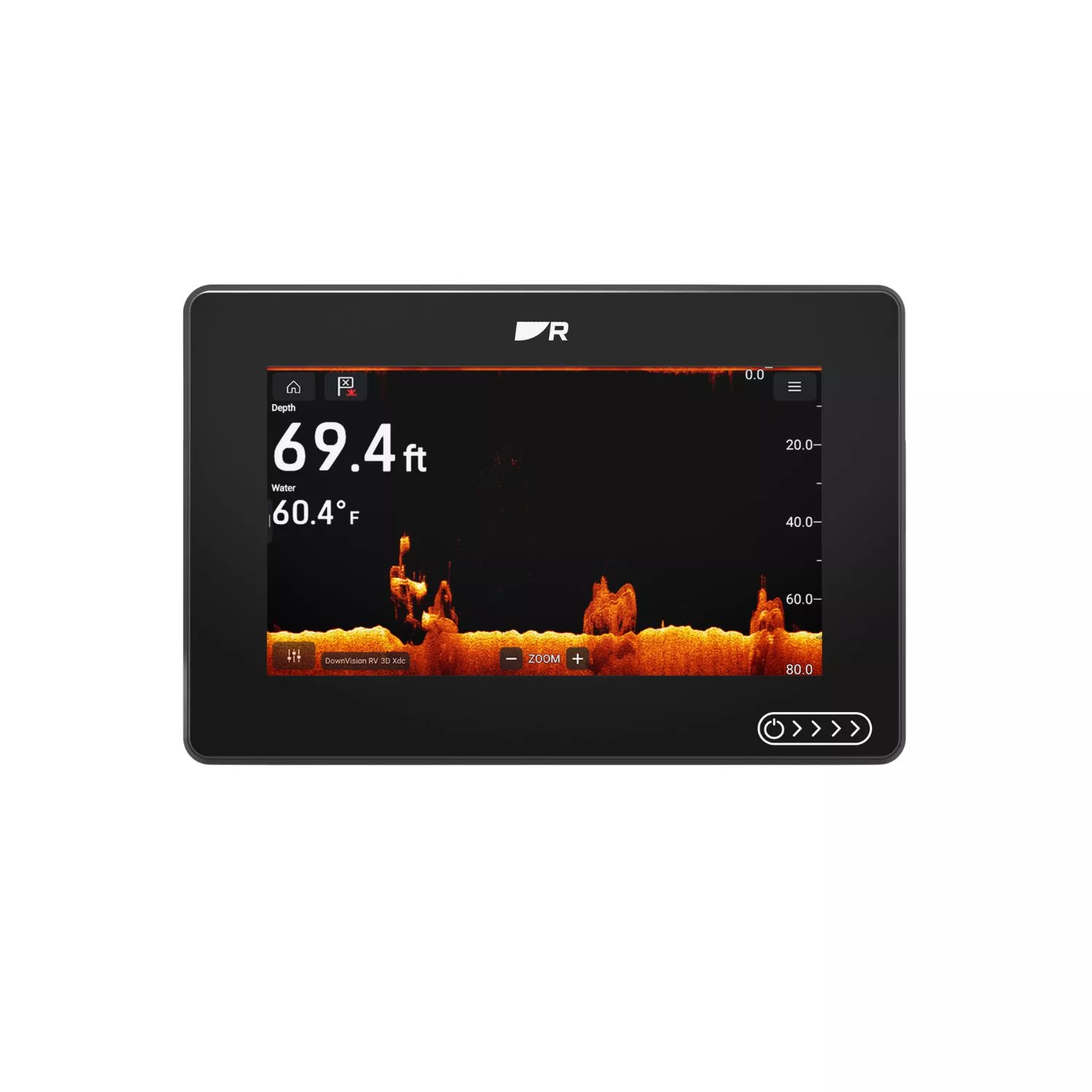

Raymarine Axiom 2 7” Chartplotter Fishfinder Combo
The Raymarine Axiom 2 RV 7” Chartplotter Fishfinder Combo delivers powerful navigation and expandable sonar capability in a compact design suitable for fishing boats, center consoles, and smaller helm stations. Its 7-inch IPS touchscreen provides 1024 × 600 WSVGA resolution and up to 1,800-nit brightness for excellent visibility in direct sunlight.
Key Features
- Compact 7-inch IPS touchscreen
- 1024 × 600 WSVGA resolution
- Up to 1,800-nit screen brightness
- Fast six-core processor
- Raymarine LightHouse operating system
- HydroTough oleophobic screen coating
- Built-in RealVision 3D sonar
- High CHIRP fish-finding support
- DownVision and SideVision imaging
- Supports 600W conventional sonar
- Built-in 10Hz GPS/GNSS
- 64GB internal storage
- One microSDXC card slot
- Gigabit RayNet Ethernet
- NMEA 2000 connectivity
- Wi-Fi and Bluetooth
- Broad marine-chart compatibility
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 RV 7 |
| Manufacturer SKU | E70721 |
| Display size | 7 inches |
| Display type | IPS touchscreen |
| Resolution | 1024 × 600 WSVGA |
| Brightness | Up to 1,800 nits |
| Processor | Six-core |
| Internal storage | 64GB |
| External storage | 1 × microSDXC slot |
| Sonar | High CHIRP, DownVision, SideVision and RealVision 3D |
| Conventional sonar | 50/200kHz, up to 600W |
| Transducer connection | 25-pin RealVision |
| GPS | 10Hz GPS, GLONASS and BeiDou |
| Ethernet | Gigabit RayNet |
| Marine networking | NMEA 2000 |
| Wireless | Wi-Fi and Bluetooth 4.0 |
| Operating voltage | 8–16V DC |
| Power consumption | 9.84W |
| Waterproof rating | IPX6/IPX7 |
| Bracket-mount dimensions | 250.4 × 162.5 × 218 mm |
| Flush-mount dimensions | 201.1 × 133 × 218 mm |
Compatible Charts
- Raymarine LightHouse Charts GEN 2
- Navionics
- C-MAP
- CMOR Mapping
- Florida Marine Tracks
- Standard Mapping
- StrikeLines
- Imray Digital Charts
- S-63 encrypted charts
Package Contents
- Raymarine Axiom 2 RV 7 display
- Trunnion bracket and knobs
- Suncover
- Panel-mount gasket
- Surface/flush-mount hardware
- Power/NMEA 2000 cable
- Documentation
