Raymarine CP370 ClearPulse Sonar Module for SALE
$ 669,90
Brand: RaymarineBuy the Raymarine CP370 ClearPulse Sonar Module with 1kW output, dual-frequency 50/200kHz operation and depth capability up to 5,000 feet.

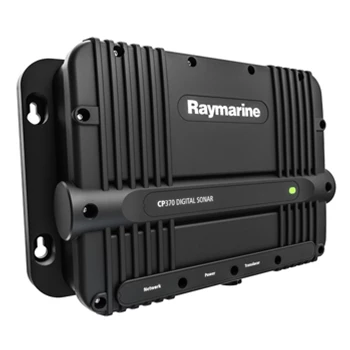

Raymarine CP370 ClearPulse Sonar Module
The Raymarine CP370 ClearPulse Sonar Module adds powerful traditional sonar performance to compatible Raymarine chartplotters and multifunction displays. With up to 1,000 watts RMS output and dual-frequency 50/200kHz operation, the CP370 is suitable for coastal fishing, offshore trolling, and deep-water bottom exploration.
Key Features
- Up to 1,000W RMS sonar output
- Raymarine ClearPulse digital processing
- Dual-frequency 50/200kHz sonar
- 200kHz detail for shallow and coastal waters
- 50kHz penetration for offshore fishing
- Maximum depth capability up to 5,000 feet
- Enhanced fish-target separation
- Automatic clutter and noise filtering
- Reliable bottom tracking at higher speeds
- RayNet Ethernet network connection
- Compatible with 600W and 1kW transducers
- Compact black-box installation
- 12V and 24V DC compatibility
- IPX6 water-resistant construction
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | CP370 |
| Manufacturer SKU | E70297 |
| Sonar technology | ClearPulse digital sonar |
| Output power | Up to 1kW RMS |
| Frequencies | 50kHz and 200kHz |
| Maximum depth | 1,524 m/5,000 ft |
| Network connection | RayNet 10/100Mb Ethernet |
| Transducer connection | Raymarine 8-pin DSM-style |
| Operating voltage | 10.8–31.2V DC |
| Nominal voltage | 12V/24V DC |
| Maximum consumption | 30.6W |
| Current | 3A RMS |
| Fuse rating | 5A |
| Waterproof rating | IPX6 |
| Operating temperature | −10°C to +55°C |
| Dimensions | 299.4 × 205.6 × 84.4 mm |
| Weight | 1.44 kg/3.16 lb |
Compatible Transducer Examples
- Raymarine P58 transom-mount transducer
- Raymarine P74 in-hull/trolling-motor transducer
- Raymarine B60 bronze through-hull transducer
- Raymarine SS60 stainless-steel through-hull transducer
- Raymarine B164 or SS164 1kW transducer
- Raymarine B260 1kW through-hull transducer
- Raymarine B744V multisensor transducer
Actual depth performance depends on the selected transducer, installation, water conditions, vessel speed, and bottom composition.
Package Contents
- Raymarine CP370 sonar module
- 1.5m power cable
- 2m RayNet network cable
- Four mounting screws
- Documentation
