Raymarine RVM1600 Sonar Module with RealVision MAX for SALE
$ 1.100,00
Brand: RaymarineBuy the Raymarine RVM1600 Sonar Module with RealVision MAX with RealVision MAX 3D, 600W High CHIRP, SideVision, DownVision and separate 1kW CHIRP support.

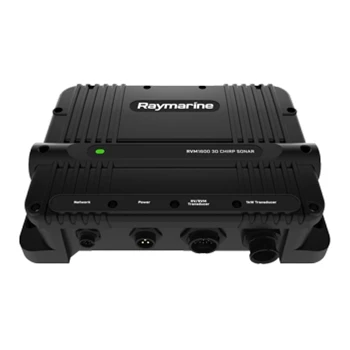

Raymarine RVM1600 Sonar Module with RealVision MAX
The Raymarine RVM1600 Sonar Module with RealVision MAX delivers powerful multi-channel fish-finding performance for serious coastal and offshore anglers. Connected to a compatible Raymarine Axiom chartplotter through RayNet, the module provides High CHIRP, DownVision, SideVision, RealVision 3D, and traditional broadband CHIRP sonar capabilities.
Key Features
- RealVision MAX sonar technology
- 600W High CHIRP sonar channel
- CHIRP DownVision imaging
- Port and starboard SideVision
- Motion-stabilized RealVision 3D
- Separate 1kW broadband CHIRP channel
- CHIRP frequency support from 42–250kHz
- Faster ping rates and advanced processing
- High-contrast fish-target color palettes
- Bottom tracking beyond 1,200 feet with RVM sonar
- Fish detection beyond 400 feet under favorable conditions
- Supports transom- and through-hull transducers
- RayNet connection for Axiom chartplotters
- Compact remote-mounted enclosure
- IPX6 and IPX7 waterproof protection
- Compatible with 12V and 24V systems
Sonar Channels
| Channel | Specification |
|---|---|
| High CHIRP | 600W RMS at 200kHz |
| DownVision | 350kHz |
| SideVision | 350kHz, port and starboard |
| RealVision 3D | 350kHz |
| Traditional CHIRP | Up to 1kW RMS |
| Broadband CHIRP range | 42–250kHz, transducer dependent |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | RVM1600 |
| Manufacturer SKU | E70665 |
| Network connection | 10-pin RayNet |
| RealVision connection | 25-pin RVM transducer port |
| Broadband CHIRP connection | 11-pin 1kW transducer port |
| Power output | 600W RealVision MAX and 1kW CHIRP |
| Operating voltage | 10.8–31.2V DC |
| Nominal voltage | 12V/24V DC |
| Maximum power consumption | 10.4W |
| Current | 2.4A peak; 1.2A RMS |
| Fuse rating | 5A |
| Waterproof rating | IPX6/IPX7 |
| Operating temperature | −25°C to +55°C |
| Dimensions | 299.4 × 188 × 84.4 mm |
| Height with connectors | 205.6 mm |
| Required height with cable bend | 285.6 mm |
| Weight | 1.585 kg/3.49 lb |
Compatible Transducers
RealVision MAX:
- RVM-100 transom-mount transducer
- RVM-400 series through-hull transducers
Optional 1kW CHIRP examples:
- B765LH or B765LM
- TM265LH or TM265LM
- Other compatible 11-pin broadband CHIRP transducers
Package Contents
- Raymarine RVM1600 sonar module
- 1.5m power cable
- 2m RayNet network cable
- Four mounting screws
- Documentation
