Raymarine CP100 Sonar Module with CHIRP DownVision for SALE
$ 418,00
Brand: RaymarineBuy the Raymarine CP100 Sonar Module with CHIRP DownVision with dual-channel CHIRP DownVision for detailed fish, bottom and underwater structure imaging.

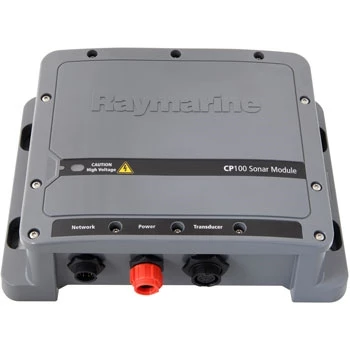

Raymarine CP100 Sonar Module with CHIRP DownVision
The Raymarine CP100 Sonar Module with CHIRP DownVision provides detailed underwater imaging for compatible Raymarine multifunction displays. Using advanced CHIRP technology, the CP100 transmits across a range of frequencies with each pulse, producing clearer targets and more detailed sonar images than traditional single-frequency systems.
Key Features
- Raymarine CHIRP DownVision technology
- Photo-like underwater structure imaging
- Dual-channel CHIRP sonar operation
- DownVision and conical CHIRP displayed simultaneously
- Clear fish-target identification
- Detailed bottom and structure definition
- Depth capability up to approximately 600 feet
- Suitable for freshwater and coastal fishing
- RayNet connection to compatible displays
- Compact remote-mounted enclosure
- Low maximum power consumption
- Compatible with 12V and 24V systems
- IPX6 and IPX7 waterproof protection
Sonar Capabilities
| Sonar Channel | Purpose |
|---|---|
| CHIRP DownVision | Detailed, photo-like bottom and structure imaging |
| Conical CHIRP | Fish targets and traditional water-column presentation |
| Beam coverage | Wide port-to-starboard DownVision beam and conical CHIRP beam |
| Maximum depth | Approximately 600 ft, depending on conditions |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | CP100 |
| Manufacturer SKU | E70204 |
| Sonar technology | CHIRP DownVision |
| Sonar channels | DownVision and conical CHIRP |
| Maximum depth | 183 m/600 ft |
| Network connection | RayNet |
| Operating voltage | 10.8–31.2V DC |
| Nominal voltage | 12V/24V DC |
| Maximum power consumption | 5.6W |
| Current | 1A peak |
| Fuse rating | 5A |
| Waterproof rating | IPX6/IPX7 |
| Operating temperature | 0°C to +55°C |
| Dimensions | 225 × 162 × 72 mm |
| Weight | 0.6 kg/1.32 lb |
Compatible Transducer Examples
- Raymarine CPT-100 transom-mount transducer
- Raymarine CPT-110 plastic through-hull transducer
- Raymarine CPT-120 bronze through-hull transducer
Confirm the connector and hull compatibility before selecting a transducer.
Package Contents
- Raymarine CP100 sonar module
- 1.5m power cable
- Four mounting screws
- Documentation
