Raymarine Axiom 2 Pro 16 RVM with Navionics Plus Chart Bundle for SALE
$ 4.823,50
Brand: RaymarineBuy the Raymarine Axiom 2 Pro 16 RVM with Navionics Plus Chart Bundle with Full HD HybridTouch display, RealVision MAX sonar and Navionics+ U.S. and Coastal Canada charts.

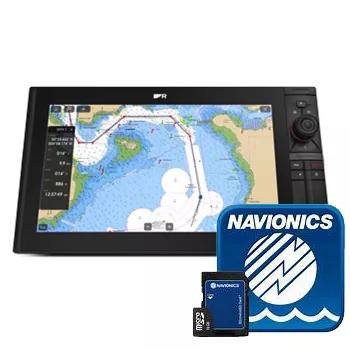

Raymarine Axiom 2 Pro 16 RVM with Navionics Plus Chart Bundle
The Raymarine Axiom 2 Pro 16 RVM Navionics+ Bundle combines a 15.6-inch Full HD HybridTouch display, RealVision MAX sonar, six-core processing, built-in GPS, and Navionics+ U.S. & Coastal Canada charts. It provides advanced navigation and fish-finding performance for serious offshore anglers.
Key Features
- 15.6-inch sunlight-readable IPS display
- 1920 × 1080 Full HD resolution
- Bright 1,200-nit screen
- HybridTouch touchscreen and keypad control
- Powerful six-core processor
- LightHouse operating system
- HydroTough water-repellent screen coating
- Built-in RealVision MAX sonar
- High CHIRP, DownVision and SideVision
- RealVision 3D underwater imaging
- Separate 1kW dual-channel CHIRP sonar port
- Built-in 10Hz multi-constellation GNSS
- Navionics+ U.S. & Coastal Canada chart card
- One-year Navionics+ update subscription
- 64GB internal solid-state storage
- Two front-mounted microSDXC slots
- Dual Gigabit RayNet Ethernet ports
- NMEA 2000, Wi-Fi and Bluetooth
- HDMI output and analog video input
- IPX6 and IPX7 waterproof protection
Navionics+ Coverage
The included NAUS001L chart provides coverage for:
- U.S. coastal waters
- U.S. lakes, rivers and inland waterways
- Alaska and Hawaii
- Coastal British Columbia
- Great Lakes and St. Lawrence Seaway
- New Brunswick and Nova Scotia
- Bermuda and the Bahamas
- Baja California and Gulf of California
- Johnston Atoll and Palmyra Atoll/Kingman Reef
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Display model | Axiom 2 Pro 16 RVM |
| Display SKU | E70658 |
| Chart model | Navionics+ NAUS001L |
| Chart part number | 010-C1366-30 |
| Display size | 15.6 inches |
| Display type | IPS HybridTouch |
| Resolution | 1920 × 1080 Full HD |
| Brightness | 1,200 nits |
| Internal storage | 64GB solid state |
| External storage | 2 × microSDXC slots |
| RealVision MAX output | 600W RMS |
| Traditional CHIRP output | 1kW RMS |
| Maximum 1kW depth | Up to 3,000 ft under optimal conditions |
| GNSS | GPS, Galileo, GLONASS and BeiDou |
| GNSS refresh rate | 10Hz |
| Networking | 2 × Gigabit RayNet and NMEA 2000 |
| Wireless | Dual-band Wi-Fi and Bluetooth 4.0 |
| Operating voltage | 8–32V DC |
| Power consumption | 42.36W at 12V DC |
| Waterproof rating | IPX6/IPX7 |
| Flush-mount dimensions | 452.02 × 258 × 240.4 mm |
