Raymarine Axiom 2 XL 24 Chartplotter for SALE
$ 10.890,00
Brand: RaymarineBuy the Raymarine Axiom 2 XL 24 Chartplotter with a 24-inch WUXGA touchscreen, six-core processor, 64GB storage and advanced marine networking.

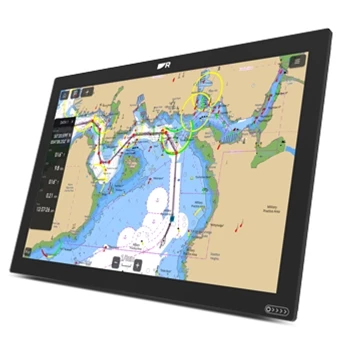

Raymarine Axiom 2 XL 24 Chartplotter
The Raymarine Axiom 2 XL 24 is a flagship glass-bridge chartplotter with a 24-inch WUXGA touchscreen, six-core processor, 64GB storage, and extensive marine networking. It provides large-format control of compatible charts, radar, sonar, autopilot, cameras, engines, and onboard systems.
Key Features
- Large 24-inch glass-bridge touchscreen
- 1920 × 1200 WUXGA resolution
- Spacious 16:10 aspect ratio
- Bright 1,300-nit IPS display
- Powerful six-core processor
- Raymarine LightHouse operating system
- HydroTough water-repellent screen coating
- Automatic ambient-light adjustment
- 64GB internal solid-state storage
- Three Gigabit RayNet Ethernet PoE ports
- NMEA 2000 marine networking
- HDMI input and HDMI output
- Two composite analog video inputs
- Dual-band Wi-Fi and Bluetooth
- Optional RMK-10 remote keypad
- Supports external RVM1600 and CP570 sonar
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 XL 24 |
| Manufacturer SKU | E70664 |
| Display size | 24 inches |
| Display type | IPS touchscreen |
| Resolution | 1920 × 1200 WUXGA |
| Aspect ratio | 16:10 |
| Brightness | 1,300 nits |
| Color depth | 24-bit |
| Touch capability | Two simultaneous touches |
| Processor | Six-core |
| Internal storage | 64GB solid state |
| External storage | Remote card reader required |
| Ethernet | 3 × Gigabit RayNet PoE |
| Marine networking | NMEA 2000 DeviceNet |
| Wireless | Dual-band Wi-Fi and Bluetooth 4.0 |
| Video | HDMI input/output and 2 × composite inputs |
| USB | USB-A, USB-B and Micro-USB accessory port |
| GPS antenna connection | TNC connector |
| Operating voltage | 8–32V DC |
| Power consumption | 92.5W at 12V DC |
| Waterproof rating | IPX6/IPX7 |
| Dimensions | 578.40 × 386.84 × 177.39 mm |
| Weight | 11.3 kg/24.9 lb |
