Raymarine Axiom 2 XL 22 Chartplotter for SALE
$ 8,800.00
Brand: RaymarineBuy the Raymarine Axiom 2 XL 22 Chartplotter with a Full HD touchscreen, six-core processor, 64GB storage and advanced glass-bridge networking.

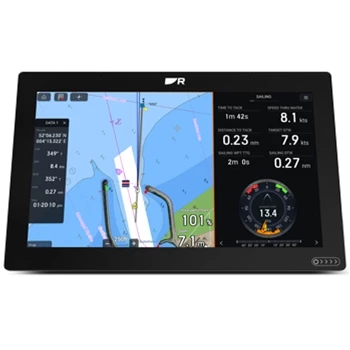

Raymarine Axiom 2 XL 22 Chartplotter
The Raymarine Axiom 2 XL 22 is a premium glass-bridge chartplotter with a 21.5-inch Full HD touchscreen, six-core processor, 64GB storage, and advanced marine networking. It delivers centralized control of compatible charts, radar, sonar, autopilot, cameras, engines, and onboard systems.
Key Features
- 21.5-inch premium glass-bridge touchscreen
- 1920 × 1080 Full HD resolution
- 1,275-nit sunlight-readable IPS display
- Powerful six-core processor
- Raymarine LightHouse operating system
- HydroTough water-repellent screen coating
- Automatic ambient-light adjustment
- 64GB internal solid-state storage
- Three Gigabit RayNet Ethernet PoE ports
- NMEA 2000 marine networking
- HDMI input and HDMI output
- Two composite analog video inputs
- Dual-band Wi-Fi and Bluetooth
- Optional RMK-10 remote keypad
- Compatible with Raymarine radar and autopilot
- Supports RVM1600 and CP570 sonar modules
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 XL 22 |
| Manufacturer SKU | E70663 |
| Display size | 21.5 inches |
| Display type | IPS touchscreen |
| Resolution | 1920 × 1080 Full HD |
| Aspect ratio | 16:9 |
| Brightness | 1,275 nits |
| Color depth | 24-bit |
| Touch capability | Two simultaneous touches |
| Processor | Six-core |
| Internal storage | 64GB solid state |
| External storage | Remote card reader required |
| Ethernet | 3 × Gigabit RayNet PoE |
| Marine networking | NMEA 2000 DeviceNet |
| Wireless | Dual-band Wi-Fi and Bluetooth 4.0 |
| Video | HDMI input/output and 2 × composite inputs |
| USB | USB-A, USB-B and Micro-USB accessory port |
| GPS antenna connection | TNC connector |
| Operating voltage | 8–32V DC |
| Power consumption | 94.25W at 12V DC |
| Waterproof rating | IPX6/IPX7 |
| Dimensions | 533.56 × 326.33 × 180.75 mm |
| Weight | 9.9 kg/21.83 lb |
