Si-Tex SP120C Color Autopilot with Virtual Feedback

Enjoy easier cruising, fishing, and long-distance navigation with the Si-Tex SP120C Color Autopilot. Designed for hydraulic, mechanical, and solenoid-controlled steering systems, the SP120C combines straightforward operation with accurate automatic steering.

Its Virtual Feedback technology calculates steering movement without requiring a conventional rudder-feedback sensor in compatible outboard applications. This simplifies installation while maintaining responsive and dependable course control.

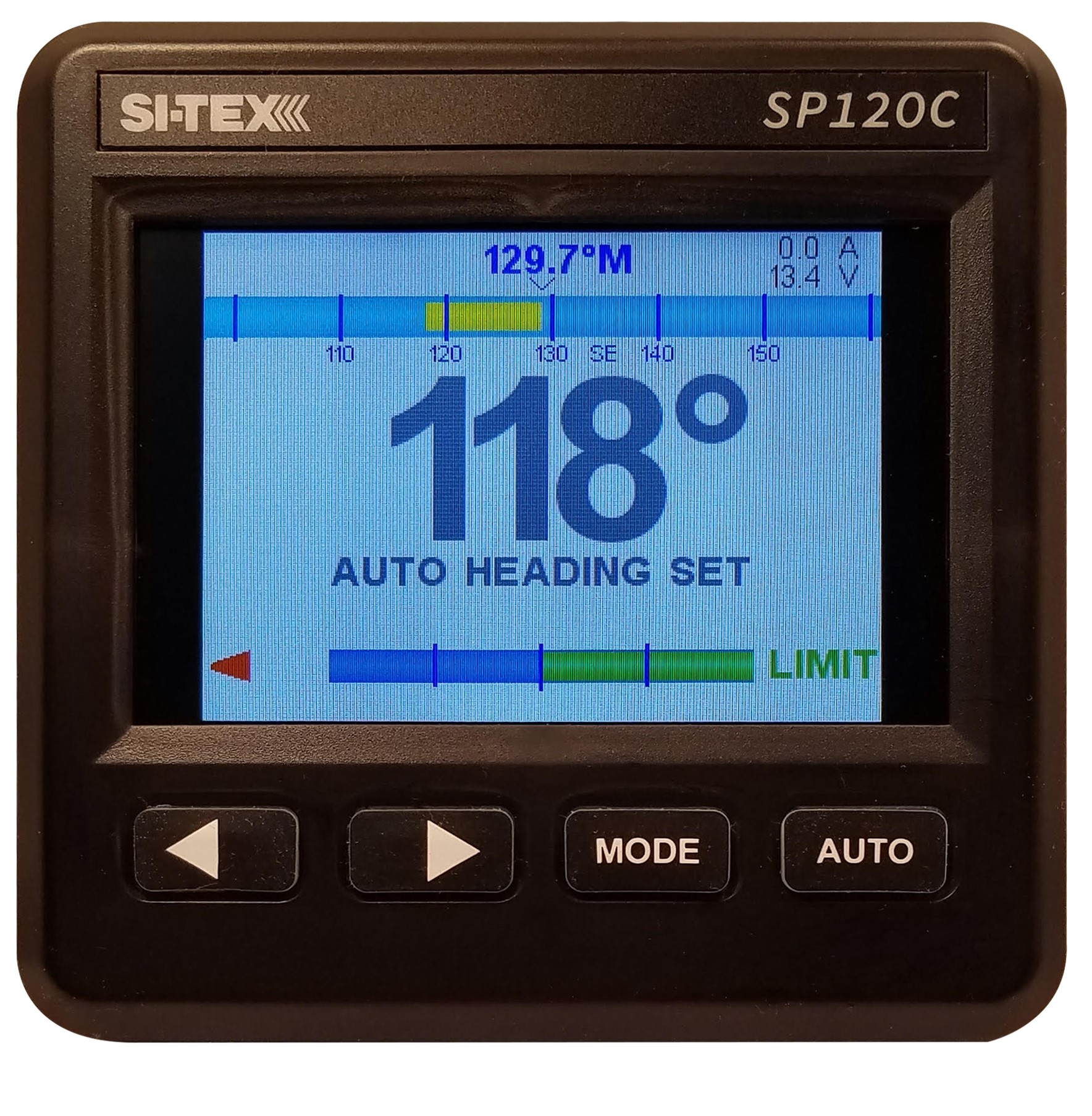

Compact Color Control Head

The compact 110 × 110 mm control head features an easy-to-read color LCD that simultaneously presents the vessel’s actual compass heading, selected heading, and rudder-angle information.

All primary system connections attach directly to the rear of the control head, eliminating the need for a separate junction box and reducing installation complexity.

High-Performance 9-Axis Compass

A 9-axis electronic rate gyro compass supplies accurate heading and motion information to the autopilot. This helps the SP120C respond efficiently to changing sea conditions and maintain a smoother, more consistent course.

The system provides course detection accuracy of less than one degree and supports selectable steering adjustments for different vessel characteristics.

GPS and Chartplotter Integration

Connect a compatible GPS or chartplotter through the NMEA 0183 interface to use Speed Over Ground and Course Over Ground data. The autopilot can then steer toward selected waypoints or follow programmed routes.

NMEA 0183 compass-heading output is also available for compatible multifunction displays and radar/chart-overlay applications.

Autopilot Steering Modes

• Manual Mode: Provides push-button power steering
• Auto Mode: Maintains the selected magnetic heading
• GPS Mode: Steers toward waypoints or follows routes
• Wind Mode: Steers relative to wind data when connected to a compatible wind sensor

Key Features

• Bright, easy-to-read color LCD
• Virtual Rudder Feedback for compatible outboard installations
• No separate rudder-feedback sensor required in Virtual Feedback mode
• Designed for smaller vessels up to approximately 38 feet
• Compatible with hydraulic, mechanical and solenoid steering
• High-performance 9-axis rate gyro compass
• Displays actual and selected headings simultaneously
• Calculated rudder-angle indication
• NMEA 0183 GPS and chartplotter input
• Uses GPS SOG and COG data to improve steering performance
• Compass-heading output for compatible marine displays
• Direct connections without a separate junction box
• Manual, Auto, GPS and Wind steering modes
• IPX6 waterproof control head
• Supports 12V and 24V DC electrical systems
• Maximum drive output current of 15 amps
