Si-Tex T-2041 4kW Radar with 25″ Radome for SALE
$ 2.915,00
Brand: Si-TexBuy the Si-Tex T-2041 4kW Radar with 25″ Radome 36 NM range, color dual-range display, AIS support and fast 48 rpm scanning.

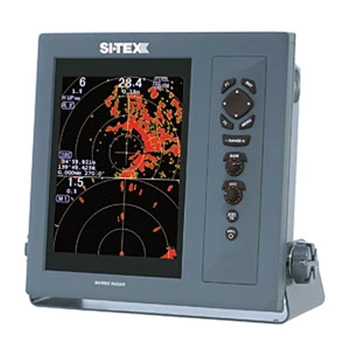

Si-Tex T-2041 4kW Radar with 25″ Radome
Improve safety and situational awareness aboard your vessel with the Si-Tex T-2041 4kW Color Radar. Combining a compact 25-inch enclosed radome with professional radar functions, this system is ideal for vessels that require dependable performance without the installation space needed for an open-array antenna.
The 4kW transmitter delivers radar coverage up to 36 nautical miles, helping operators detect vessels, shorelines, navigation markers, weather formations, and other potential hazards during daytime, nighttime, or reduced-visibility conditions.
Professional Dual-Range Display
The dual-range function simultaneously presents short- and long-range radar images on the same screen. This allows you to closely monitor nearby traffic while maintaining awareness of distant vessels, coastlines, and developing weather conditions.
The high-visibility 10.4-inch color TFT display provides eight selectable echo colors and supports multiple radar presentation modes, including Head Up, North Up, Course Up, and Waypoint Up.
Clear Target Identification
True Trail technology helps distinguish moving targets from stationary objects such as land and buoys. Interference rejection reduces unwanted radar signals, while target expansion makes smaller or weaker targets easier to identify.
Selectable 24 or 48 rpm antenna rotation provides standard scanning for general navigation and faster updates for high-speed vessels or congested waterways.
AIS and Collision-Avoidance Support
The radar supports AIS target presentation when connected to compatible AIS and navigation equipment. CPA and TCPA alarms help operators evaluate potential collision risks. An optional Automatic Tracking Aid is available for tracking up to 50 radar targets.
Key Features
- Powerful 4kW radar transmitter
- Compact 25-inch enclosed radome
- Maximum detection range up to 36 nautical miles
- 10.4-inch color TFT LCD
- Dual-range split-screen radar presentation
- Selectable 24 or 48 rpm scanning
- True Trail moving-target identification
- Target expansion and interference rejection
- Head Up, North Up, Course Up and Waypoint Up modes
- Electronic Bearing Line and Variable Range Marker
- True and relative bearing display
- Parallel index navigation function
- AIS target-display capability
- CPA and TCPA collision-risk alarms
- Optional 50-target Automatic Tracking Aid
- NMEA 0183 connectivity
- IPX6-protected scanner unit
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Si-Tex |
| Model | T-2041 |
| Product type | Color marine radar |
| Transmitter output | 4kW peak |
| Antenna type | Enclosed radome |
| Radome diameter | 25 inches |
| Maximum range | 36 nautical miles |
| Rotation speed | 24 or 48 rpm |
| Transmitting frequency | 9410 MHz ±30 MHz |
| Horizontal beamwidth | 3.9° |
| Vertical beamwidth | 25° |
| Display | 10.4-inch color TFT LCD |
| Display resolution | 480 × 640 pixels |
| Echo colors | Eight levels |
| Presentation modes | Head Up, North Up, Course Up and Waypoint Up |
| Display formats | PPI, PPI/PPI and PPI/NAV |
| Range units | NM, km and statute miles |
| Data interface | NMEA 0183 |
| Power supply | 10.8–31.2 VDC |
| Power consumption | 65W or less |
| Scanner water protection | IPX6 |
| Display water protection | IPX5 |
| Optional target tracking | Up to 50 ATA targets |
