Si-Tex T-2040-3 4kW Color Radar with 3.5′ Open Array for SALE
$ 3,600.00
Brand: Si-TexBuy the Si-Tex T-2040-3 4kW Color Radar with 3.5′ Open Array 48 NM range, dual-range display, AIS interface and fast 48 rpm scanning.

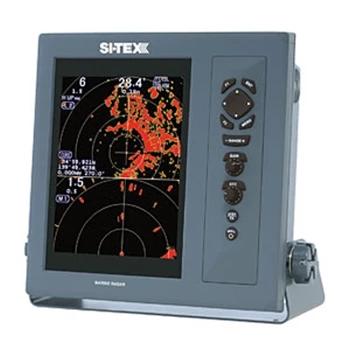

Si-Tex T-2040-3 4kW Color Radar with 3.5′ Open Array
Navigate challenging coastal and offshore waters with the Si-Tex T-2040-3 4kW Color Radar with 3.5′ Open Array. Designed for commercial operators and serious recreational boaters, this professional marine radar combines long-range detection, detailed target presentation, and dependable performance in demanding marine environments.
The powerful 4kW transmitter and open-array antenna provide a maximum detection range of up to 48 nautical miles. Dual-speed antenna rotation supports both standard 24 rpm operation and fast 48 rpm scanning, making the radar suitable for high-speed vessels, river navigation, and congested waterways.
Dual-Range Radar Display
The dual-range function divides the screen into two independent radar views. Operators can monitor nearby traffic on a short-range scale while simultaneously watching weather, coastlines, and distant vessels on a longer-range scale.
The True Trail function helps distinguish moving targets from stationary objects such as land and navigation buoys. Target expansion and interference rejection further improve radar-image clarity in busy or difficult operating conditions.
AIS and Target-Tracking Capability
An AIS interface allows compatible AIS targets to appear on the radar display, helping operators monitor vessel movements and assess collision risks. The system supports CPA and TCPA alarms when the required navigation data is connected. An optional Automatic Tracking Aid can track up to 50 radar targets.
Key Features
- Professional 4kW marine radar system
- 3.5-foot open-array antenna
- Maximum range up to 48 nautical miles
- Dual-range split-screen presentation
- Selectable 24 or 48 rpm antenna rotation
- True Trail identification of moving targets
- Target expansion and interference rejection
- Head Up, North Up, Course Up and Waypoint Up modes
- True or relative bearing presentation
- Electronic Bearing Line and Variable Range Marker
- Parallel indexing for accurate navigation
- AIS interface with CPA and TCPA alarms
- Optional 50-target Automatic Tracking Aid
- NMEA 0183 navigation-data connectivity
- Suitable for commercial and larger recreational vessels
Technical Specifications
| Specification | Details |
|---|---|
| Model | Si-Tex T-2040-3 |
| Radar output | 4kW peak |
| Antenna type | Open array |
| Antenna size | 3.5 feet |
| Maximum range | 48 nautical miles |
| Rotation speed | 24 or 48 rpm |
| Transmitting frequency | 9410 MHz ±30 MHz |
| Display | 10.4-inch color TFT LCD |
| Display resolution | 480 × 640 pixels |
| Presentation modes | Head Up, North Up, Course Up, Waypoint Up |
| Display formats | PPI, PPI/PPI and PPI/NAV |
| Range units | Nautical miles, kilometers or statute miles |
| Data interface | NMEA 0183 |
| Input voltage | 10.8–31.2 VDC |
| Scanner protection | IPX6 |
| Display protection | IPX5 |
| Optional tracking | 50-target ATA |
