Si-Tex SVS-880CF with External Antenna for SALE

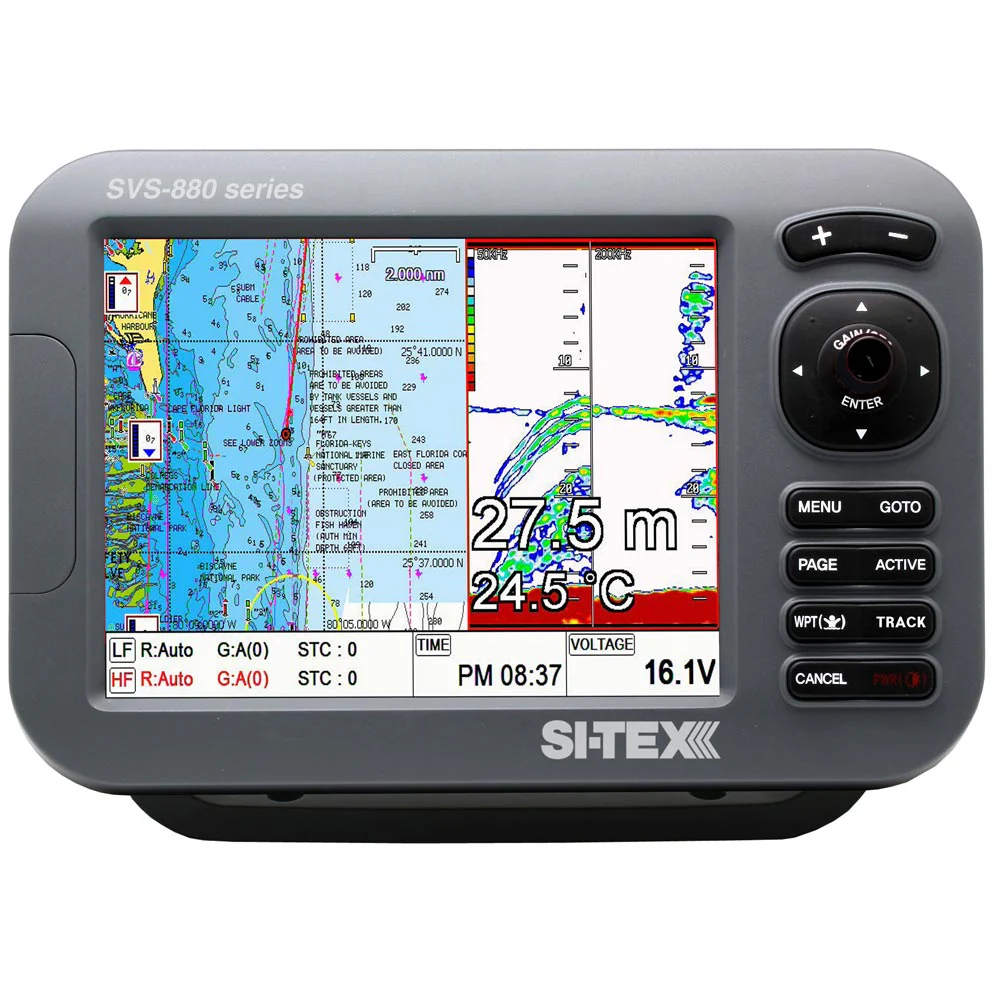

Si-Tex SVS-880CF with External Antenna

The Si-Tex SVS-880CF with External Antenna combines an 8-inch marine chartplotter with a powerful dual-frequency fishfinder. Its bright 800 × 600 color LCD with LED backlighting provides clear chart, navigation, and sonar information in varying daylight conditions.

A 52-channel multi-constellation GNSS receiver supports GPS, GLONASS, Galileo, and QZSS. Paired with the external antenna, it delivers dependable positioning—especially useful on enclosed helms or installations where an internal antenna may have a restricted view of the sky.

The integrated 600W sonar operates at 50/200 kHz and supports single- or dual-frequency viewing, bottom lock, bottom zoom, and A-scope modes. Automatic or manual gain and range controls help anglers identify fish, bottom structure, and changing depth conditions.

Compatible with C-MAP MAX and Navionics Gold cartography, the SVS-880CF can store up to 30,000 waypoints, 50,000 track points, and 100 routes. NMEA 0183 connectivity allows integration with compatible marine electronics, making it suitable for fishing boats, cruising vessels, sailboats, and light-commercial applications. These specifications are documented in the official SI-TEX operation manual and product flyer.

Key Features

• 8-inch color LCD with LED backlighting
• 800 × 600-pixel screen resolution
• External GPS/GNSS antenna configuration
• 52-channel multi-constellation GNSS receiver
• Supports GPS, GLONASS, Galileo, and QZSS
• 600W dual-frequency 50/200 kHz sonar
• Single- and dual-frequency sonar display
• Bottom lock, bottom zoom, and A-scope modes
• Compatible with C-MAP MAX and Navionics Gold charts
• Capacity for 30,000 waypoints and 50,000 track points
• Stores up to 100 routes
• NMEA 0183 input and output
• Arrival, anchor, XTE, timer, and user-line alarms
• Video input for compatible onboard cameras
• 12–36V DC operating voltage

Technical Specifications
