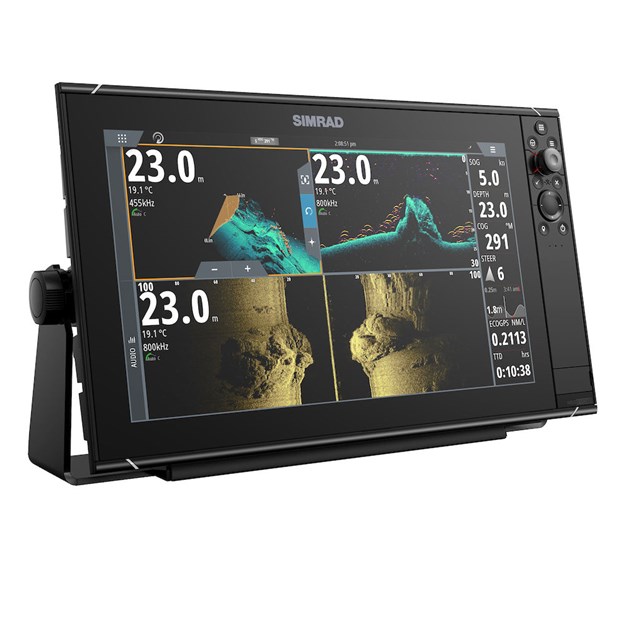

Simrad NSS16 evo3S Chartplotter Fishfinder
The Simrad NSS16 evo3S is a premium 16-inch chartplotter fishfinder featuring a Full HD SolarMAX IPS touchscreen, fast iMX 8 processor, preloaded C-MAP US Enhanced charts, integrated 1kW CHIRP sonar and internal 10Hz GPS. Extensive networking supports Simrad radar, autopilot, AIS, sonar modules and connected vessel systems.
Key Features
- 16-inch Full HD SolarMAX IPS touchscreen
- 1920 × 1080-pixel resolution
- Bright 1,200-nit display
- Optically bonded screen
- Multi-touch, keypad and rotary-dial controls
- High-performance iMX 8 processor
- Preloaded C-MAP US Enhanced charts
- Internal 10Hz multi-constellation GNSS receiver
- Built-in 1kW CHIRP echosounder
- Two nine-pin xSonic transducer ports
- Active Imaging and ForwardScan support
- ActiveTarget live-sonar compatibility
- StructureScan 3D and S5100 compatibility
- Simrad HALO radar integration
- Complete compatible Simrad autopilot control
- NMEA 2000 and dual Ethernet connectivity
- Built-in Wi-Fi and Bluetooth
- HDMI video output
- Two microSD memory-card slots
- SiriusXM WM-4 compatibility
- IPX6 and IPX7 waterproof ratings
- Panel mounting standard; bracket sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 16 inches |
| Display type | SolarMAX IPS, optically bonded |
| Resolution | 1920 × 1080 pixels |
| Brightness | 1,200 nits |
| Viewing angles | 80° top/bottom and left/right |
| Controls | Multi-touch, keypad and rotary dial |
| Processor | iMX 8 high-performance processor |
| Included charts | C-MAP US Enhanced |
| GPS | Internal 10Hz GNSS |
| GPS channels | 34 |
| Position accuracy | Approximately 3 meters |
| Sonar output | Up to 1kW RMS |
| Sonar ports | Two nine-pin xSonic |
| Ethernet | Two five-pin 10/100 Mbit ports |
| NMEA 2000 | One Micro-C port |
| NMEA 0183 | Supported with optional video/data cable |
| Wireless | Internal Wi-Fi and Bluetooth |
| Video | HDMI output; composite inputs with optional cable |
| External storage | Two microSD slots |
| Internal storage | 16GB |
| Waypoints | Up to 6,000 |
| Routes | Up to 500 |
| Tracks | Up to 50 |
| Supply voltage | 10–31.2V DC |
| Maximum consumption | 40W |
| Recommended fuse | 7.5A |
| Waterproof rating | IPX6/IPX7 |
| Operating temperature | 5°F to 131°F |
| Dimensions | 17.19 × 10.08 × 3.82 inches |
| Dimensions with optional bracket | 18.19 × 10.39 × 4.80 inches |
| Weight | 10.25 lb |
| Installation | Panel mount or optional bracket |
| Warranty | Two years |
What’s Included
- Simrad NSS16 evo3S multifunction display
- Preloaded C-MAP US Enhanced charts
- Protective sun cover
- Panel/dash mounting kit
- Edge bezels
- Four-pin power cable
- Installation documentation
Not included: Sonar transducer, gimbal mounting bracket, NMEA 2000 starter kit, radar or autopilot components.
