Simrad NSS9 evo3S Chartplotter Fishfinder with HALO20+ Bundle for SALE
$ 3,055.00
Brand: SimradBuy the Simrad NSS9 evo3S Chartplotter Fishfinder with HALO20+ Bundle with a 9-inch SolarMAX display, C-MAP US charts, 1kW CHIRP sonar and 36NM Doppler radar.

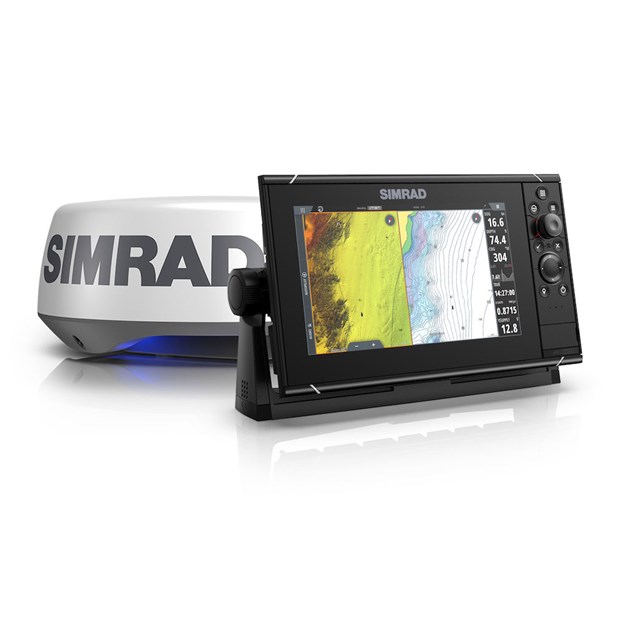

Simrad NSS9 evo3S Chartplotter Fishfinder with HALO20+ Bundle
The Simrad NSS9 evo3S HALO20+ Bundle combines a bright 9-inch SolarMAX IPS chartplotter fishfinder with preloaded C-MAP US Enhanced charts and a 36-nautical-mile Doppler radar. It offers integrated 1kW CHIRP sonar, internal 10Hz GPS, touchscreen and keypad controls, Dual Range radar and VelocityTrack collision awareness.
Key Features
- Nine-inch SolarMAX IPS touchscreen
- 1280 × 720-pixel display resolution
- Bright 1,200-nit optically bonded screen
- Touchscreen, keypad and rotary-dial controls
- High-performance iMX 8 six-core processor
- Preloaded C-MAP US Enhanced charts
- Built-in 10Hz GNSS receiver
- Integrated 1kW CHIRP echosounder
- Two nine-pin xSonic sonar ports
- Active Imaging, ForwardScan and StructureScan support
- ActiveTarget live-sonar compatibility
- HALO20+ pulse-compression radar included
- Radar coverage up to 36 nautical miles
- Dual Range simultaneous radar operation
- Up to 60 RPM at short ranges
- VelocityTrack Doppler technology
- Harbour, Offshore, Weather and Bird modes
- MARPA target tracking
- NMEA 2000 and Ethernet connectivity
- Internal Wi-Fi and Bluetooth
- Two microSD memory-card slots
- HDMI video output
- Bracket or panel-mount installation
- IPX6 and IPX7 display protection
Technical Specifications
NSS9 evo3S Display
| Specification | Details |
|---|---|
| Display size | 9 inches |
| Display type | SolarMAX IPS touchscreen |
| Resolution | 1280 × 720 pixels |
| Brightness | 1,200 nits |
| Viewing angles | 80° top/bottom and left/right |
| Processor | iMX 8 six-core |
| Controls | Multi-touch, keypad and rotary dial |
| Included cartography | C-MAP US Enhanced |
| GPS | Internal 10Hz GNSS |
| GPS channels | 34 |
| Position accuracy | Approximately 3 meters |
| Sonar output | Up to 1kW RMS |
| Sonar ports | Two nine-pin xSonic |
| Ethernet | One five-pin 10/100 Mbit port |
| NMEA 2000 | One Micro-C port |
| NMEA 0183 | Supported with optional data/video cable |
| Wireless | Internal Wi-Fi and Bluetooth |
| Video output | HDMI |
| Memory-card slots | Two microSD |
| Internal storage | 16GB |
| Waypoints | Up to 6,000 |
| Routes | Up to 500 |
| Tracks | Up to 50 |
| Supply voltage | 10–31.2V DC |
| Maximum consumption | 21W |
| Recommended fuse | 5A |
| Waterproof rating | IPX6/IPX7 |
| Dimensions | 11.30 × 6.55 × 3.50 inches |
| Dimensions with bracket | 12.24 × 7.07 × 3.72 inches |
| Weight | 3.11 lb |
| Warranty | Two years |
HALO20+ Radar
| Specification | Details |
|---|---|
| Radar technology | Pulse compression |
| Radome size | 20 inches |
| Maximum range | 36 nautical miles |
| Minimum range | Approximately 200 feet |
| Rotation speed | Up to 60 RPM |
| Dual Range | Yes |
| Doppler technology | VelocityTrack |
| Radar modes | Harbour, Offshore, Weather, Bird and Custom |
| MARPA tracking | 10 targets; up to 20 with Dual Range |
| Beam width | 4.9° horizontal nominal |
| Supply voltage | 10.5–31.2V DC |
| Typical consumption | 20W |
| Maximum consumption | 29W |
| Recommended fuse | 5A |
| Waterproof rating | IPX6 |
| Dimensions | 20-inch diameter × 8.8 inches high |
| Weight | 13 lb without cable |
| Warranty | Two years |
What’s Included
- Simrad NSS9 evo3S multifunction display
- Preloaded C-MAP US Enhanced charts
- Simrad HALO20+ radar radome
- 10-meter radar interface cable
- NSS9 evo3S gimbal mounting bracket
- Bracket knobs
- Dashboard mounting kit
- Edge bezels
- Protective sun cover
- Four-pin display power cable
- Radar mounting hardware
- Warranty card and installation documentation
Not included: Sonar transducer, NMEA 2000 starter kit, autopilot components or heading sensor. A compatible heading sensor is recommended for MARPA tracking and stabilized radar overlay.
