Briggs & Stratton 25T237-0085-F1 Horizontal XR Professional Series Engine for SALE
$ 656,70
Brand: Briggs & Stratton EnginesThe Briggs & Stratton 25T237-0085-F1 Horizontal XR Professional Series Engine delivers 13.5 gross HP and 21 ft-lb of torque from its 420cc OHV design. It features electric and recoil starting, a 9-amp charging system, low-oil protection and a one-inch keyed horizontal shaft.

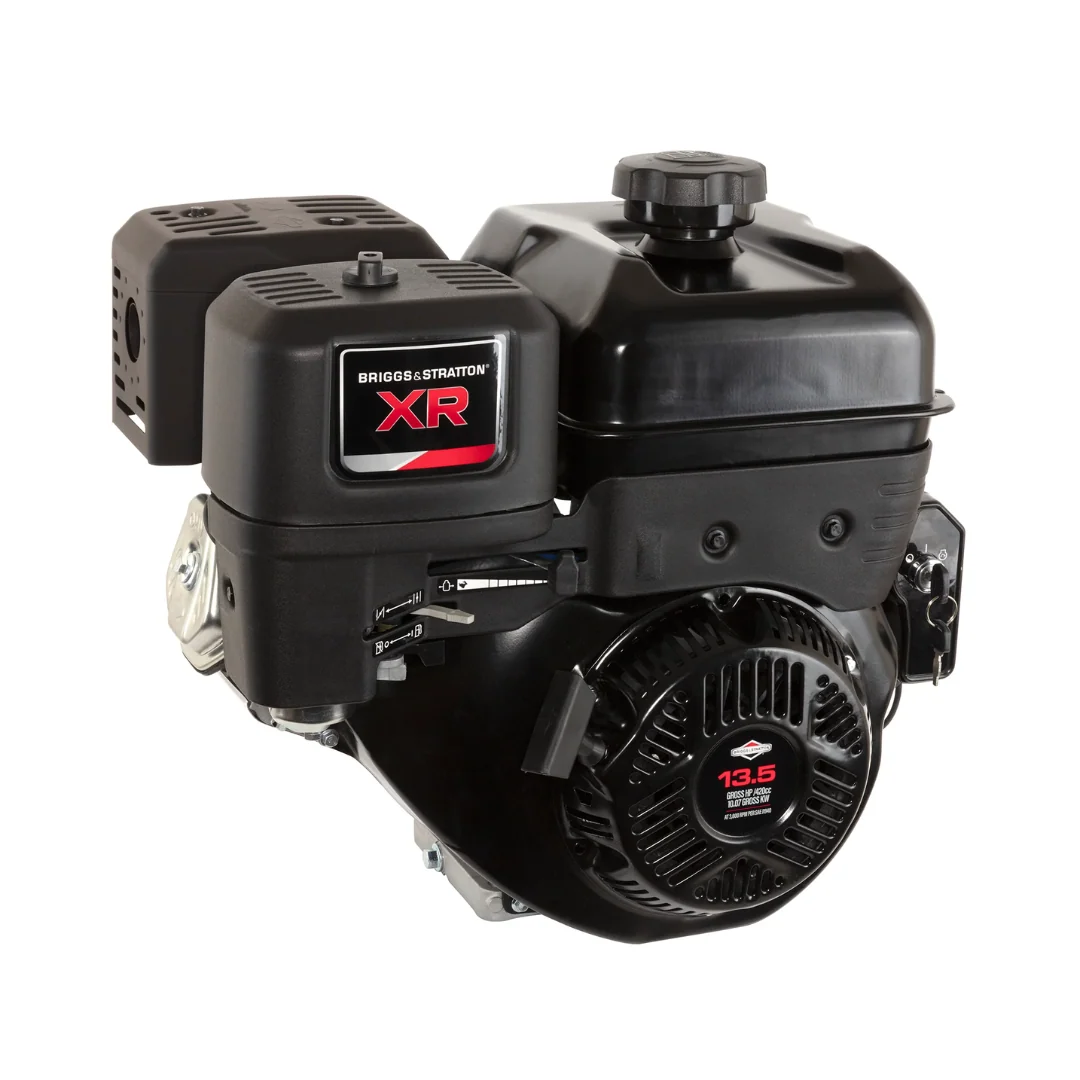

Briggs & Stratton 25T237-0085-F1 Horizontal XR Professional Series Engine
The Briggs & Stratton 25T237-0085-F1 XR2100 Professional Series horizontal engine is designed to deliver dependable power in demanding commercial, industrial and outdoor-equipment applications. Its 420cc single-cylinder OHV design produces 13.5 gross horsepower and 21 ft-lb of gross torque, making it suitable for log splitters, pressure washers, compressors, tillers, pumps, blowers and other compatible machinery.
Key Features
- XR2100 Professional Series engine
- 420cc single-cylinder OHV design
- Rated at 13.5 gross horsepower
- Produces 21 ft-lb gross torque
- Electric start with recoil backup
- Nine-amp charging system
- Dura-Bore cast-iron cylinder sleeve
- PTO-side ball bearing
- Dual Clean air-filtration system
- Magnetron electronic ignition
- Integrated low-oil sensor
- One-inch keyed horizontal crankshaft
- Fuel tank and muffler included
- Suitable for demanding commercial applications
- Supersedes model 25T237-0045-F1
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 25T237-0085-F1 |
| Series | XR2100 Professional Series |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Horizontal |
| Displacement | 420cc |
| Gross horsepower | 13.5 HP |
| Gross torque | 21 ft-lb |
| Maximum speed | 3,600 RPM |
| Starting system | Electric with recoil backup |
| Charging system | 9-amp |
| Crankshaft diameter | 1 in. |
| Crankshaft length | 3-31/64 in. |
| Keyway | 1/4 in. square |
| Crankshaft end | Drilled and tapped 7/16-20 |
| PTO height | Approximately 5-1/4 in. |
| PTO rotation | Counterclockwise when viewed from PTO |
| Ignition | Magnetron electronic |
| Air cleaner | Dual Clean paper element with foam pre-cleaner |
| Cylinder sleeve | Dura-Bore cast iron |
| PTO bearing | Ball bearing |
| Oil capacity | 37 fl. oz. |
| Low-oil sensor | Yes |
| Fuel-tank capacity | Approximately 7 qt. |
| Fuel tank | Included |
| Muffler | Included |
| Approximate dimensions | 14.5 × 18.1 × 18.3 in. |
| Approximate dry weight | 72 lb. |
| EPA compliant | Yes |
| Warranty | 2 years consumer / 1 year commercial |
