Briggs & Stratton 31R907-0022-G1 Vertical Engine with Electric Start for SALE
$ 613,80
Brand: Briggs & Stratton EnginesBriggs & Stratton 31R907-0022-G1 Vertical Engine with Electric StartFFenginewith 17.5 gross HP, electric start with recoil backup, 9-amp alternator, automatic choke, fuel p ump, included muffler, and a 1-inch by 3-5/32-inch crankshaft.E

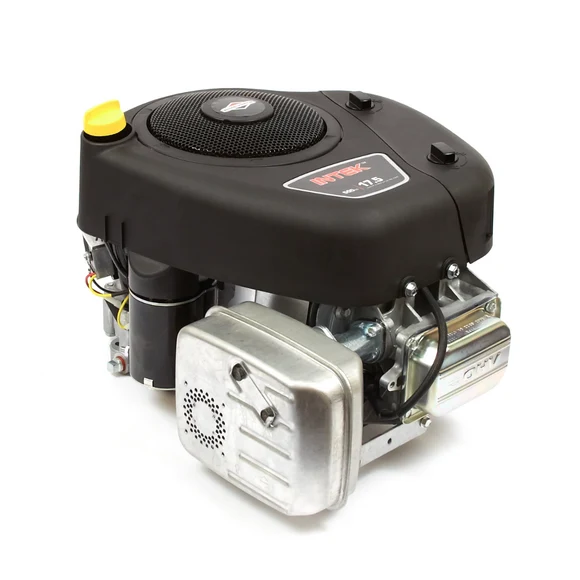

Briggs & Stratton 31R907-0022-G1 Vertical Engine with Electric Start
The Briggs & Stratton 31R907-0022-G1 EXi Series Engine provides dependable replacement power for compatible riding lawn mowers and lawn tractors. Its 500cc single-cylinder OHV design delivers 17.5 gross horsepower while promoting efficient combustion, cooler operating temperatures, and extended valve life.
Key Features
- EXi/Intek Series vertical engine
- 500cc single-cylinder OHV configuration
- 17.5 gross horsepower
- 12-volt electric starter
- Recoil backup starting
- 9-amp charging alternator
- Dura-Bore cast-iron cylinder sleeve
- Magnetron electronic ignition
- AVS anti-vibration system
- Automatic choke
- Float-style carburetor
- Integrated fuel pump
- Tool-free air-cleaner cover
- Muffler included
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 31R907-0022-G1 |
| Series | EXi / Intek |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Vertical |
| Displacement | 500cc |
| Gross horsepower | 17.5 HP |
| Starting system | Electric with recoil backup |
| Charging system | 9 amp |
| Maximum speed | 3,300 RPM |
| Crankshaft diameter | 1 inch |
| Crankshaft length | 3-5/32 inches |
| Shaft keyway | 1/4 inch |
| Shaft end | Drilled and tapped 7/16-20 |
| Bore × stroke | 3.56 × 3.06 inches |
| Oil capacity | 48 oz / 1.5 qt |
| Lubrication | Splash |
| Cylinder sleeve | Dura-Bore cast iron |
| Ignition system | Magnetron electronic |
| Carburetor | Float type |
| Choke | Automatic |
| Governor | Mechanical |
| Air cleaner | Pleated-paper cartridge |
| Fuel pump | Included |
| Fuel tank | Not included |
| Muffler | Included |
| Cooling system | Air-cooled |
| Recommended application | Riding mowers and lawn tractors |
| Warranty | 2-year consumer / 1-year commercialF |
