Briggs & Stratton 613477-0268-J1 Horizontal Vanguard Engine for SALE
$ 1.809,50
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 613477-0268-J1 Horizontal Vanguard Engine with electric start and 20A charging.

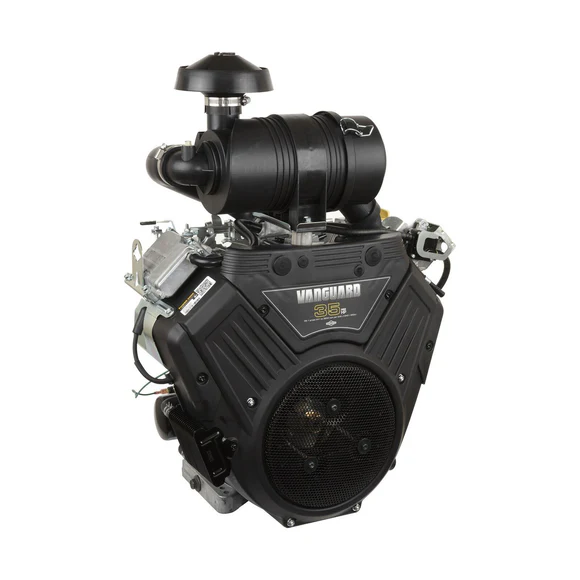

Briggs & Stratton 613477-0268-J1 Horizontal Vanguard Engine
The Briggs & Stratton 613477-0268-J1 Vanguard Engine delivers reliable commercial-grade power for compatible saws, compressors, rollers, pumps and other heavy-duty equipment. Its 993cc Big Block V-Twin configuration produces 35 gross HP, providing strong power delivery with smooth, low-vibration operation.
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Series | Vanguard Big Block |
| Model | 613477-0268-J1 |
| Engine Type | Four-stroke OHV V-Twin |
| Gross Horsepower | 35 HP |
| Displacement | 993cc |
| Shaft Orientation | Horizontal |
| Fuel Type | Gasoline |
| Fuel Delivery | Carburetor with fuel pump |
| Starting System | 12V solenoid-shift electric start |
| Charging System | 20 amp |
| Maximum Engine Speed | 3,600 RPM |
| Bore | 3.37 in |
| Stroke | 3.41 in |
| Compression Ratio | 8.2:1 |
| Crankshaft Type | Straight, keyed |
| Crankshaft Diameter | 1-1/8 in |
| Crankshaft Length | 4 in |
| Crankshaft Keyway | 1/4 in |
| Drilled and Tapped End | 7/16-20 |
| Cylinder Configuration | V-Twin |
| Cylinder Sleeves | Dura-Bore cast iron |
| Ignition | Magnetron electronic ignition |
| Cooling System | Air cooled |
| Air Cleaner | Five-inch cyclonic |
| Lubrication System | Full pressure |
| Oil Filter | Spin-on filter |
| Oil Capacity | 79 fl oz |
| Metric Oil Capacity | Approximately 2.34 L |
| Controls | Remote |
| Approximate Dimensions | 14.92 × 19.53 × 28.54 in |
| Approximate Dry Weight | 125 lb |
| Fuel Tank | Not included |
| Muffler | Not included |
| Emissions Compliance | EPA compliant |
| Commercial Warranty | Three-year limited |
