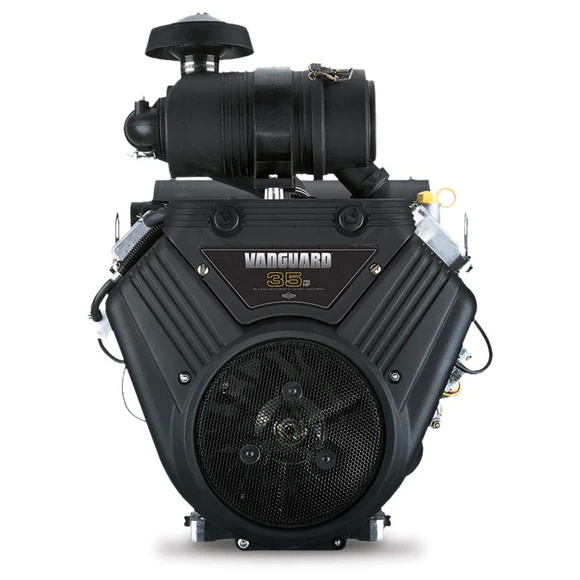

Briggs & Stratton 613477-4246-J1 Horizontal Vanguard Engine, Replaces 613477-3076-J1 for SALE
$ 1.850,20
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 613477-4246-J1 Horizontal Vanguard Engine, Replaces 613477-3076-J1, replacing 613477-3076-J1, with electric start and 20A charging.
Briggs & Stratton 613477-4246-J1 Horizontal Vanguard Engine, Replaces 613477-3076-J1
The Briggs & Stratton 613477-4246-J1 Vanguard Engine provides dependable commercial power for compatible construction, industrial and outdoor power equipment. It is the designated replacement for Briggs & Stratton 613477-3076-J1, subject to verification of the complete installation configuration.
Key Features
- Replaces Briggs & Stratton 613477-3076-J1
- 35 gross HP output
- 993cc Big Block V-Twin
- Horizontal PTO shaft
- 12V solenoid-shift electric starter
- 20-amp charging system
- Advanced Debris Management
- Cyclonic air cleaner
- Full-pressure lubrication
- Replaceable spin-on oil filter
- Integrated oil cooler
- Centrally located oil pump and pickup
- Dura-Bore cast-iron cylinder sleeves
- Remote throttle and choke controls
- EPA-compliant configuration
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Series | Vanguard Big Block |
| Model | 613477-4246-J1 |
| Replaces | 613477-3076-J1 |
| Engine Type | Four-stroke OHV V-Twin |
| Gross Horsepower | 35 HP |
| Displacement | 993cc |
| Shaft Orientation | Horizontal |
| Fuel Type | Gasoline |
| Fuel Delivery | Carburetor with fuel pump |
| Starting System | 12V solenoid-shift electric start |
| Charging System | 20 amp |
| Maximum Engine Speed | 3,800 RPM |
| Bore | 3.37 in |
| Stroke | 3.41 in |
| Compression Ratio | 8.2:1 |
| Crankshaft Type | Straight, keyed |
| Crankshaft Diameter | 1-1/8 in |
| Crankshaft Length | 3 in |
| Crankshaft Keyway | 1/4 in |
| Drilled and Tapped End | 7/16-20 |
| Cylinder Configuration | V-Twin |
| Cylinder Sleeves | Dura-Bore cast iron |
| Cooling System | Air cooled |
| Air Cleaner | Cyclonic |
| Lubrication System | Full pressure |
| Oil Filter | Spin-on filter |
| Oil Cooler | Included |
| Oil Capacity | 79 fl oz |
| Metric Oil Capacity | Approximately 2.34 L |
| Controls | Remote |
| Fuel Tank | Not included |
| Muffler | Not included |
| Commercial Warranty | Three-year limited |
| Recommended Application | Compatible commercial and industrial equipment |
