Honda GX270 RA2 Horizontal Engine with 2:1 Gear Reduction for SALE
$ 627,00
Brand: Honda EnginesBuy the Honda GX270 RA2 Horizontal Engine with 2:1 Gear Reduction with 270cc, 8.4 net HP, 2:1 gear reduction, wet clutch and a 22mm keyed output shaft.

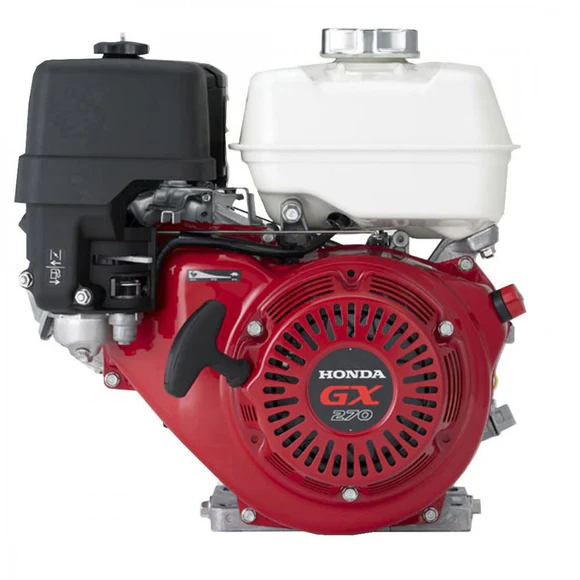

Honda GX270 RA2 Horizontal Engine with 2:1 Gear Reduction
The Honda GX270 RA2 Horizontal Engine with 2:1 Gear Reduction delivers commercial-grade performance for equipment requiring lower output speed, increased usable torque, and automatic clutch engagement. It is well suited to compatible cement mixers, concrete trowels, agricultural equipment, conveyors, and other industrial machinery.
Key Features
- Commercial-grade 270cc OHV engine
- 8.4 net HP at 3,600 RPM
- Integrated 2:1 gear-reduction unit
- Centrifugal wet clutch
- Approximately 1,800 RPM maximum output speed
- 22mm keyed horizontal output shaft
- Heavy-duty recoil starter
- Variable-timing digital CDI ignition
- Honda Oil Alert protection
- Cast-iron cylinder sleeve
- Dual-element air cleaner
Specifications
| Specification | Details |
|---|---|
| Manufacturer model | GX270UT2RA2 |
| Engine type | Air-cooled, four-stroke OHV |
| Displacement | 270cc |
| Net power | 8.4 HP at 3,600 RPM |
| Net engine torque | 14.1 lb-ft at 2,500 RPM |
| Bore × stroke | 77 × 58 mm |
| Compression ratio | 8.5:1 |
| Gear reduction | 2:1 |
| Clutch type | Centrifugal wet clutch |
| Clutch engagement begins | Approximately 1,800 RPM |
| Clutch lock speed | Approximately 2,200 RPM |
| Maximum output speed | Approximately 1,800 RPM |
| Shaft orientation | Horizontal |
| Output shaft | 22mm × 2-23/64″, keyed |
| Shaft end tapping | M8 × 1.25 |
| Keyway | Approximately 1/4″ |
| Starting system | Recoil |
| Ignition | Digital CDI with variable timing |
| Air cleaner | Dual element |
| Engine oil capacity | 1.16 US qt |
| Reduction-case oil capacity | 0.32 US qt |
| Fuel-tank capacity | 5.6 US qt |
| Fuel | Unleaded gasoline, 86 octane or higher |
| Rotation | Counterclockwise from PTO side |
| Emissions configuration | 49-state; not for California |
