Kohler CH270-3157 Horizontal Command PRO Engine, 2-1 Gear Reduction without Clutch for SALE
$ 489,50
Brand: Kohler EnginesBuy the Kohler CH270-3157 Horizontal Command PRO Engine, 2-1 Gear Reduction without Clutch with 208cc power, 7 HP, recoil start, and a 2:1 gear reduction without clutch.

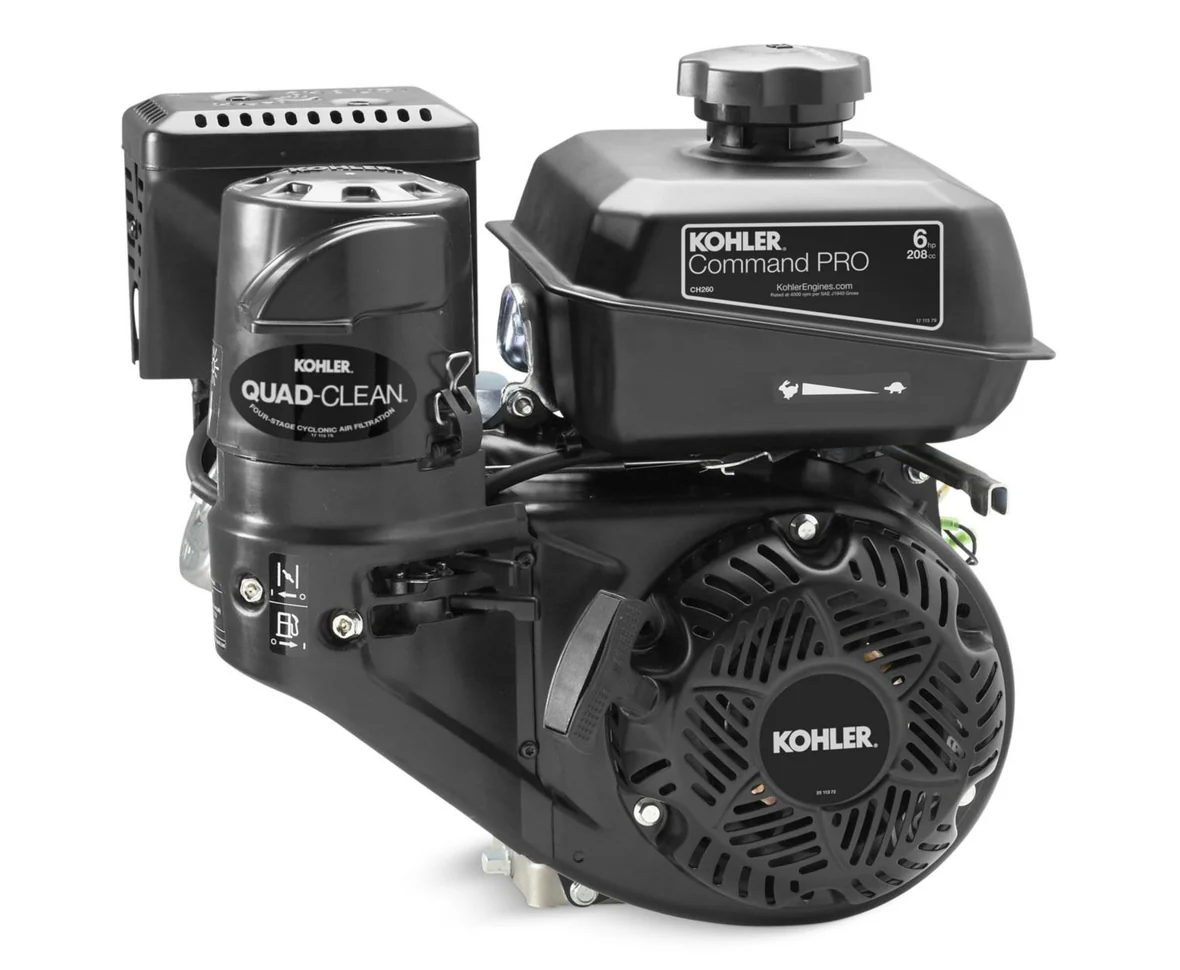

Kohler CH270-3157 Horizontal Command PRO Engine, 2-1 Gear Reduction without Clutch
The Kohler CH270-3157 Horizontal Command PRO Engine combines commercial-grade power with an integrated 2:1 gear-reduction system without a clutch. Its 208cc, single-cylinder OHV design produces 7 gross horsepower and up to 10.5 ft-lb of engine torque, making it well suited to concrete trowels, water pumps, hydraulic power units, construction equipment, and agricultural machinery requiring lower output speed and increased working torque.
Key Features
- Integrated 2:1 gear reduction
- Gearbox configuration without clutch
- 208cc four-stroke OHV engine
- 7 gross horsepower
- 10.5 ft-lb of maximum engine torque
- 20 mm keyed output shaft
- Commercial-grade Command PRO construction
- Forged-steel crankshaft
- Cast-iron cylinder liner
- Quad-Clean cyclonic air cleaner
- Electronic ignition
- Oil Sentry low-oil protection
- Recoil starting system
- Variable-speed control
- Large metal fuel tank
- Oversized muffler with heat shield
- Replaces Kohler CH270-3017
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Model | CH270-3157 |
| Manufacturer Part Number | PA-CH270-3157 |
| Replaces | CH270-3017 |
| Engine Type | Four-cycle, OHV, single-cylinder |
| Shaft Orientation | Horizontal |
| Displacement | 208cc (12.7 cu. in.) |
| Gross Power | 7 HP (5.2 kW) |
| Rated Power Speed | Up to 3,600 RPM* |
| Maximum Engine Torque | 10.5 ft-lb (14.2 Nm) at approximately 3,000 RPM |
| Gear Reduction Ratio | 2:1 |
| Clutch | Not included |
| Approximate Output Speed | Half the engine speed |
| Output-Shaft Diameter | 20 mm |
| Output-Shaft Length | 53 mm |
| Output-Shaft Keyway | 3/16 in. |
| Bore × Stroke | 2.8 × 2.1 in. (70 × 54 mm) |
| Compression Ratio | 8.5:1 |
| Starting System | Recoil |
| Engine Speed | Variable |
| Fuel Type | Unleaded gasoline |
| Fuel Tank | Included |
| Fuel-Tank Capacity | Approximately 4.0 L |
| Engine Oil Capacity | Approximately 0.63 US qt. (0.6 L) |
| Engine Lubrication | Splash |
| Gearbox Lubrication | Shared engine-crankcase oil |
| Separate Gearbox Oil | Not required |
| Cooling System | Forced air |
| Ignition System | Electronic |
| Air Cleaner | Quad-Clean cyclonic |
| Low-Oil Protection | Oil Sentry |
| Muffler | Included with heat shield |
| Dry Weight | Approximately 38.7 lb. (17.5 kg) |
| Primary Applications | Trowels, pumps and hydraulic power equipment |
