Kohler CH395-3038 Horizontal Command PRO Engine with 2:1 Gear Reduction for SALE
$ 1.109,90
Brand: Kohler EnginesBuy the Kohler CH395-3038 Horizontal Command PRO Engine with 2:1 Gear Reduction with 2:1 wet-clutch reduction, electric start, 10A charging and a 22mm shaft.

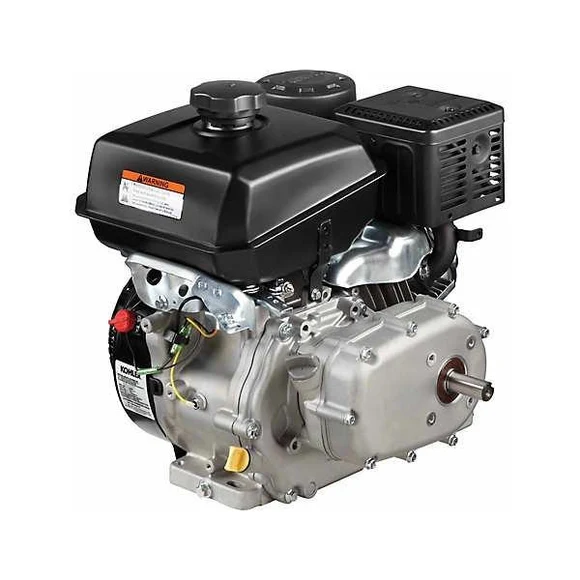

Kohler CH395-3038 Horizontal Command PRO Engine with 2:1 Gear Reduction
The Kohler CH395-3038 Command PRO is a professional-grade horizontal-shaft gasoline engine designed for equipment requiring reduced output speed and strong low-speed torque. Its integrated 2:1 wet-clutch gear-reduction system delivers approximately half the engine speed at the output shaft, making it well suited to compactors, mixers, tillers, pumps, construction equipment, and other belt- or chain-driven machinery.
Key Features
- 277cc Command PRO commercial-grade engine
- 9.5 gross horsepower
- Integrated 2:1 gear reduction
- Centrifugal wet-clutch engagement
- 22mm keyed horizontal output shaft
- Electric start with recoil backup
- 10-amp battery-charging system
- Quad-Clean four-stage cyclonic air filter
- Cast-iron cylinder liner
- Forged-steel crankshaft
- Dual PTO and flywheel-side ball bearings
- Electronic ignition
- Separate engine and gearbox lubrication
- Three-year limited warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler / Rehlko |
| Product series | Command PRO |
| Model | CH395-3038 |
| Manufacturer part number | PA-CH395-3038 |
| UPC / GTIN | 885612197757 |
| Engine type | Four-stroke, single-cylinder OHV |
| Shaft orientation | Horizontal |
| Fuel type | Gasoline |
| Displacement | 277cc |
| Gross power | 9.5 HP |
| Peak torque | Approximately 13.9 lb-ft / 18.8 Nm |
| Bore | 78mm / 3.1 in |
| Stroke | 58mm / 2.3 in |
| Compression ratio | 8.5:1 |
| Cooling system | Forced-air cooled |
| Starting system | 12V electric and recoil start |
| Charging system | 10-amp alternator |
| Ignition | Electronic |
| Governor | Mechanical |
| Speed control | Variable speed |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Lubrication | Splash lubrication |
| Engine oil capacity | Approximately 1.1 L / 1.16 US qt |
| Recommended engine oil | SAE 10W-30; select viscosity for operating temperature |
| Gear reduction | 2:1 |
| Clutch type | Centrifugal wet clutch |
| Reduction drive | Chain and sprocket |
| Gearbox oil capacity | Approximately 0.5 L / 0.52 US qt |
| Recommended gearbox oil | SAE 20W-40 or SAE 20W-50 |
| Output shaft diameter | 22mm |
| Output shaft length | Approximately 52.5mm / 2.07 in |
| Keyway | Approximately 7 × 34mm |
| Shaft-end thread | M8 × 1.25 |
| PTO mounting-face length | Approximately 53mm |
| Cylinder liner | Cast iron |
| Crankshaft | Forged steel |
| Bearings | Dual ball bearings |
| Fuel tank | Metal tank with fuel strainer |
| Maximum operating angle | 25° |
| Approximate shipping weight | 90 lb / 41 kg |
| Warranty | Three-year limited commercial and consumer warranty |
