Kohler CH395-3153 Horizontal Command PRO Engine with 2:1 Gear Reduction with Clutch for SALE
$ 974,60
Brand: Kohler EnginesBuy the Kohler CH395-3153 Horizontal Command PRO Engine with 2:1 Gear Reduction with Clutch with a 2:1 reduction gearbox, centrifugal clutch and 22mm keyed output shaft.

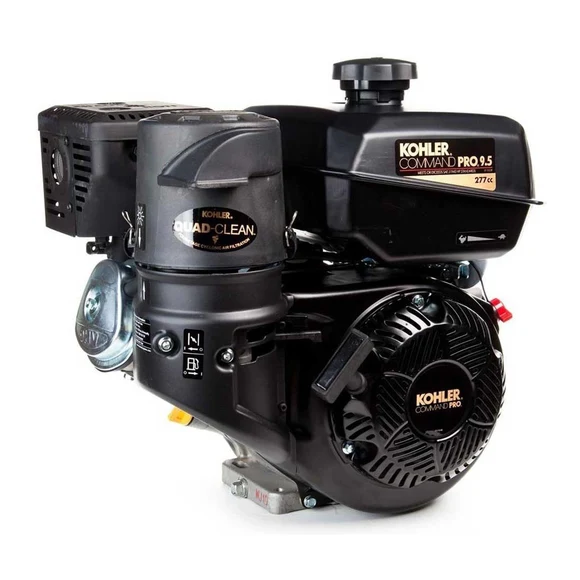

Kohler CH395-3153 Horizontal Command PRO Engine with 2:1 Gear Reduction with Clutch
The Kohler CH395-3153 Command PRO is a professional-grade horizontal engine equipped with an integrated 2:1 reduction gearbox and wet centrifugal clutch. Its 277cc four-stroke OHV design produces 9.5 gross horsepower and 13.9 lb-ft of peak torque, providing dependable power for tillers, utility boats, go-karts, agricultural machinery, and other applications requiring reduced output speed and improved low-speed drive performance.
Key Features
- Replaces Kohler CH395-3018
- 277cc commercial-grade OHV engine
- 9.5 gross horsepower
- 13.9 lb-ft maximum torque
- Integrated 2:1 reduction gearbox
- Wet centrifugal clutch
- Recoil starting
- 22mm keyed output shaft
- M8 × 1.25 threaded shaft end
- Quad-Clean four-stage air filtration
- Oil Sentry low-oil protection
- Forged-steel crankshaft
- Cast-iron cylinder liner
- Large-capacity fuel tank
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kohler / Rehlko |
| Product series | Command PRO |
| Model | CH395-3153 |
| Manufacturer part number | PA-CH395-3153 |
| Replaces | CH395-3018 |
| Engine type | Four-stroke OHV, single-cylinder |
| Shaft orientation | Horizontal |
| Displacement | 277cc (16.9 cu. in.) |
| Gross power | 9.5 HP (7.1 kW) at 4,000 rpm |
| Maximum torque | 13.9 lb-ft (18.8 Nm) at approximately 2,800 rpm |
| Bore × stroke | 3.1″ × 2.3″ (78 × 58 mm) |
| Compression ratio | 8.5:1 |
| Maximum governed speed | Approximately 3,750 rpm |
| Cooling system | Forced-air |
| Ignition system | Electronic |
| Governor | Mechanical, variable speed |
| Starting system | Recoil |
| Charging system | None |
| Gear-reduction ratio | 2:1 |
| Reduction-drive type | Chain and sprocket |
| Clutch type | Wet centrifugal clutch |
| Output speed | Approximately half engine speed |
| Full clutch engagement | Approximately 2,400 engine rpm or higher under load |
| Output shaft diameter | 22mm |
| Shaft type | Straight and keyed |
| Keyway | 7mm wide × 34mm long |
| Shaft-end thread | M8 × 1.25 |
| PTO mounting-face dimension | Approximately 53mm |
| Output rotation | Counterclockwise viewed from output end |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Lubrication system | Splash |
| Engine oil capacity | Approximately 1.16 US qt (1.1 L) |
| Recommended engine oil | SAE 10W-30 |
| Gearbox lubrication | Separate from engine crankcase |
| Gearbox oil type | SAE 20W-40 or 20W-50 |
| Gearbox oil capacity | 0.52 US qt (0.5 L) |
| Gearbox oil interval | Every 50 operating hours |
| Low-oil protection | Oil Sentry |
| Fuel | Unleaded gasoline |
| Fuel tank capacity | Approximately 7.4 US qt (7.0 L) |
| Fuel shutoff valve | Included |
| Controls | Manual throttle and choke |
| Approximate listed weight | 76 lb |
| Warranty | Three-year limited manufacturer warranty |
