Kohler CH440-3286 Horizontal Command PRO Engine for SALE
$ 990,00
Brand: Kohler EnginesBuy the Kohler CH440-3286 Horizontal Command PRO Engine with electric and recoil start, 3A charging, key box and a 1-inch keyed shaft.

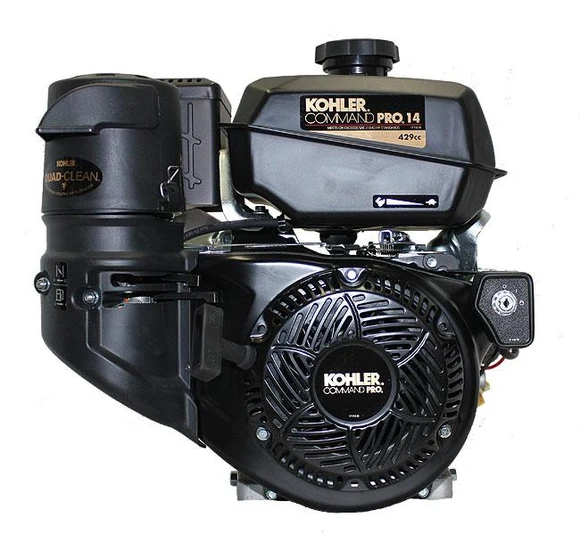

Kohler CH440-3286 Horizontal Command PRO Engine
The Kohler CH440-3286 Command PRO is a commercial-grade horizontal-shaft engine designed to deliver reliable power for demanding equipment. Its 429cc four-stroke OHV design produces 14 gross horsepower and up to 22.7 lb-ft of torque, making it suitable for pressure washers, compressors, pumps, log splitters, compactors, construction equipment, and other industrial applications.
Key Features
- Commercial-grade 429cc OHV engine
- 14 gross horsepower
- 22.7 lb-ft maximum torque
- Recoil and 12V electric starting
- External key switch box
- 3-amp charging system
- 1″ × 3.48″ straight keyed crankshaft
- Quad-Clean four-stage cyclonic air cleaner
- Oil Sentry low-oil protection
- Forged-steel crankshaft
- Cast-iron cylinder liner
- Dual crankshaft ball bearings
- Manual and remote throttle capability
- Large fuel tank and muffler included
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kohler / Rehlko |
| Product series | Command PRO |
| Model | CH440-3286 |
| Manufacturer part number | PA-CH440-3286 |
| UPC / GTIN | 885612769442 |
| Engine specification | E16 Marketing Basic |
| Engine type | Four-stroke OHV, single-cylinder |
| Shaft orientation | Horizontal |
| Displacement | 429cc (24.7 cu. in.) |
| Gross power | 14 HP (10.5 kW) at 3,600 rpm |
| Certified power | Approximately 13.4 HP (10 kW) at 3,600 rpm |
| Maximum torque | 22.7 lb-ft (30.8 Nm) |
| Bore × stroke | 3.5″ × 2.7″ (89 × 69 mm) |
| Compression ratio | 8.0:1 |
| Maximum governed speed | 3,600 rpm |
| Cooling system | Forced-air |
| Ignition system | Electronic |
| Governor | Mechanical, variable speed |
| Starting system | 12V electric and recoil |
| Key switch | External key box included |
| Charging system | 3 amp |
| PTO shaft type | Straight and keyed |
| Shaft diameter | 1″ (25.4 mm) |
| Shaft length | 3.48″ (approximately 88.5 mm) |
| Keyway | 1/4″ |
| Shaft-end thread | Drilled and tapped 3/8″-24 |
| Shaft rotation | Counterclockwise viewed from PTO end |
| PTO support | Dual ball bearings |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Lubrication system | Splash lubrication |
| Oil capacity | 1.4 US qt (1.3 L) |
| Recommended oil | SAE 10W-30 |
| Low-oil protection | Oil Sentry |
| Fuel | Unleaded gasoline |
| Fuel tank capacity | Approximately 7.4 US qt (7.0 L) |
| Fuel shutoff valve | Included |
| Throttle control | Manual and remote, Z-bend connection |
| Choke control | Manual |
| Muffler | Included, EU-noise configuration |
| Heat shield | Included |
| Approximate dimensions | 16.2″ L × 17.8″ W × 17.4″ H |
| Approximate dry weight | 72.8 lb (33 kg) |
| Warranty | Three-year limited manufacturer warranty |
