Kohler CH620-3154 Horizontal Engine, Replaces CH620-3100 for SALE
$ 1.366,20
Brand: Kohler EnginesBuy the Kohler CH620-3154 Horizontal Engine, Replaces CH620-3100 with electric start, control panel, and a 1-1/8 x 4-inch shaft. Replaces CH620-3100.

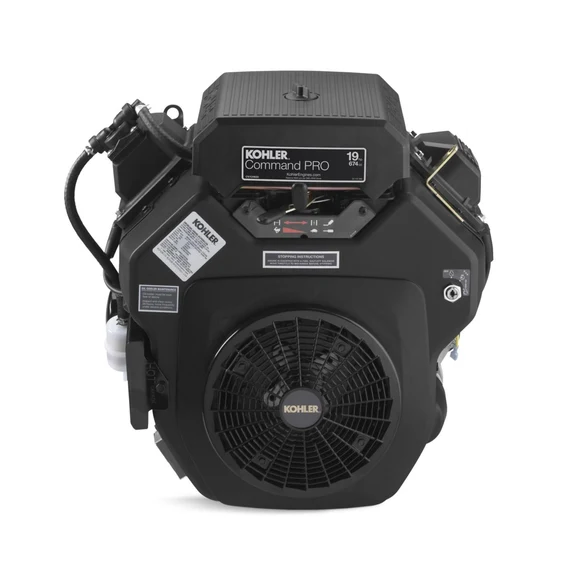

Kohler CH620-3154 Horizontal Engine, Replaces CH620-3100
The Kohler CH620-3154 Horizontal Command PRO Engine is a commercial-grade replacement engine built for demanding power equipment. It supersedes the Kohler CH620-3100 and is also commonly referenced as a replacement for CH620-3003 and CH18S-62501, subject to application verification.
Key Features
- Commercial-grade Command PRO construction
- 674cc V-twin gasoline engine
- 19 HP power output
- Up to 35 ft-lb of torque
- Horizontal keyed crankshaft
- 12-volt electric starting
- 15-amp regulated charging system
- Equipment control panel
- Low-profile air cleaner
- Full-pressure lubrication
- Replaceable full-flow oil filter
- Cast-iron cylinder liners
- Replaces Kohler CH620-3100
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Model | CH620 |
| Specification number | CH620-3154 |
| Manufacturer part number | PA-CH620-3154 |
| Replaces | CH620-3100 |
| Additional cross-references | CH620-3003 and CH18S-62501 |
| Configuration | E16 Basic with low panel and LPAC |
| Engine classification | Commercial |
| Engine type | Four-cycle, V-twin, OHV |
| Crankshaft orientation | Horizontal |
| Displacement | 674cc / 41.1 cu. in. |
| Power output | 19 HP / 14.2 kW |
| Maximum torque | 35 ft-lb / 47.5 Nm at 2,200 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | 8.5:1 |
| Cooling system | Forced-air cooled |
| Fuel type | Unleaded gasoline, 86 octane or higher |
| Fuel system | Carbureted |
| Starting system | Heavy-duty 12-volt electric starter |
| Charging system | 15 amp with regulator |
| Governor | Mechanical |
| Lubrication system | Full-pressure lubrication |
| Oil filter | Replaceable full-flow filter |
| Oil capacity | 2.0 US qt. / 1.9 L |
| Air cleaner | Low-profile air cleaner |
| Control panel | Included |
| Crankshaft type | Straight and keyed |
| Crankshaft diameter | 1-1/8 in. |
| Crankshaft length | 4 in. |
| Keyway | 1/4 in. |
| Internal shaft thread | 7/16-20, drilled and tapped |
| Reduction system | None |
| Fuel tank included | No |
| Muffler included | No |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate dry weight | 90 lb / 41 kg |
| Warranty | 3-year limited consumer and commercial warranty |
