Kohler CH680-3041 Horizontal Engine, Replaces CH680-3020 for SALE
$ 1.650,00
Brand: Kohler EnginesBuy Kohler CH680-3041 Horizontal Engine, Replaces CH680-3020, 22.5 HP 674cc Command PRO V-Twin with electric start, 20-amp charging and 1-1/8″ x 4″ crankshaft. Replaces CH680-3020.
Kohler CH680-3041 Horizontal Engine, Replaces CH680-3020

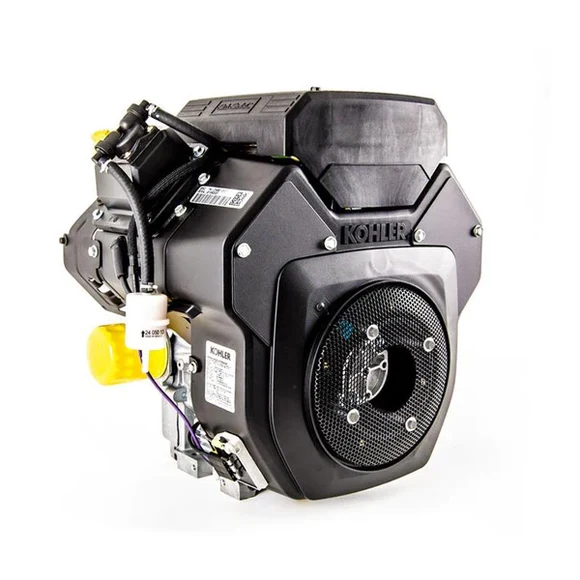

Kohler CH680-3041 Horizontal Engine, Replaces CH680-3020 is a powerful 22.5 HP, 674cc Command PRO V-Twin gasoline engine designed for demanding commercial and industrial applications. This horizontal-shaft engine combines OHV technology, cast-iron cylinder liners, full-pressure lubrication, and electric starting to provide dependable performance and long-term durability.
Key Features
- 22.5 HP Kohler Command PRO engine
- 674cc V-Twin gasoline engine
- Horizontal shaft configuration
- 1-1/8″ × 4″ crankshaft
- Electric start
- 20-amp charging system
- Two-barrel carburetor
- Fuel pump
- OHV design
- Cast-iron cylinder liners
- Full-pressure lubrication
- Full-flow oil filter
- Designed for commercial and industrial applications
- HG Makelim / Pro Chem specification
- Replaces CH680-3020
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH680-3041 |
| Replacement Model | CH680-3020 |
| Engine Series | Command PRO |
| Application / Specification | HG Makelim / Pro Chem |
| Engine Type | 4-Cycle Gasoline |
| Cylinder Configuration | V-Twin |
| Valve Configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Gross Power | 22.5 HP @ 3,600 RPM |
| Peak Torque | 36.8 ft-lb @ 2,800 RPM |
| Bore | 3.15″ / 80 mm |
| Stroke | 2.64″ / 67 mm |
| Compression Ratio | 8.5:1 |
| Cooling | Air Cooled |
| Shaft Orientation | Horizontal |
| Crankshaft Diameter | 1-1/8″ |
| Crankshaft Length | 4″ |
| Starting System | Electric Start |
| Charging System | 20 Amp |
| Carburetor | Two-Barrel |
| Fuel Pump | Yes |
| Lubrication | Full Pressure |
| Oil Filter | Full-Flow |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Cylinder Liners | Cast Iron |
| Fuel | Gasoline |
| Fuel Tank | Not Included |
| Muffler | Not Included |
| Engine Dimensions | 14″ × 17.7″ × 19″ |
| Dry Weight | Approximately 107 lb |
| Warranty | 3-Year Engine Manufacturer Warranty* |
