Si-Tex T-760 Compact Color Touch Screen 4kw Radar for SALE

Si-Tex T-760 Compact Color Touch Screen 4kw Radar

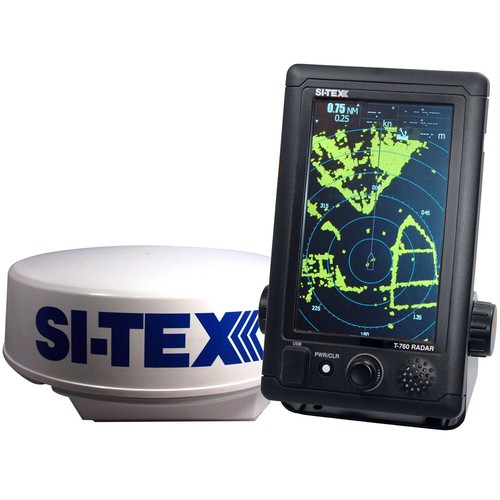

Navigate with greater confidence using the Si-Tex T-760 Compact Color Touchscreen 4kW Radar. Designed for recreational and commercial vessels with limited helm space, this radar system combines a vertically oriented 7-inch color touchscreen with a compact 18-inch radome antenna.

Its powerful 4kW transmitter provides reliable target detection at ranges from 1/16 nautical mile up to 24 nautical miles. Multi-speed antenna rotation—16, 27, 36, or 48 rpm—allows the system to maintain effective target detection at different vessel speeds and operating ranges.

The 800 × 480-pixel color display provides intuitive touchscreen operation supported by a rotary control dial. Navigators can select Relative Motion or True Motion and use Head-Up, North-Up, or Course-Up presentation modes to suit current operating conditions. Automatic and manual sea or rain-clutter controls help produce a clearer radar image during challenging weather.

When connected to a compatible AIS receiver, the T-760 can display and track up to 50 AIS targets. Its built-in MARPA functionality can track as many as 10 selected targets and display essential information such as bearing, range, course, speed, closest point of approach, and time to closest point of approach when the required navigation data is supplied.

With its compact construction, professional radar functions, and straightforward controls, the Si-Tex T-760 is an excellent navigation solution for fishing boats, sailboats, cruisers, and smaller commercial vessels. Specifications are based on the official Si-Tex T-760 product page and manufacturer’s product literature.

Key Features

• Powerful 4kW peak transmitter output
• Compact 18-inch radome antenna
• Maximum radar range of 24 nautical miles
• Minimum range scale of 1/16 nautical mile
• Vertically oriented 7-inch color touchscreen
• 800 × 480-pixel display resolution
• Touchscreen and rotary dial operation
• Selectable 16, 27, 36, and 48 rpm antenna speeds
• Tracks up to 50 targets with compatible AIS input
• MARPA tracking for up to 10 targets
• Relative Motion and True Motion operation
• Head-Up, North-Up, and Course-Up display modes
• Automatic or manual sea and rain-clutter control
• Adjustable target-trail settings
• CPA and TCPA target information and alarms
• Compatible with 12V and 24V DC electrical systems
